Brand: Panduit
|
SKU:
170165

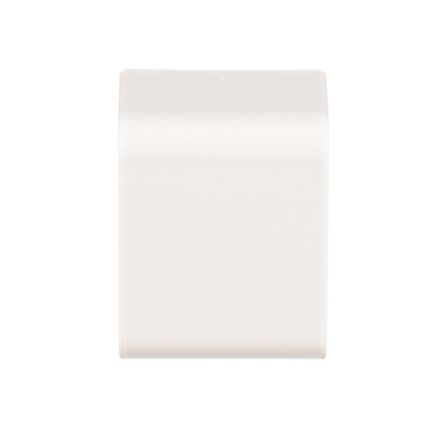

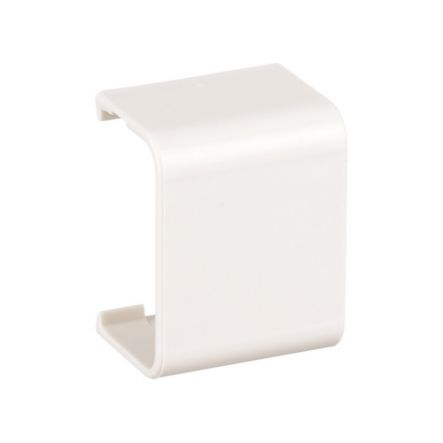

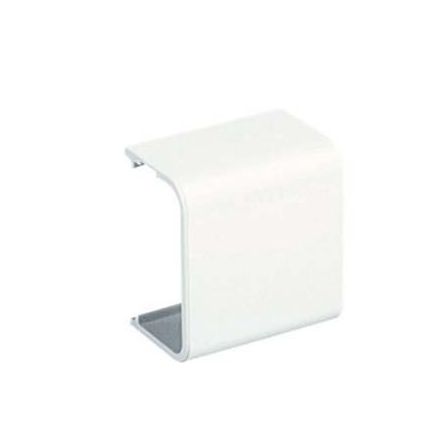

Panduit CFX10IW-X | LD10 / LDPH10 / LD2P10 Power Rated Coupler Fitting, Off White, Pack of 10
Regular price
$33.95
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CFX10IW-X | LD10 / LDPH10 / LD2P10 Power Rated Coupler Fitt...
Regular price
$33.95
Unit price
Description
Description
Panduit CFX10IW-X | Surface Raceway, LD10 / LDPH10 Coupler, Power Rated, Off-White
The coupler fitting is used to efficiently manage cable placement. It is designed to be used with LD10, and LDPH10 Surface Raceway and is a 1.24 inch length. It meets TIA/EIA Standards, is UL5A Listed, and is UL Compliant. It features a snap-on installation, is made of ABS plastic and is Off-White.
Panduit - CFX10IW-X - Features
- Multi-channel fittings for LD2P10 are designed to maintain the TIA/EIA-568-B and 569-B required minimum bend radius for high performance copper and fiber optic cabling systems
Specifications
Specifications
Panduit - CFX10IW-X - Product Categories
- Wire Routing, Management & Protection
- Single Channel Raceway
Panduit - CFX10IW-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CFX10IW-X |
| Item Description | Surface Raceway, LD10 / LDPH10 Coupler, Power Rated, Off-White |
| Product Type | Power Rated Fittings |
| Sub Brand | Pan-Way |
| Color | Off White |
| Fitting Type | Coupler |
| For Use With | LD10, LDPH10, LD2P10 |
| Material | ABS |
| Mount Method | Snap-On |
| Raceway Type | Power Rated |
| Standards Met | Ul94V-0, Ft4, Meets TIA/EIA Standards, UL5A Listed, UL Compliant. |
| Overall Height (In.) | 0.93 |
| Overall Height (mm) | 23.6 |
| Overall Length (In.) | 1.24 |
| Overall Length (mm) | 31.5 |
| Overall Width (In.) | 1.62 |
| Overall Width (mm) | 41.1 |
| Application | Surface Raceway Products Provide Maximum Flexibility for Routing, Protecting, and Concealing High-Performance Copper, Voice, Video, Fiber Optic, and Electrical Wiring within any Enterprise Environment to Provide an Innovative and Satisfying Office Environ |
Panduit - CFX10IW-X - Package Information
| UPC | 07498353074 |
|---|---|
| Standard Pkg. Qty. | 10 |
| Standard Package Volume (cf) | 0.0370 |
| Standard Ctn. Qty. | 50 |
| Standard Ctn. Volume (cf) | 0.1851 |
Panduit - CFX10IW-X - Videos
| Video 1 | Click to View |
|---|
