Panduit CGR630U | StructuredGround™ CGR630U Cabinet Retrofit Ground...
Description
Description

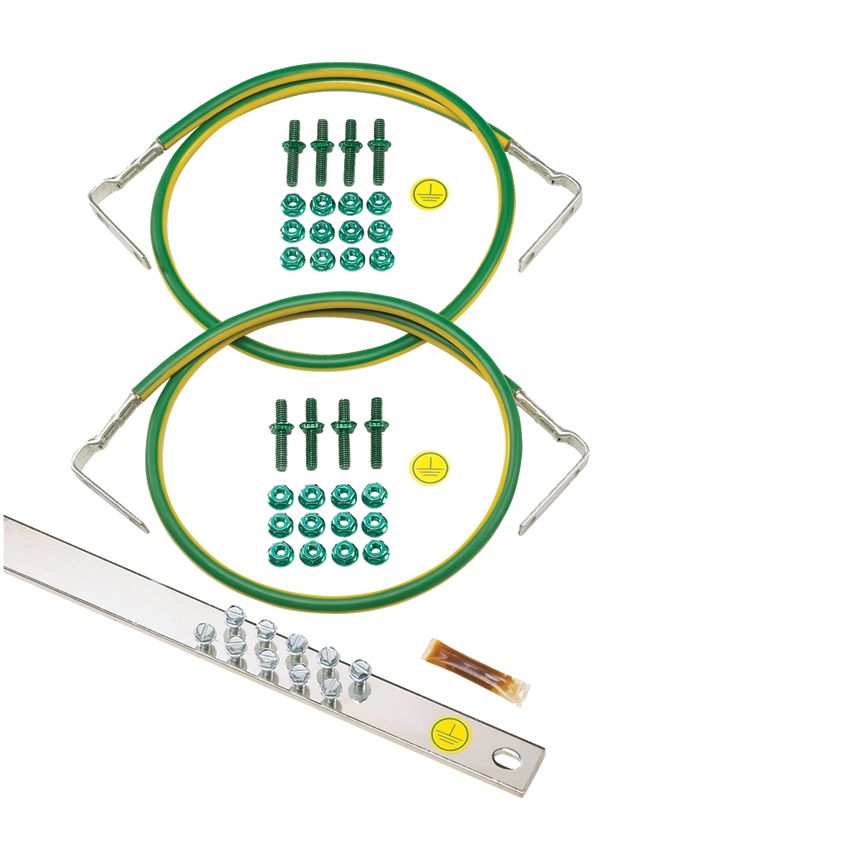

Retrofit grounding kit for installation on cabinets with threaded #12-24 or M6 rail fasteners and rail depth up to 30" (.75m); includes one RGRB19U grounding busbar kit and one CGJ630U front to back rail jumper kit.
Our easy-to-install kit fits cabinets with threaded rail fasteners up to 30" deep. With a grounding busbar and rail jumper included, it's a great solution for safeguarding your equipment.
Retrofit grounding kit for installation on cabinets with threaded #12-24 or M6 rail fasteners and rail depth up to 30" (.75m); includes one RGRB19U grounding busbar kit and one CGJ630U front to back rail jumper kit.
Panduit - CGR630U - Features
- Without pulling eye
- Provide a dedicated ground system to maintain system performance and protect network equipment when equipment is already installed
- Patent pending hardware incorporates paint piercing serrations to create a bond point between the cabinet rail, grounding busbar and lug; hardware never needs to be removed for new equipment installations
- Optimized for installation on 19" cabinets that meet EIA-310-D, with functioning equipment, and are deployed in the field
- Provides a complete system of matched components to save cost and labor
- Engineered to comply with US and International grounding requirements
Specifications
Specifications
Panduit - CGR630U - Specifications
| Application | Rack/Cabinet/Enclosure |
|---|---|
| Component | Grounding Kits |
| Connection Type | Compression |
| UNSPSC Code | 39121400 |
| Technical Information | EIA-310, UL 467, C22.2 No 41-13 |
| Sub Brand | StructuredGround™ |
| Standards Met | EIA-310, UL 467, C22.2 No 41-13 |
| Application | Telecom/Data Center |
| Product Type | Cabinet Retrofit Kit |
| Stud Hole Size (In.) | 0.25 |
| Stud Hole Size (mm) | 6.4 |
| For Use With | 19" Cabinets that meet EIA-310-D |
| Part Features | Includes one RGRB19U grounding busbar kit containing Grounding busbar; 19" (483mm) length; tin-plated; twenty holes arranged for flexibility in mounting with twenty #12-24 x 1/2" hex head screws installed; mounting hole sets have 5/8" (15.9mm) spacing; provided with two each #12-24 x 1/2", M6 x 12mm thread-forming screws, and two #12 flat washers for mounting. and one CGJ630U front to back rail jumper kit containing Two #6 AWG (16mm²) jumpers; factory terminated on both ends with 90° reverse bent lugs; provided with .16 oz. (5cc) of antioxidant, two grounding stickers, eight each #12-24 and M6 bonding studs and sixteen each #12-24 and M6 bonding nuts. |
| UPC | 07498365786 |
Panduit - CGR630U - Package Information
| UPC | 07498365786 |
|---|---|
| Standard Packaging Quantity | 1 |
| Standard Packaging Volume (cf) | 0.6654 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
