Panduit CGR630UB | Structured Ground Cabinet Retrofit
Regular price
$277.18
Unit price
Brand: Panduit
|
SKU:
356348
Regular price
$277.18
Unit price
Description
Description
Panduit CGR630UB | StructuredGround Cabinet Retrofit
Easily install our retrofit grounding kit on cabinets with cage nut rail fasteners and enjoy reliable grounding up to 30" deep. Protect your equipment and maintain system integrity.

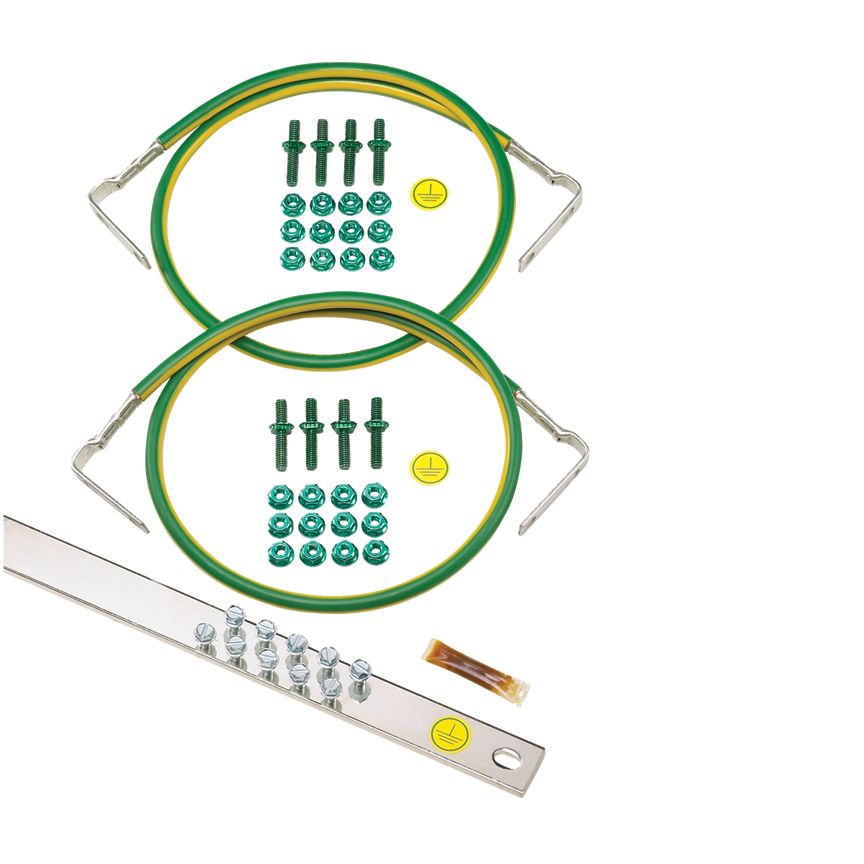

Retrofit grounding kit for installation on cabinets with cage nut rail fasteners and rail depth up to 30" (.75m); includes one RGRB19U grounding busbar kit and one CGJ630UB front to back rail jumper kit.
Panduit Grounding Kit, Retrofit, For Use With: 19 in Cabinets, 30 in D Rail
Panduit - CGR630UB - Features
- Retrofit grounding kit for installation on cabinets with cage nut rail fasteners and rail depth up to 30 in
- Provides a complete system of matched components to save cost and labor
- Factory terminated on both ends with 90 deg reverse bent lugs
- Provide a dedicated ground system to maintain system performance and protect network equipment when equipment is already installed
- Patent pending hardware incorporates paint piercing serrations to create a bond point between the cabinet rail, grounding busbar and lug; hardware never needs to be removed for new equipment installations
- Optimized for installation on 19" cabinets that meet EIA-310-D, with functioning equipment, and are deployed in the field
- Provides a complete system of matched components to save cost and labor
- Engineered to comply with US and International grounding requirements
Specifications
Specifications
Panduit - CGR630UB - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CGR630UB |
| Application | Rack/Cabinet/Enclosure |
| Component | Grounding Kits |
| Connection Type | Compression |
| UNSPSC Code | 39121400 |
| Sub Brand | StructuredGround |
| Standards Met | EIA-310, UL 467, C22.2 No 41-13 |
| Application | Telecom/Data Center |
| Product Type | Cabinet Retrofit Kit |
| Stud Hole Size (In.) | 0.25 |
| Stud Hole Size (mm) | 6.35 |
| For Use With | 19" Cabinets that meet EIA-310-D |
| Part Features | Includes one RGRB19U grounding busbar kit containing Grounding busbar; 19" (483mm) length; tin-plated; twenty holes arranged for flexibility in mounting with twenty #12-24 x 1/2" hex head screws installed; mounting hole sets have 5/8" (15.9mm) spacing; provided with two each #12-24 x 1/2", M6 x 12mm thread-forming screws, and two #12 flat washers for mounting. and one CGJ630UB front to back rail jumper kit containing Two #6 AWG (16mm²) jumpers; factory terminated on both ends with 90° reverse bent lugs; provided with .16 oz. (5cc) of antioxidant, two grounding stickers, eight cage nut bonding studs and 24 #12-24 bonding nuts. |
| UPC | 07498365799 |
Panduit - CGR630UB - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.42.9090 |
