Brand: Panduit
|
SKU:
319184

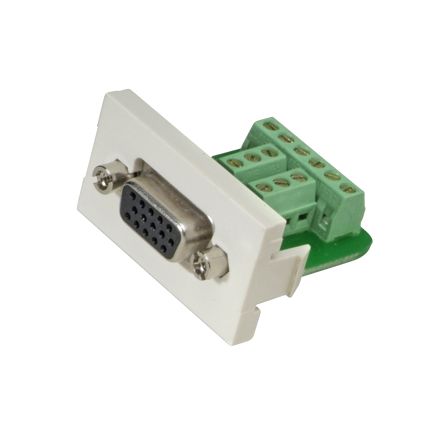

Panduit CHD15HDSCWHY 1/3 Insert, 15-Pin DB Connector Mounted Circuit Board Term on Site, White
Regular price
$39.17
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CHD15HDSCWHY 1/3 Insert, 15-Pin DB Connector Mounted Circui...
Regular price
$39.17
Unit price
Description
Description
Panduit CHD15HDSCWHY | Pan-Net VGA 1/3 Insert, 15 Pin DB, Circuit Board Mount, White
1/3 insert with one 15-pin DB connector mounted to a printed circuit board, terminates on site, SVGA capable, white.
Panduit - CHD15HDSCWHY - Features
- 1/3 insert with one 15-pin DB connector mounted to a printed circuit board; terminates on site; SVGA capable.
- Used in audio and video applications
- Compatible with classic and executive faceplate frames
Specifications
Specifications
Panduit - CHD15HDSCWHY - Product Categories
- Copper Systems
- Faceplate Frame System
Panduit - CHD15HDSCWHY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CHD15HDSCWHY |
| Item Description | Pan-Net VGA 1/3 Insert, 15 Pin DB, Circuit Board Mount, White |
| Note | Includes 15 HD VGA screw down connector |
| Sub Brand | Pan-Net |
| Product Type | VGA Insert |
| Material | ABS |
| Outlet Orientation | Flat |
| Color | White |
| Overall Width (In.) | 1.64 |
| Overall Width (mm) | 41.66 |
| Overall Depth (In.) | 0.7 |
| Overall Depth (mm) | 17.78 |
| Overall Height (In.) | 0.89 |
| Overall Height (mm) | 22.61 |
| Mount Method | Snap In |
| Standards Met | RoHS Compliant |
Panduit - CHD15HDSCWHY - Package Information
| UPC | 07498303445 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0051 |
| Standard. Ctn. Quantity | 10 |
| Standard. Ctn. Volume (cf) | 0.0509 |
