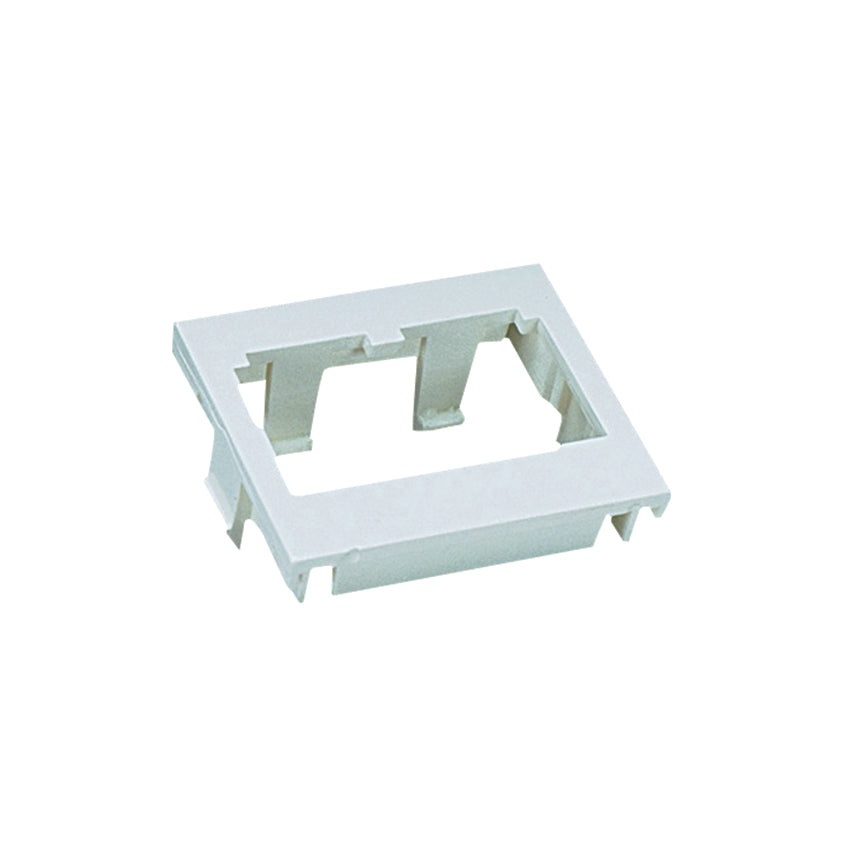

Panduit CHF2IW-X | Mini-Com, Modular Insert, Flat, 1/2 size, 2 port...
Description
Description
Add functionality to your faceplates for voice, data, or audio applications with our flat modular insert.
Two module space, 1/2-size flat insert accepts two Mini-Com Modules, Off White.
Faceplate frames shall be available in single and double gang versions and shall accept a variety of inserts. Executive design faceplate frames shall have a curved appearance and include labels and label covers. Classic design faceplate frames shall have a flush appearance and include color matched mounting screws. Inserts shall be available in sloped, sloped shuttered and flat versions and accept all modules for increased design flexibility. Modules shall be accessible from the front for easy moves, adds and changes.
Panduit PanNet Module Insert, Flat, Series: Classic Series, Snap-In Mounting, Mini-Com Module, 2 Module Position, 2 Ports, 0.093 in Depth, Off-White, 1.64 in W x 1.34 in H
Panduit - CHF2IW-X - Features
- Accept all Mini-Com modules for design flexibility
- Front access Mini-Com modules are accessible from the front for easy moves, adds and changes
- Identification executive Series faceplate frames can be clearly identified with labels classic Series faceplate frames can be clearly identified with optional adhesive labels sloped shuttered version available with label option, Mini-Com modules can be clearly identified with optional icons
- 2-module space, 1/2 size flat insert accepts two Mini-Com module
- Compatible with classic and executive faceplate frames
- Front releasable
- Accept Mini-Com modules for STP and UTP, fiber optic and audio/video, which snap-in and out for easy moves, adds and changes
- Compatible with classic and executive faceplate frames
- Front releasable
- Accept Mini-Com(TM) Modules for STP and UTP, fiber optic, and audio/video, which snap in and out for easy moves, adds, and changes
Specifications
Specifications
Panduit - CHF2IW-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CHF2IW-X |
| Color | White |
| Modular Size | 1/2 |
| UNSPSC Code | 43223300 |
| Sub Brand | Pan-Net |
| Product Type | Modular Insert |
| Material | ABS |
| Outlet Orientation | Flat |
| Color | Off White |
| Module Type | Mini-Com |
| Identification Type | Adhesive Label |
| Overall Depth (In.) | 0.093 |
| Overall Depth (mm) | 2.36 |
| Overall Width (In.) | 1.64 |
| Overall Width (mm) | 41.66 |
| Overall Height (In.) | 1.34 |
| Overall Height (mm) | 34.04 |
| Number of Ports | 2 |
| Mount Method | Snap In |
| Standards Met | RoHS Compliant |
| UPC | 07498361388 |
