Brand: Panduit
|
SKU:
175023

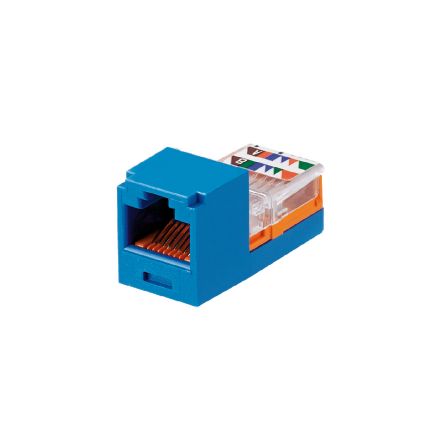

Panduit CJ588BUY | Mini-Com Module, Category 5e, UTP, 8-Position 8-Wire, Universal Wiring, Blue, Leadframe Style
Regular price
$14.15
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CJ588BUY | Mini-Com Module, Category 5e, UTP, 8-Position 8-...
Regular price
$14.15
Unit price
Description
Description

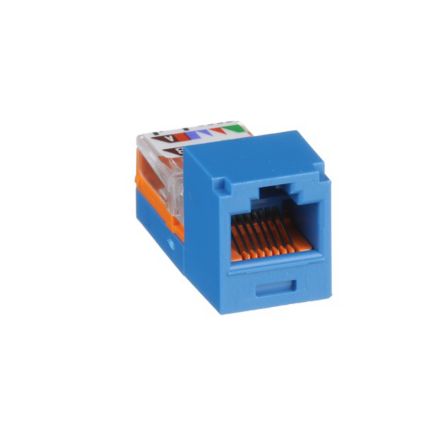

Panduit CJ588BUY | UTP RJ45 Cat 5e Leadframe Jack Module, Blue
The Mini-Com Cat 5e UTP RJ45 Leadframe Jack Module is designed to terminate 4-pair, 22-24 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is blue.
Panduit - CJ588BUY - Features
- Clear termination cap: Enables easy troubleshooting and eases conductor alignment during termination
- Modular: UTP jack modules snap in and out of all Mini-Com Faceplates, Modular Patch Panels and Surface Mount Boxes for easy moves, adds and changes
- True strain relief: Controls cable bend radius for long term installed performance
- RJ45 interface: Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords; backwards compatible
- Identification: Can be clearly identified with optional labels and icons for port identification
- Termination tools (optional): CJT-X termination tool ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components for maximum reliability
- Block out device (optional): Provides a simple and secure method to control access to data ports while not in use
Specifications
Specifications
Panduit - CJ588BUY - Product Categories
- Copper Systems
- Jack Modules
Panduit - CJ588BUY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CJ588BUY |
| Item Description | UTP RJ45 Cat 5e Leadframe Jack Module, Blue |
| Product Type | Jack Module |
| Performance Level | Category 5e |
| Connector Type | Jack Module - Standard |
| Termination Style | Leadframe |
| Body Material | ABS |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Mini-Com |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Sub Brand | Pan-Net |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 70 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Resistance Properties | Heat-Resistant |
| Color | Blue |
| Standards Met | Exceeds Channel and Component Requirements of ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D Standards at Swept Frequencies 1 to 100 MHz. Meets all Applicable ANSI/TIA-968-A Requirements, Meets Requirements of IEEE 802.3af and IEEE 802.3at for PoE Applications, Meets IEC 60603-7, UL 1863 Approved, RoHS Compliant |
| Overall Depth (In.) | 1.37 |
| Overall Depth (mm) | 34.8 |
| Overall Height (In.) | 0.72 |
| Overall Height (mm) | 18.3 |
| Overall Length (In.) | 1.37 |
| Overall Length (mm) | 34.8 |
| Overall Width (In.) | 0.62 |
| Overall Width (mm) | 15.7 |
Panduit - CJ588BUY - Package Information
| UPC | 07498303484 |
|---|---|
| Standard Pkg. Qty. | 1 |
| Standard Package Volume (cf) | 0.0032 |
| Standard Ctn. Qty. | 50 |
| Standard Ctn. Volume (cf) | 0.1604 |
