Brand: Panduit
|
SKU:
MCD-311339-PK

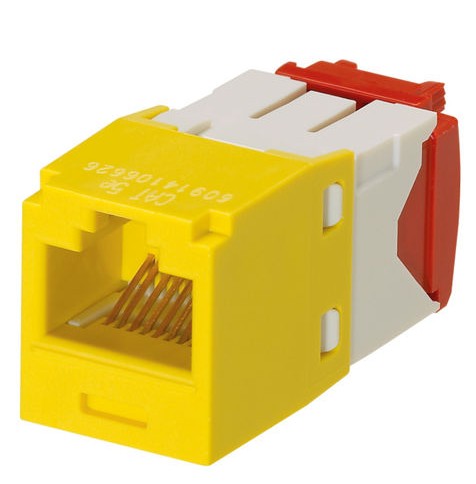

Panduit CJ5E88TGYL-24 | Jack Module, Cat 5E, Unshielded, T568A, T568B, IDC, 1 Port, Yellow
Regular price
$12.58
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CJ5E88TGYL-24 | Jack Module, Cat 5E, Unshielded, T568A, T56...
Regular price
$12.58
Unit price
Brand: Panduit
|
SKU:
MCD-311339-PK
Regular price
$12.58
Unit price
Shipping calculated at checkout.
Description
Description
Panduit CJ5E88TGYL-24 | Jack Module, Cat 5E, Unshielded, T568A, T568B, IDC, 1 Port, Yellow
The Mini-Com Cat 5e UTP RJ45 TG-Style Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is Yellow.
Specifications
Specifications
Panduit - CJ5E88TGYL-24 - Product Categories
- Network Cabling Infrastructure
- Copper Cabling Infrastructure
- Copper Connectivity
- Copper Jacks
Panduit - CJ5E88TGYL-24 - Specifications
| Manufacturer Name | Panduit |
|---|---|
| Manufacturer Part Number | CJ5E88TGYL-24 |
| Item Description | Jack Module, Cat 5E, Unshielded, T568A, T568B, IDC, 1 Port, Yellow |
| Application | Unshielded |
| Body Material | Polycarbonate |
| Brand Name | Mini-Com TX-5E Jack |
| Category | Cat 5E |
| Color | Yellow |
| Configuration | 8-Wire RJ-45 |
| Connection Type | 8P8W RJ-45 |
| Connection | Snap-in |
| Contact Finish | Gold-Plated |
| Contact Material | Phosphor Bronze |
| Depth | 1.5 in. |
| Height | 0.71 in. |
| Length | 1.5 in. |
| Material | Polycarbonate |
| Maximum Operating Temperature | 167 Degrees Fahrenheit |
| Module Type | Modular UTP Jack |
| Mounting | Faceplate, Surface Mount, Panel |
| Number of Ports | 1 Port |
| Operating Temperature - Minimum | 14 Degrees Fahrenheit |
| Product Type | Jack Module |
| Shield Type | Unshielded |
| Special Rating | IEEE; UL; IEC |
| Suitable For Use With | Tx5500 4-Pair 26 to 22 AWG Utp Copper Cabling System |
| Temperature Rating | -10 to +75 C |
| Termination | IDC |
| Width | 0.62 in. |
| Wiring | T568A; T568B |
