Brand: Panduit
|
SKU:
540898

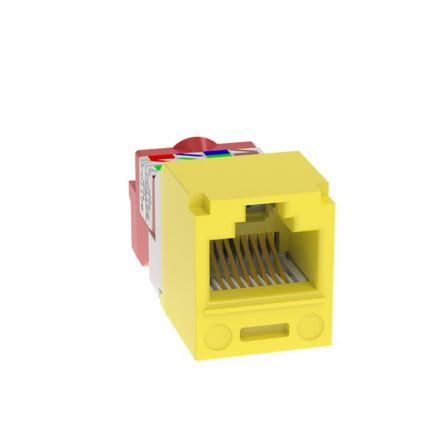

Panduit CJ5E88TYL | Mini-Com Module, Category 5e, UTP, 8-Position 8-Wire, Universal Wiring, Yellow, T Style
Regular price
$17.00
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CJ5E88TYL | Mini-Com Module, Category 5e, UTP, 8-Position 8...
Regular price
$17.00
Unit price
Brand: Panduit
|
SKU:
540898
Regular price
$17.00
Unit price
Description
Description
Panduit CJ5E88TYL | Mini-Com UTP RJ45 Cat 5e TP-Style Jack Module, Yellow
The Mini-Com Cat 5e UTP RJ45 TP-Style Jack Module is designed to terminate 4-pair, 22-24 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is Yellow.
Specifications
Specifications
Panduit - CJ5E88TYL - Product Categories
- Copper Systems
- Jack Modules
Panduit - CJ5E88TYL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CJ5E88TYL |
| Item Description | Mini-Com UTP RJ45 Cat 5e TP-Style Jack Module, Yellow |
| Product Type | Jack Module |
| Performance Level | Category 5e |
| Connector Type | Jack Module - Standard |
| Termination Style | TP Style |
| Body Material | ABS |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Mini-Com |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Sub Brand | Pan-Net |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 70 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Resistance Properties | Heat-Resistant |
| Color | Yellow |
| Standards Met | Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant. |
| Overall Depth (In.) | 1.43 |
| Overall Depth (mm) | 36.3 |
| Overall Height (In.) | 0.71 |
| Overall Height (mm) | 18 |
| Overall Length (In.) | 1.43 |
| Overall Length (mm) | 36.3 |
| Overall Width (In.) | 0.62 |
| Overall Width (mm) | 15.7 |
Panduit - CJ5E88TYL - Package Information
| UPC | 07498377142 |
|---|---|
| Standard Pkg. Qty. | 1 |
| Standard Package Volume (cf) | 0.0032 |
| Standard Ctn. Qty. | 50 |
| Standard Ctn. Volume (cf) | 0.1604 |
