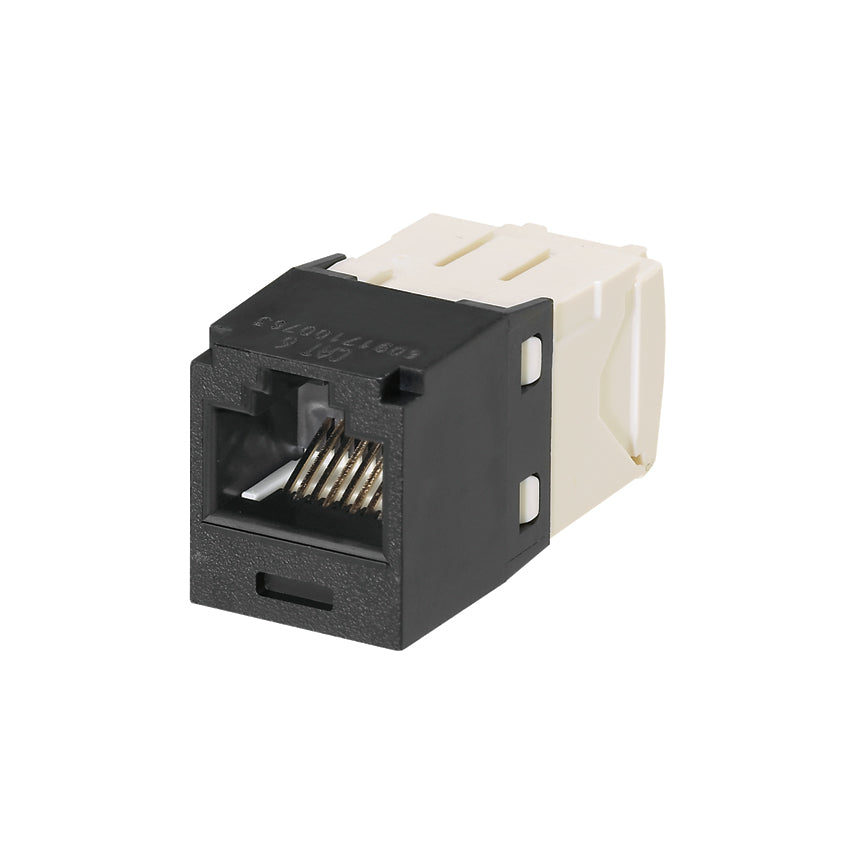

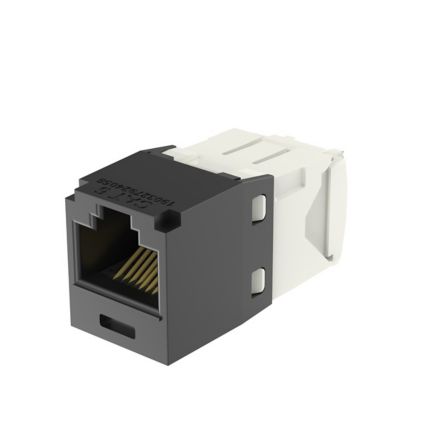

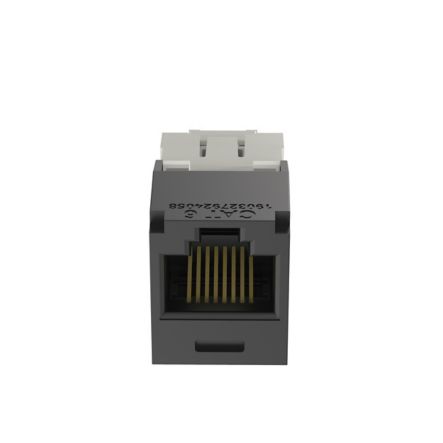

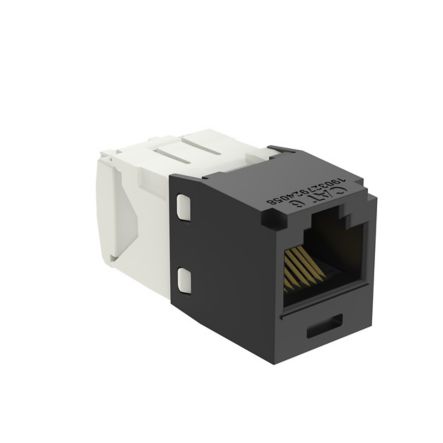

Panduit CJ688TGBL-24 | Mini-Com UTP RJ45 Cat 6 TG Jack Module, Black
Description
Description
Our jack module offers a toolless solution for reliable network installations. Our factory-tested modules deliver performance that exceeds standard industry requirements.
The Mini-Com Cat 6 UTP RJ45 TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a terminatio n tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is black and includes 24 per package.
Panduit TX6 PLUS UTP Jack Module, 8-Position 8-Wire RJ45 Universal TG Style, Cat6/Mini-Com Module, Surface Mounting, 1 Ports, ABS/Polycarbonate, Black, 0.71 in H x 0.62 in W x 1.5 in D Dimensions
Panduit - CJ688TGBL-24 - Features
- Confidence that each jack module will deliver the critical electrical performance requirements
- Enhanced Giga-TX technology optimizes performance by eliminating conductor untwist and reduces installation time and expense
- UTP jack modules snap in and out of all Mini-Com faceplates, modular patch panels and surface mount boxes for easy moves, adds, and changes
- Marked with quality control number for future traceability
- Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords, backwards compatible
- Can be clearly identified with optional labels and icons for port identification
- Side opening allows cable to be terminated to the right or left side of the jack module, ideal for installations that have minimal depth that may not allow standard bend radius practices to be accommodated
- EGJT termination tool ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components for maximum reliability, TGJT termination tool ideal for high volume installations
- Provides a simple and secure method to control access to data ports while not in use
- Integrated spring shuttered door keeps out dust and debris of unmated RJ45 jack modules automatically
- 100% performance tested: Confidence that each jack module will deliver the critical electrical performance requirements
- Modular: UTP jack modules snap in and out of all Mini-Com Faceplates, Modular Patch Panels and Surface Mount Boxes for easy moves, a dds, and changes
- Individually serialized: Marked with quality control number for future traceability
- RJ45 interface: Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords; backwards compatible
- Identificatio: Can be clearly identified with optional labels and icons for port identification
- Angle termination version available: Side opening allows cable to be terminated to the right or left side of the jack module; ideal for installations that have minimal d epth that may not allow standard bend radius practices to be accommodated
- Termination tools (optional): EGJT termination tool ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components fo r maximum reliability; TGJT termination tool ideal for high volume installations
- Block out device (optional): Provides a simple and secure method to control access to data ports while not in use
- Shuttered version (optional): Integrated spring shuttered door keeps out dust and debris of unmated RJ45 jack modules automatically
Specifications
Specifications
Panduit - CJ688TGBL-24 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CJ688TGBL-24 |
| Category | Category 6 |
| Color | Black |
| Number Of Ports | 1 |
| Termination | Idc |
| Wiring | A/B Universal |
| UNSPSC Code | 39121444 |
| Product Type | Jack Module |
| Performance Level | Category 6 |
| Connector Type | Jack Module - Standard |
| Termination Style | TG Style |
| Body Material | Polycarbonate |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Mini-Com |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Sub Brand | Pan-Net |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 75 |
| Maximum Storage Temperature (°F) | 167 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Resistance Properties | Heat-Resistant |
| Color | Black |
| Standards Met | Exceeds component and channel requirements of ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards at swept frequencies 1 to 250 MHz for Supporting 10GBASE-T Transmission Over Twisted Pair Cabling Systems in a 4-Connector Configuration up to 100 meters at Swept Frequencies 1 to 250 MHz, Exceeds Component Requirements of ANSI/TIA-568-C.2 Categor |
| UPC | 07498301076 |
