Brand: Panduit
|
SKU:
311326
Panduit CJ688TGOR | Mini-Com Module, Category 6, UTP, 8-Position 8-Wire, Universal Wiring, Orange, TG Style
Regular price
$18.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CJ688TGOR | Mini-Com Module, Category 6, UTP, 8-Position 8-...
Regular price
$18.45
Unit price
Description
Description

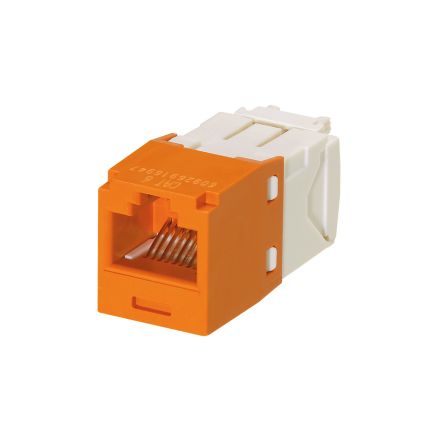

Panduit CJ688TGOR | Mini-Com UTP RJ45 Cat 6 TG Jack Module, Orange
The Mini-Com Cat 6 UTP RJ45 TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is orange.
Panduit - CJ688TGOR - Features
- 100% performance tested: Confidence that each jack module will deliver the critical electrical performance requirements
- Modular: UTP jack modules snap in and out of all Mini-Com Faceplates, Modular Patch Panels and Surface Mount Boxes for easy moves, a dds, and changes
- Individually serialized: Marked with quality control number for future traceability
- RJ45 interface: Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords; backwards compatible
- Identificatio: Can be clearly identified with optional labels and icons for port identification
- Angle termination version available: Side opening allows cable to be terminated to the right or left side of the jack module; ideal for installations that have minimal d epth that may not allow standard bend radius practices to be accommodated
- Termination tools (optional): EGJT termination tool ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components fo r maximum reliability; TGJT termination tool ideal for high volume installations
- Block out device (optional): Provides a simple and secure method to control access to data ports while not in use
- Shuttered version (optional): Integrated spring shuttered door keeps out dust and debris of unmated RJ45 jack modules automatically
Specifications
Specifications
Panduit - CJ688TGOR - Product Categories
- Copper Systems
- Jack Modules
Panduit - CJ688TGOR - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CJ688TGOR |
| Item Description | Mini-Com UTP RJ45 Cat 6 TG Jack Module, Orange |
| Product Type | Jack Module |
| Performance Level | Category 6 |
| Connector Type | Jack Module - Standard |
| Termination Style | TG Style |
| Body Material | Polycarbonate |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Mini-Com |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Sub Brand | Pan-Net |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 75 |
| Maximum Storage Temperature (°F) | 167 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Resistance Properties | Heat-Resistant |
| Color | Orange |
| Standards Met | Exceeds Channel Requirements of ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA Standards for Supporting 10GBASE-T Transmission Over Twisted Pair Cabling Systems in a 4-Connector Configuration up to 100 meters at Swept Frequencies 1 to 500 MHz, Exceeds Component Requirements of ANSI/TIA-568-C.2 Category 6Aand ISO 11801 Class EA Standards at Swept frequencies 1 to 500 MHz, Meets ANSI/TIA-1096-A, Meets IEC 60603-7 and IEC 60512-99-001, Rated for 2500 Cycles with IEEE 802.3af / 802.3at and Proposed 802.3bt Type 3 and Type 4, UL 1863 and UL 2043, RoHS Compliant |
| Overall Depth (In.) | 1.5 |
| Overall Depth (mm) | 38.1 |
| Overall Height (In.) | 0.71 |
| Overall Height (mm) | 18 |
| Overall Length (In.) | 1.5 |
| Overall Length (mm) | 38.1 |
| Overall Width (In.) | 0.62 |
| Overall Width (mm) | 15.7 |
Panduit - CJ688TGOR - Package Information
| UPC | 07498339551 |
|---|---|
| Standard Pkg. Qty. | 1 |
| Standard Package Volume (cf) | 0.0032 |
| Standard Ctn. Qty. | 50 |
| Standard Ctn. Volume (cf) | 0.1604 |
Panduit - CJ688TGOR - Videos
| Video 1 | Click to View |
|---|
