Brand: Panduit
|
SKU:
262259
Panduit CJ688TPBL | Mini-Com Module, Category 6, UTP, 8-Position 8-Wire, Universal Wiring, Black, TP Style
Regular price
$22.66
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CJ688TPBL | Mini-Com Module, Category 6, UTP, 8-Position 8-...
Regular price
$22.66
Unit price
Description
Description

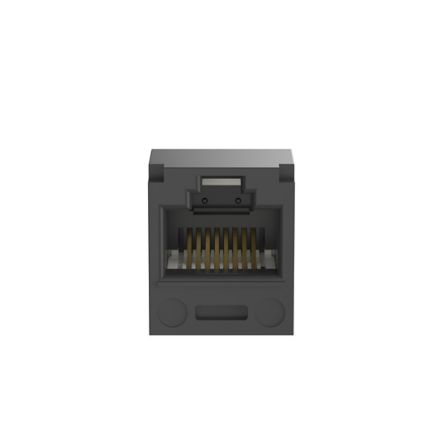

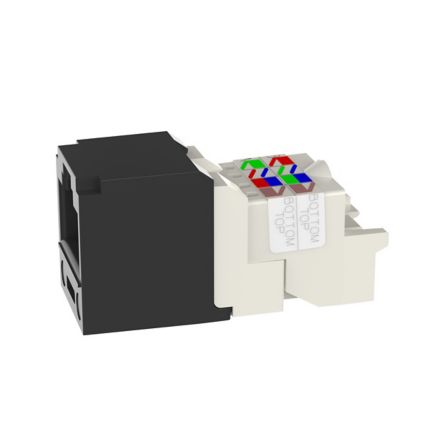

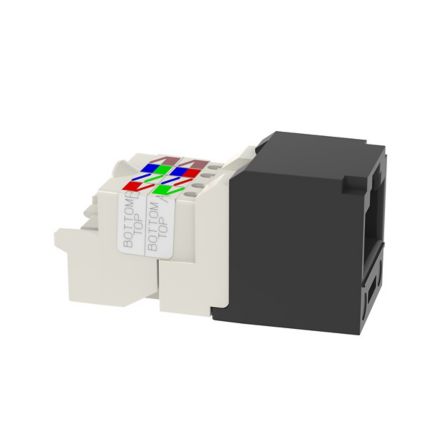

Panduit CJ688TPBL | Mini-Com UTP RJ45 Cat 6 TP Jack Module, Black
The Mini-Com Cat 6 UTP RJ45 TP Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is black.
Panduit - CJ688TPBL - Features
- Mini-Com TX-6 Unshielded Module: Category 6 performance: 8 position, 8 wire universal module. Termination cap is color coded for T568A and B wiring schemes. Color: Black, Terminates 4-pair 24/22 AWG 100 ohm unshielded twisted pair cable
Specifications
Specifications
Panduit - CJ688TPBL - Product Categories
- Copper Systems
- Jack Modules
Panduit - CJ688TPBL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CJ688TPBL |
| Item Description | Mini-Com UTP RJ45 Cat 6 TP Jack Module, Black |
| Product Type | Jack Module |
| Performance Level | Category 6 |
| Connector Type | Jack Module - Standard |
| Termination Style | TP Style |
| Body Material | ABS |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Mini-Com |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Sub Brand | Pan-Net |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 70 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Resistance Properties | Heat-Resistant |
| Color | Black |
| Standards Met | Exceeds Channel and Component Requirements of ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E Standards at Swept Frequencies 1 to 250 MHz, Meets ANSI/TIA-1096-A, Rated for 2500 Cycles with IEEE 802.3af / 802.3at and Proposed 802.3bt Type 3 and Type 4, Meets IEC 60603-7, UL 1863 Approved and RoHS Compliant |
| Overall Depth (In.) | 1.43 |
| Overall Depth (mm) | 36.3 |
| Overall Height (In.) | 0.71 |
| Overall Height (mm) | 18 |
| Overall Length (In.) | 1.43 |
| Overall Length (mm) | 36.3 |
| Overall Width (In.) | 0.63 |
| Overall Width (mm) | 16 |
Panduit - CJ688TPBL - Package Information
| UPC | 07498399269 |
|---|---|
| Standard Pkg. Qty. | 1 |
| Standard Package Volume (cf) | 0.0032 |
| Standard Ctn. Qty. | 50 |
| Standard Ctn. Volume (cf) | 0.1604 |
