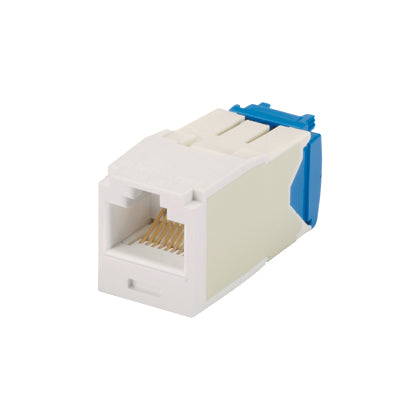

Panduit CJ6X88TGWH-C | Jack Module | UPC - 07498320458
Regular price
$2,250.86
Unit price
Brand: Panduit
|
SKU:
323290-100PK
Regular price
$2,250.86
Unit price
Description
Description
Panduit TX6A 10Gig UTP Jack Module, 8-Position 8-Wire RJ45 Universal TG Style, Cat6a/Mini-Com Module, 1 Ports, ABS/Polycarbonate, White, 0.71 in H x 0.63 in W x 1.5 in D Dimensions
Features + Benefits
- Compatible with components of the TX6A and TX6A-SD 10 Gig UTP copper cabling system with MaTriX technology (100 and 70 m solutions) for increased design flexibility
- Innovative MaTriX split foil technology provides superior alien crosstalk performance enabling high density applications (48-ports, 1 RU)
- Confidence that each jack module will deliver the critical electrical performance requirements
- Marked with quality control number for future traceability
- Integrated spring shuttered door keeps out dust and debris of unmated RJ45 jack modules automatically
- Side opening allows cable to be terminated to the right or left side of the jack module, ideal for installations that have minimal depth that may not allow standard bend radius practices to be accommodated
- EGJT termination tool ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components for maximum reliability, TGJT termination tool ideal for high volume installations
- Provides a simple and secure method to control access to data ports while not in use
Panduit CJ6X88TGWH-C | Jack Module | UPC - 07498320458 Key Specs
| Product Type | Jack Module |
| Performance Level | Category 6A |
| Connector Type | Jack Module |
| Termination Style | TG Style |
| Body Material | ABS |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Mini-Com |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Sub Brand | Pan-Net |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 70 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Resistance Properties | Heat-Resistant |
Panduit CJ6X88TGWH-C | Jack Module | UPC - 07498320458 Data Sheets
| Specification Sheets | Mini-Com TX6A 10Gig UTP Jack Modules: COSP231--WW-RUS | Download and View |
| Specification Sheets | Mini-Com TX6A 10Gig UTP Jack Modules: COSP231--WW-ITA | Download and View |
| System Warranty | Category 6A Headroom Platform: COFL20--WW-ENG | Download and View |
Panduit CJ6X88TGWH-C | Jack Module | UPC - 07498320458 Environmental Information
| Panduit's RoHS Statement | Download and View |
