Brand: Panduit | SKU: 520182

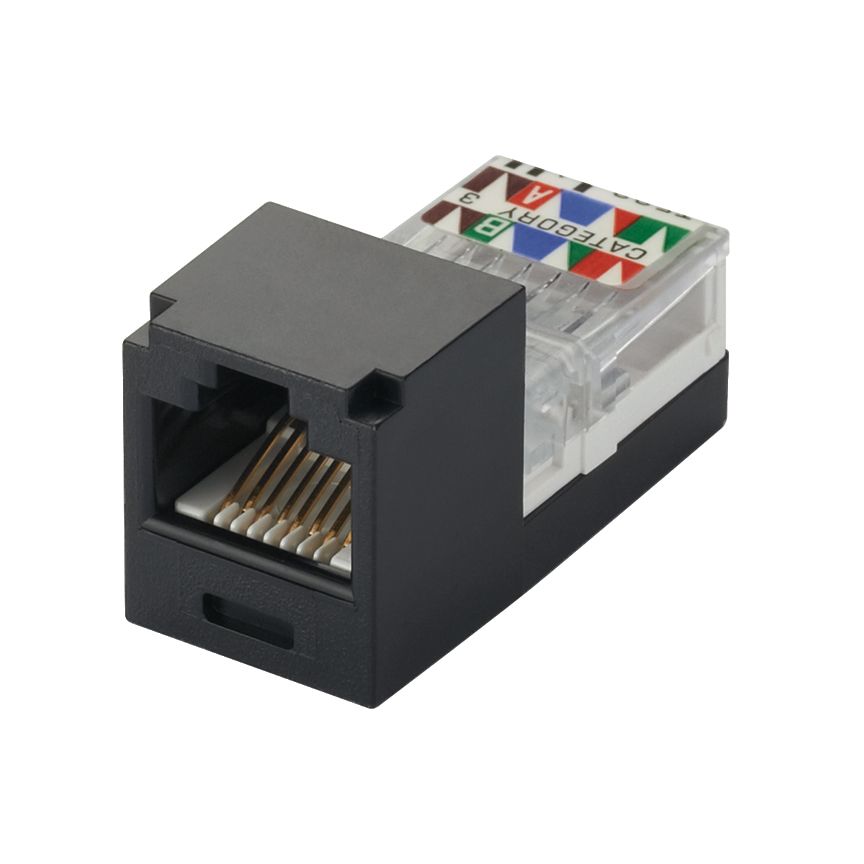

Panduit CJ88BLY | Pan-Net Jack Module

Name: Panduit CJ88BLY | Pan-Net Jack Module
Brand: Anixter
SKU: 520182
Price: 9.28 USD
Availability: InStock

$9.28

Description

Category 3, 8-position, 8-wire universal module. Black.

Panduit CJ88BLY Mini-com Mini-jack Module, Category 3, Utp, 8-position 8-wire, Universal Wiring, Black, Rohs Compliant

Brand Name	Panduit
Manufacturer Part Number	CJ88BLY
Item Description	Pan-Net Jack Module
Product Type	Jack Module
Performance Level	Category 3
Connector Type	Jack Module
Termination Style	Leadframe
Body Material	ABS
Contact Material	Plated Phosphor Bronze
Module Type	Mini-Com
Wiring Scheme	T568A/T568B
Shield Type	Unshielded (UTP)
Sub Brand	Pan-Net
Maximum Operating Temperature (°C)	65
Maximum Operating Temperature (°F)	149
Minimum Operating Temperature (°C)	-10
Minimum Operating Temperature (°F)	14
Maximum Storage Temperature (°C)	70
Maximum Storage Temperature (°F)	158
Minimum Storage Temperature (°C)	-40
Minimum Storage Temperature (°F)	-40
Color	Black
Standards Met	Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
Overall Depth (In.)	1.37
Overall Depth (mm)	34.8
Overall Height (In.)	0.72
Overall Height (mm)	18.3
Overall Length (In.)	1.37
Overall Length (mm)	34.8
Overall Width (In.)	0.61
Overall Width (mm)	15.5

Video 1	Click to View
