Panduit CJE6X88TGIW | Mini-Com UTP RJ45 Cat 6A TG Jack Module Corro...
Description
Description

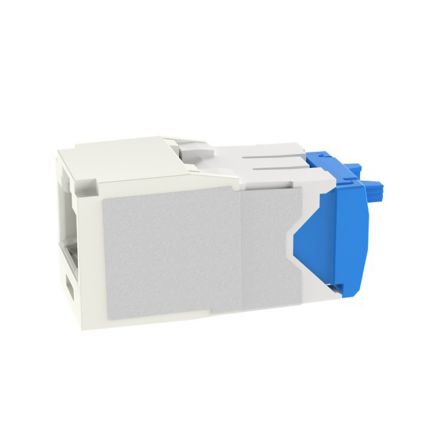

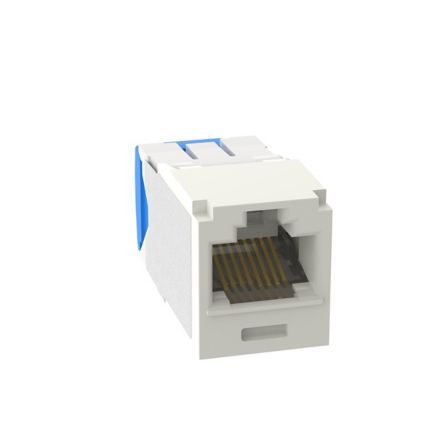

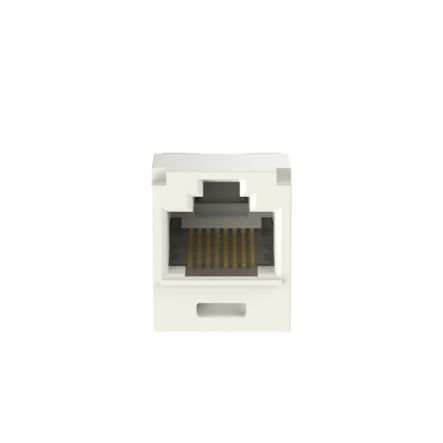

The Mini-Com Cat 6A UTP RJ45 Corrosion Resistant TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates. A polymer based gel protects electrical contacts and internal components by reducing the ingress of moisture and other corrosive elements such as salt, providing improved long term performance.
Panduit CJE6X88TGIW | Mini-Com Cat 6A Tg Jack Corrosion Resistant, White
Panduit - CJE6X88TGIW - Features
- The Mini-Com Cat 6A UTP RJ45 TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a terminati on tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates.
Specifications
Specifications
Panduit - CJE6X88TGIW - Product Categories
- Copper Systems
- Jack Modules
Panduit - CJE6X88TGIW - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CJE6X88TGIW |
| Item Description | Mini-Com UTP RJ45 Cat 6A TG Jack Module Corrosion Resistant, Off White |
| Product Type | Jack Module |
| Performance Level | Category 6A |
| Connector Type | Jack Module - Corrosion Resistant |
| Termination Style | TG Style |
| Body Material | Polycarbonate |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Mini-Com |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Sub Brand | Pan-Net |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 75 |
| Maximum Storage Temperature (°F) | 167 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Resistance Properties | Corrosion-Resistant |
| Color | Off White |
| Standards Met | Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant. |
| Overall Depth (In.) | 1.5 |
| Overall Depth (mm) | 38.1 |
| Overall Height (In.) | 0.72 |
| Overall Height (mm) | 18.3 |
| Overall Length (In.) | 1.5 |
| Overall Length (mm) | 38.1 |
| Overall Width (In.) | 16.3 |
| Overall Width (mm) | 16.3 |
Panduit - CJE6X88TGIW - Package Information
| UPC | 61305680111 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0032 |
| Standard Ctn. Quantity | 50 |
| Standard Ctn. Volume (cf) | 0.1605 |
