Brand: Panduit
|
SKU:
CJLRCAPBU-X

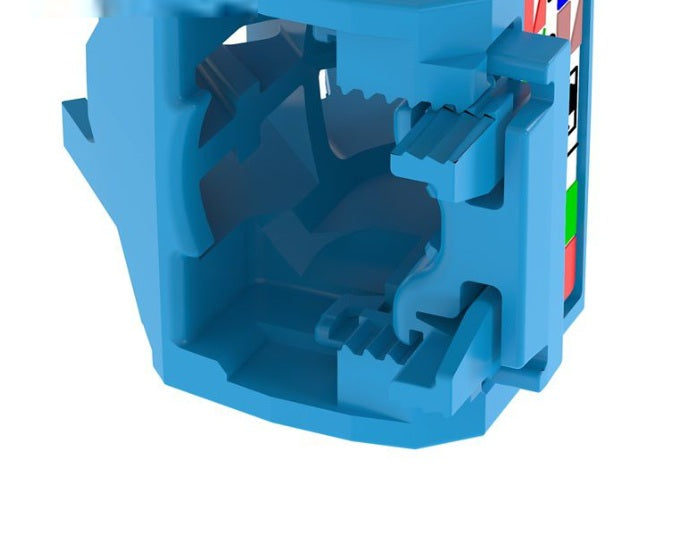

Panduit CJLRCAPBU-X 45° Angled Wire Cap for Cat 6A UTP TG Jack 10 pack
Regular price
$15.42
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CJLRCAPBU-X 45° Angled Wire Cap for Cat 6A UTP TG Jack 10 pack
Regular price
$15.42
Unit price
Description
Description
| Product Type | Wire Cap |
| Performance Level | Category 6A |
| Connector Type | Jack Accessory |
| Termination Style | TG Style |
| Body Material | Polycarbonate |
| Module Type | Mini-Com® |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Sub Brand | Pan-Net® |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 75 |
| Maximum Storage Temperature (°F) | 167 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Color | Blue |
| Standards Met | Exceeds Channel and Component Requirements of ANSI/TIA-568-C.2 and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and proposed 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant |
| Overall Length (In.) | 0.96 |
| Overall Length (mm) | 24.4 |
| Overall Width (In.) | 0.61 |
| Overall Width (mm) | 15.5 |
| Overall Depth (In.) | 0.96 |
| Overall Depth (mm) | 24.4 |
| Overall Height (In.) | 0.63 |
| Overall Height (mm) | 16 |
