Panduit CJLRCAPIW-X | 45° Angled Wire Cap For Cat 6 Utp Tg Jack
Regular price
$19.98
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CJLRCAPIW-X | 45° Angled Wire Cap For Cat 6 Utp Tg Jack
Regular price
$19.98
Unit price
Description
Description

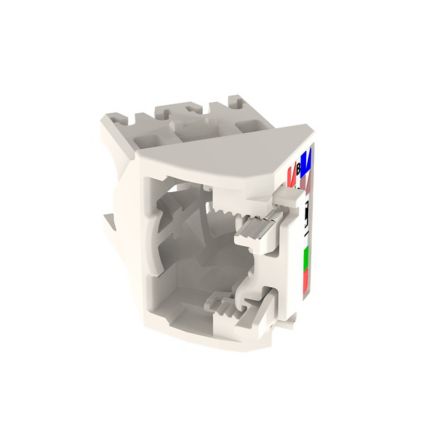

Panduit CJLRCAPIW-X | 45° Angled Wire Cap For Cat 6 Utp Tg Jack

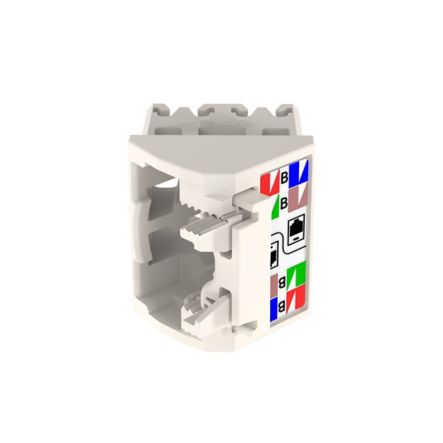

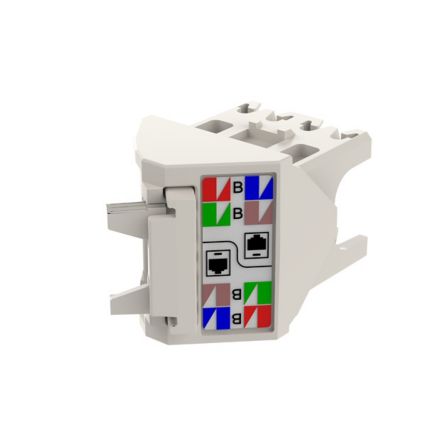

Panduit CJLRCAPIW-X Category 6 45 degree angled left/right TG wire cap provides improved cable routing to jacks in confined spaces. For use with the TGSJT Termination Tool.
Angled TG wire cap, Cat. 6, 10 pk., off white
Specifications
Specifications
Panduit - CJLRCAPIW-X - Product Categories
- Copper Systems
- Jack Modules
Panduit - CJLRCAPIW-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CJLRCAPIW-X |
| Item Description | 45° Angled Wire Cap For Cat 6 Utp Tg Jack |
| Product Type | Jack Accessory |
| Performance Level | Category 6 |
| Connector Type | Jack Accessory |
| Termination Style | TG Style |
| Body Material | Polycarbonate |
| Module Type | Mini-Com |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Sub Brand | Pan-Net |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 75 |
| Maximum Storage Temperature (°F) | 167 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Color | Off White |
| Standards Met | Exceeds Channel and Component Requirements of ANSI/TIA-568-C.2 and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and proposed 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant |
| Overall Depth (In.) | 0.96 |
| Overall Depth (mm) | 24.4 |
| Overall Height (In.) | 0.63 |
| Overall Height (mm) | 16 |
| Overall Length (In.) | 0.96 |
| Overall Length (mm) | 24.4 |
| Overall Width (In.) | 0.61 |
| Overall Width (mm) | 15.5 |
Panduit - CJLRCAPIW-X - Package Information
| UPC | 61305625634 |
|---|---|
| Standard Package Quantity | 10 |
| Standard Package Volume (cf) | 0.0077 |
| Standard Ctn. Quantity | 100 |
| Standard Ctn. Volume (cf) | 0.0771 |
Panduit - CJLRCAPIW-X - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
