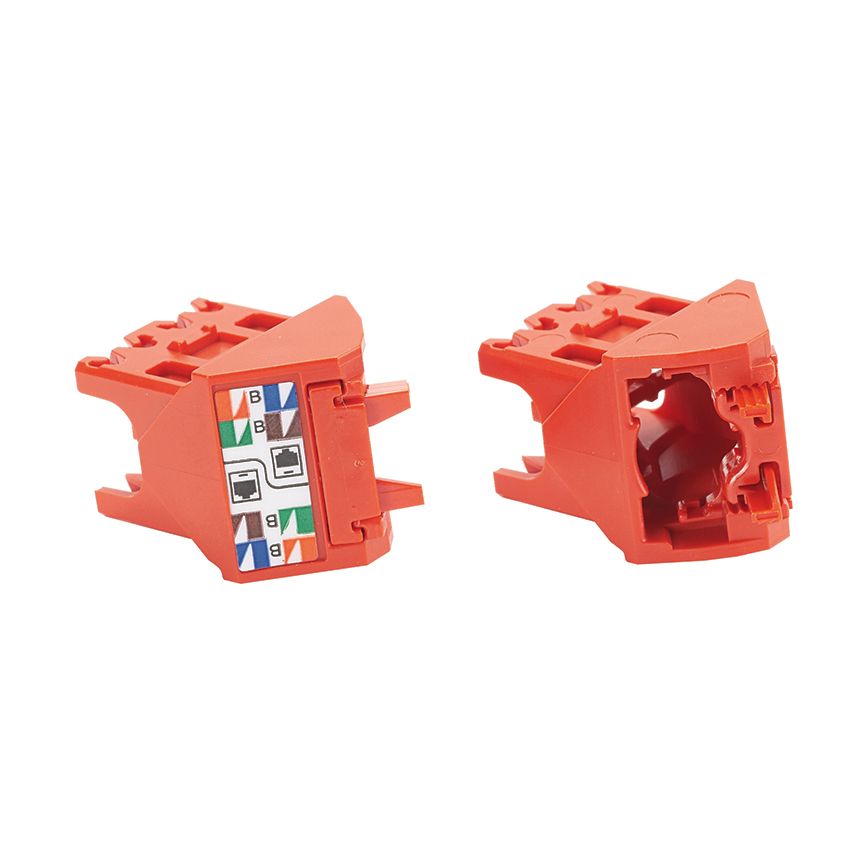

Panduit CJLRCAPRD-C | 45° Left/Right Angled Wire Cap for TX5e™ Mini-Com® UTP Jack Module
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CJLRCAPRD-C | 45° Left/Right Angled Wire Cap for TX5e™ Mini...
Description
Description
45 deg angled wire caps, when mated with compatible UTP jack modules, shall provide improved cable routing to jacks in confined spaces. Angled wire caps shall terminate 4- pair, 22 to 26 AWG, 100 ohm unshielded twisted pair cable and shall use a forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The wire caps shall be color coded to designate performance category and shall include a universal label coded for T568B wiring schemes.
Panduit Mini-Com PanNet TX5e Wire Cap, 45 deg Angled Left/Right Unshielded, Giga-TX (TG Style)/UTP Connector, Copper Solid/Stranded Cable, 26 to 22 AWG Cable, Category: Cat 5e, Polycarbonate, Red, 0.61 in H x 0.63 in W x 0.96 in D Dimensions
Easily connect Cat 5e cables in tight spaces with our angled wire cap, perfect for data center racks or other crowded applications.
Panduit - CJLRCAPRD-C - Features
- Minimize waste
- Optimize cable management
- Speed deployment, improve flexibility and manageability
- Reversible direction design
- Angled wire caps can easily be applied to new or already installed compatible jacks to gain routing advantages without needing to purchase new jacks
Specifications
Specifications
Panduit - CJLRCAPRD-C - Specifications
| Product Type | Wire Cap |
|---|---|
| Performance Level | Category 5e |
| Connector Type | Jack Accessory |
| Termination Style | TG Style |
| Body Material | Polycarbonate |
| Module Type | Mini-Com® |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Sub Brand | Pan-Net® |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 75 |
| Maximum Storage Temperature (°F) | 167 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Color | Red |
| Standards Met | Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant. |
| Overall Length (In.) | 0.96 |
| Overall Length (mm) | 24.4 |
| UPC | 61305625426 |
Panduit - CJLRCAPRD-C - Package Information
| UPC | 61305625426 |
|---|---|
| Standard Packaging Quantity | 100 |
| Standard Packaging Volume (cf) | 0.0465 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.2327 |
Panduit - CJLRCAPRD-C - Videos
| Panduit CJLRCAPRD-C Videos | Click to View |
|---|
