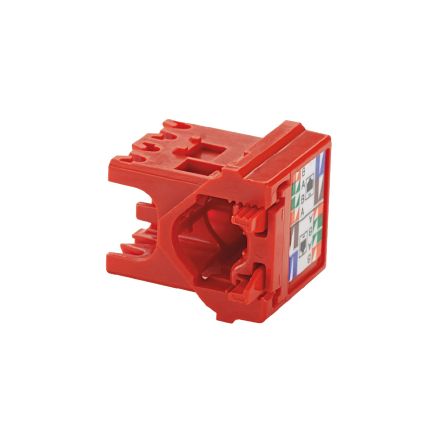

Panduit CJRCAPRD | Mini-Com UTP Cat 5e Right Angle TG Wirecap, Red
Regular price
$3.45
Unit price
Brand: Panduit
|
SKU:
671210
Regular price
$3.45
Unit price
Description
Description
Panduit CJRCAPRD | Mini-Com UTP Cat 5e Right Angle TG Wirecap, Red
The TX6A Right Angle Wire Cap provides a side opening allows cable to be terminated to the right or left side of the jack module, and is ideal for installations that have minimal depth that may not allow standard bend radius practices to be accommodated.
Panduit MINI-COM - Wire cap - red - CJRCAPRD.
Specifications
Specifications
Panduit - CJRCAPRD - Product Categories
- Copper Systems
- Jack Modules
Panduit - CJRCAPRD - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CJRCAPRD |
| Item Description | Mini-Com UTP Cat 5e Right Angle TG Wirecap, Red |
| Product Type | Jack Accessory |
| Performance Level | Category 5e |
| Connector Type | Jack Accessory |
| Termination Style | TG Style |
| Body Material | Polycarbonate |
| Module Type | Mini-Com |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Sub Brand | Pan-Net |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 75 |
| Maximum Storage Temperature (°F) | 167 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Color | Red |
| Standards Met | RoHS Compliant |
| Overall Depth (In.) | 0.7 |
| Overall Depth (mm) | 17.8 |
| Overall Height (In.) | 0.63 |
| Overall Height (mm) | 16 |
| Overall Length (In.) | 0.7 |
| Overall Length (mm) | 17.8 |
| Overall Width (In.) | 0.7 |
| Overall Width (mm) | 17.8 |
Panduit - CJRCAPRD - Package Information
| UPC | 07498378115 |
|---|---|
| Standard Package Quantity | 10 |
| Standard Package Volume (cf) | 0.0077 |
| Standard Ctn. Quantity | 100 |
| Standard Ctn. Volume (cf) | 0.0771 |
Panduit - CJRCAPRD - Videos
| Video 1 | Click to View |
|---|
