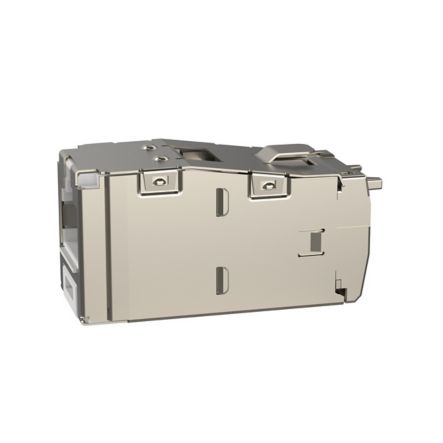

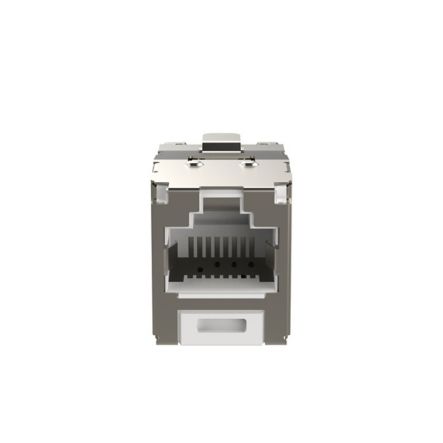

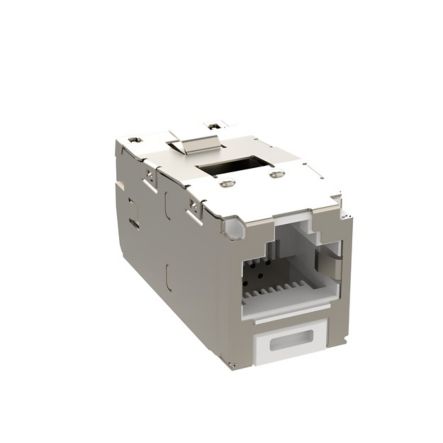

Panduit CJS688TGWHY | Mini-Com Stp Rj45 Cat 6 Tg Jack Module, White
Regular price
$22.42
Unit price
Brand: Panduit
|
SKU:
10124730
Regular price
$22.42
Unit price
Description
Description
Panduit CJS688TGWHY | Mini-Com Stp Rj45 Cat 6 Tg Jack Module, White
Panduit CJS688TGWHY | TEMPORARY | 1 PORT MOD JACK IDC 8W8P STP
The Mini-Com Cat 6 Shielded RJ45 TG Jack Module is designed to terminate shielded 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates.
Specifications
Specifications
Panduit - CJS688TGWHY - Product Categories
- Copper Systems
- Jack Modules
Panduit - CJS688TGWHY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CJS688TGWHY |
| Item Description | Mini-Com Stp Rj45 Cat 6 Tg Jack Module, White |
| Product Type | Jack Module |
| Performance Level | Category 6 |
| Connector Type | Jack Module - Standard |
| Termination Style | TG Style |
| Body Material | Polycarbonate |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Mini-Com |
| Wiring Scheme | T568A/T568B |
| Shield Type | Shielded (STP) |
| Sub Brand | Pan-Net |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 75 |
| Maximum Storage Temperature (°F) | 167 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Resistance Properties | Heat-Resistant |
| Color | White |
| Standards Met | Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant. |
| Overall Depth (In.) | 1.5 |
| Overall Depth (mm) | 38.1 |
| Overall Height (In.) | 0.74 |
| Overall Height (mm) | 18.8 |
| Overall Length (In.) | 1.5 |
| Overall Length (mm) | 38.1 |
| Overall Width (In.) | 0.62 |
| Overall Width (mm) | 15.7 |
Panduit - CJS688TGWHY - Package Information
| UPC | 61305645313 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0032 |
| Standard Ctn. Quantity | 50 |
| Standard Ctn. Volume (cf) | 0.1605 |
