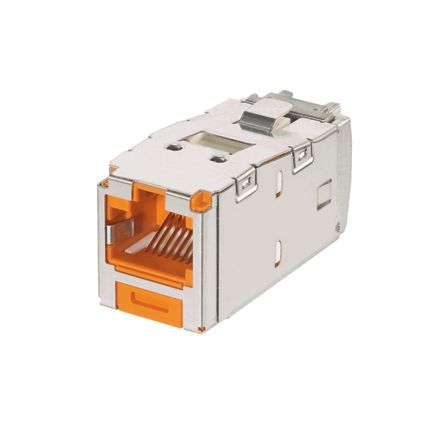

Panduit CJSK6X88TGOR | Mini-Com STP RJ45 Cat 6A Keyed TG Jack Module, Orange
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CJSK6X88TGOR | Mini-Com STP RJ45 Cat 6A Keyed TG Jack Modul...
Description
Description
The Mini-Com Cat 6A Shielded RJ45 TG Keyed Jack Module is designed to terminate shielded 4-pair, 22-26 AWG twisted pair cable and only allow same-color Keyed Panduit Patchcords to be inserted. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates.
Panduit CJSK6X88TGOR Mini-com Keyed Module, Cat 6A, Shielded, 8 Pos 8 Wire, Universal, Orange, TG Style
Specifications
Specifications
Panduit - CJSK6X88TGOR - Product Categories
- Copper Systems
- Jack Modules
Panduit - CJSK6X88TGOR - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CJSK6X88TGOR |
| Item Description | Mini-Com STP RJ45 Cat 6A Keyed TG Jack Module, Orange |
| Product Type | Jack Module |
| Performance Level | Category 6A |
| Connector Type | Jack Module - Keyed |
| Termination Style | TG Style |
| Body Material | Polycarbonate |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Mini-Com |
| Wiring Scheme | T568A/T568B |
| Shield Type | Shielded (STP) |
| Sub Brand | Pan-Net |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 75 |
| Maximum Storage Temperature (°F) | 167 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Resistance Properties | Heat-Resistant |
| Color | Orange |
| Standards Met | Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant. |
| Overall Depth (In.) | 1.5 |
| Overall Depth (mm) | 38.1 |
| Overall Height (In.) | 0.74 |
| Overall Height (mm) | 18.8 |
| Overall Length (In.) | 1.5 |
| Overall Length (mm) | 38.1 |
| Overall Width (In.) | 0.62 |
| Overall Width (mm) | 15.7 |
Panduit - CJSK6X88TGOR - Package Information
| UPC | 07498312196 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0030 |
| Standard Ctn. Quantity | 50 |
| Standard Ctn. Volume (cf) | 0.1492 |
