Panduit CJSLRCAPIW-X | Jack Accessory | UPC - 61305657871
Description
Description
Category 6A/Class EA and Category 6/Class E, 8-position Angled Shielded Jack Module shall terminate 4-pair, 22-26AWG, 100 ohm shielded twisted pair cable and shall not require use of a punch down tool. Angled Shielded jack Modules shall provide option for either up or down, or left or right, 45 deg angled cable entry into rear of jack module. Angled Shielded Jack Modules shall use a forward motion termination method to optimize performance by maintaining cable pair geotmetry while eliminating conductor untwist. The termination cap shall be color-coded to designate performance level and shall include a label coded for T568B wiring scheme.

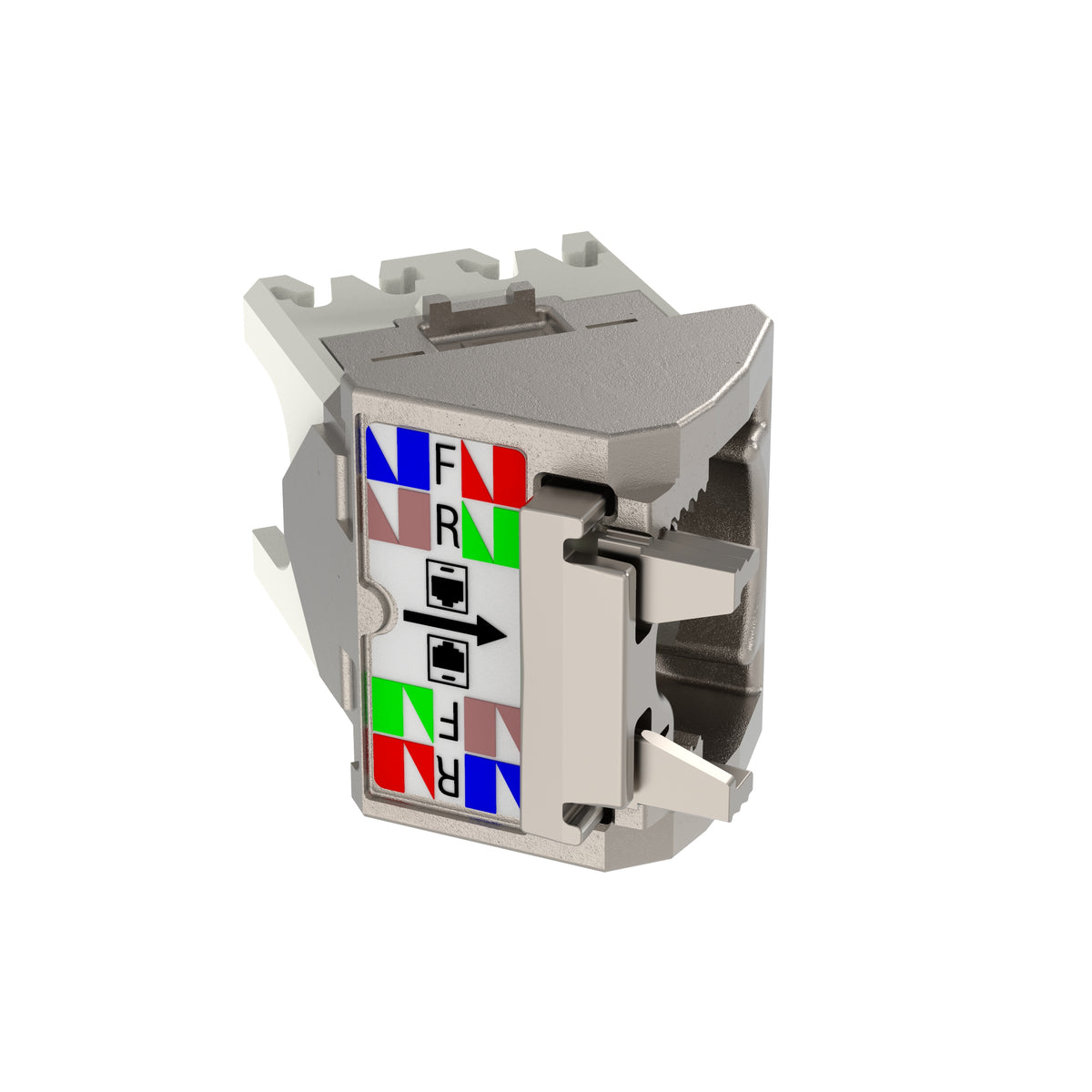

Panduit PanNet TX6 PLUS Cap, 45 deg Left/Right, For Use With: Mini-Com Cat 6A 8-Position Angled Shielded Jack Module, White, 0.63 in W x 0.96 in D
Features + Benefits
- Angled cable exit - large diameter cable can be routed to jacks in tight spaces while maintaining proper bend radius, also can be used on multiple jacks positioned next to each other
- Reversible direction design - both wire cap versions can be inserted into compatible jacks in either direction, bringing the convenience of needing only two parts to handle up, down, left, or right cable routing needs
- Wide compatibility - immediate compatibility with Panduit most common Mini-Com UTP and shielded jacks
- Economical - angled wire caps can easily be applied to new or already installed compatible jacks to gain routing advantages without needing to purchase new jacks
- Uses enhanced Giga-TX technology - optimizes performance by eliminating conductor untwist and reduces installation time and expense
- Consistent termination design - similarity in both conductor management and termination method to Panduit most common straight exit Mini-Com UTP and shielded jacks, ensures minimal learning curve and fast field terminations
Panduit CJSLRCAPIW-X Key Specs
| Product Type | Jack Accessory |
| Performance Level | Category 6 |
| Connector Type | Jack Accessory |
| Termination Style | TG Style |
| Body Material | Die Cast |
| Module Type | Mini-Com |
| Wiring Scheme | T568A/T568B |
| Shield Type | Shielded (STP) |
| Sub Brand | Pan-Net |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
Panduit CJSLRCAPIW-X Data Sheets
| Part Drawings | 45-Degree Angled Left-Right Shielded Wire Cap Assembly | Download and View |
| Installation Documents | 45° Left/Right Shielded TG Modular Jacks & Wire Caps | Download and View |
| Specification Sheets | 45° Angled Wire Caps for TX6A, TX6 PLUS and TX5e Mini-Com UTP and Shielded Jack Modules | Download and View |
| Specification Sheets | 45° Angled Mini-Com TX6A and TX6 PLUS Shielded Jack Modules | Download and View |
