Panduit CJST6X88TGY | Jack Module | UPC - 61305602226
Description
Description
Cat 6a/Class EA, 8-position, shielded jack Mini-Com shall terminate 4-pair, 28 AWG solid/stranded and 30 AWG solid, 100 ohm shielded twisted pair cable and shall not require use of a punchdown tool. Shielded jack Mini-Com shall use a forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The termination cap shall be color coded aqua to designate Cat 6a and 28/30 AWG utility performance and shall include a universal label coded for T568A and T568B wiring schemes.

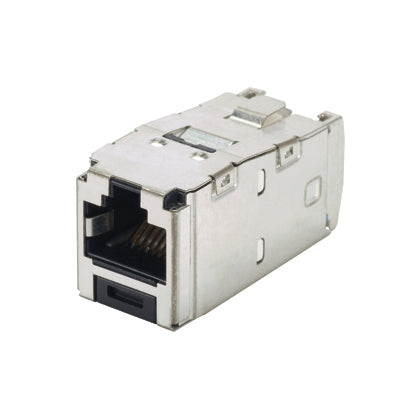

Panduit Mini-Com TX6A Jack Module, 8-Position 8-Wire Shielded, Giga-TX (TG Style)/RJ45 Connector, Copper Solid/Stranded Cable, 28 AWG, 30 AWG Cable, Category: Cat 6A, ABS/Phosphorous Bronze/Plastic, Black, Tin Plated, 0.75 in H x 0.62 in W x 1.5 in D Dimensions
Features + Benefits
- 100% performance tested, confidence that each jack Mini-Com will deliver the critical electrical performance requirements
- Utilizes enhanced Giga-TX technology, optimizes performance by eliminating conductor untwist and reduces installation time and expense
- Snap-in grounding shield provides seamless bonding of the jack Mini-Com with Mini-Com all metal modular patch panels
- Integral shield provides a 360 deg conductive path to ground shielded jack Mini-Com with no additional assembly required
Panduit CJST6X88TGY Key Specs
| Product Type | Jack Module |
| Performance Level | Category 6A |
| Connector Type | Jack Module |
| Termination Style | TG Style |
| Body Material | ABS |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Mini-Com |
| Wiring Scheme | T568A/T568B |
| Shield Type | Shielded (STP) |
| Sub Brand | Pan-Net |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 70 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Color | Black |
Panduit CJST6X88TGY Data Sheets
| Selection Guides | Selection Guide - SA-PCCR02 Tool Chart Guide WEB 4-19-10 | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - LCDN2-10B-Q Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCDN2-14D-Q | Download and View |
