Panduit CJSUD688TGWHY | Jack Module | UPC - 61305675618
Description
Description
Category 6A/Class EA and Category 6/Class E, 8-position, Angled Shielded Jack Module shall terminate 4-pair, 22 to 26 AWG, 100 Ohm shielded twisted pair cable and shall not require use of a punch down tool. Angled Shielded Jack Modules shall provide option for either up or down, or left or right, 45 deg angled cable entry into rear of jack module. Angled Shielded Jack Modules shall use a forward motion termination method to optimize performance by maintaining cable pair geometry while eliminating conductor untwist. The termination cap shall be color-coded to designate performance level and shall include a label coded for T568B wiring scheme.

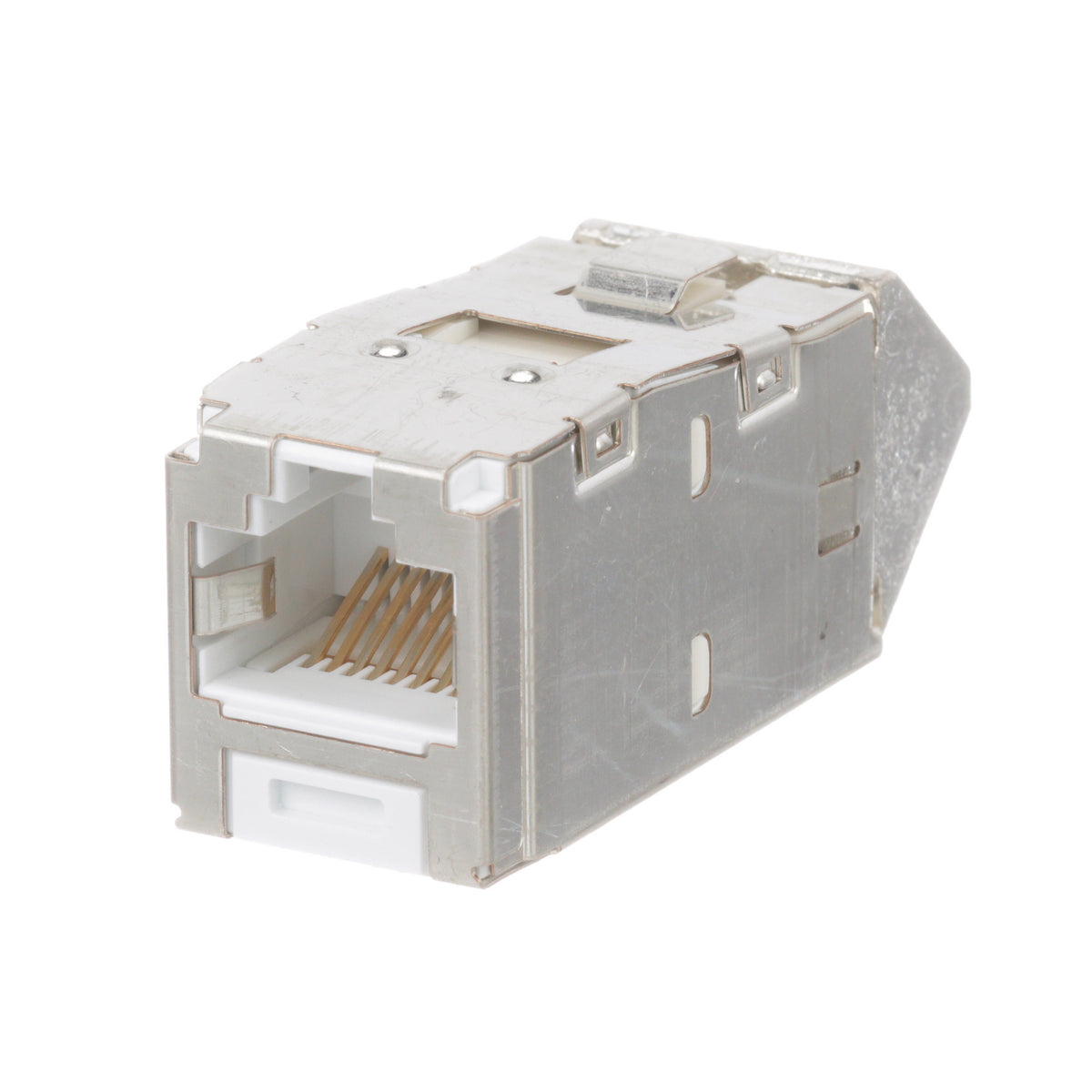

Panduit PanNet Jack Module, Shielded TG Style, Cat 6/Mini-Com/RJ45 Module, Snap-In Mount, ABS, White, 0.74 in W x 1.73 in D
Features + Benefits
- Angled cable exit - large diameter cable can be routed to jacks in tight spaces while maintaining proper bend radius, ensuring proper performance and enabling easy cable dressing in high density applications like patch panels
- Reversible direction design - each modular jack comes with a wire cap which can be inserted in either of two directions, so that only one jack type is needed to route cable in up or down directions or left or right directions
- 100% performance tested - confidence that each jack module will deliver the critical electrical performance requirements
- Utilizes enhanced Giga-TX technology - optimizes performance by eliminating conductor untwist and reduces installation time and expense
- Integral shield - provides a 360 deg conductive path to ground shielded jack module with no additional assembly required
- Snap in grounding - shield provides seamless bonding of the jack module with Mini-Com all metal modular patch panels
- Modular - shielded jack modules snap in and out of all Mini-Com faceplates, metal modular patch panels and surface mount boxes for easy moves, adds and changes
- Individually serialized - marked with quality control number for future traceability
- High density - able to support 48 ports in 1RU density
- Termination tool - TGSJT termination tool ensures conductors are fully terminated by utilizing a smooth forward motion without impact on critical internal components for maximum reliability
Panduit CJSUD688TGWHY Key Specs
| Product Type | Jack Module |
| Performance Level | Category 6 |
| Connector Type | Jack Module |
| Termination Style | TG Style |
| Body Material | Polycarbonate |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Mini-Com |
| Wiring Scheme | T568A/T568B |
| Shield Type | Shielded (STP) |
| Sub Brand | Pan-Net |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Color | White |
| Standards Met | Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant. |
| RoHS Compliant | Yes |
Panduit CJSUD688TGWHY Data Sheets
| Part Drawings | STP Jack Module with 45-Degree Up-Down Shielded Wire Cap Assembly | Download and View |
| Installation Documents | 45° Up/Down Shielded TG Modular Jacks & Wire Caps | Download and View |
| Specification Sheets | 45° Angled Wire Caps for TX6A, TX6 PLUS and TX5e Mini-Com UTP and Shielded Jack Modules | Download and View |
| Specification Sheets | 45° Angled Mini-Com TX6A and TX6 PLUS Shielded Jack Modules | Download and View |
