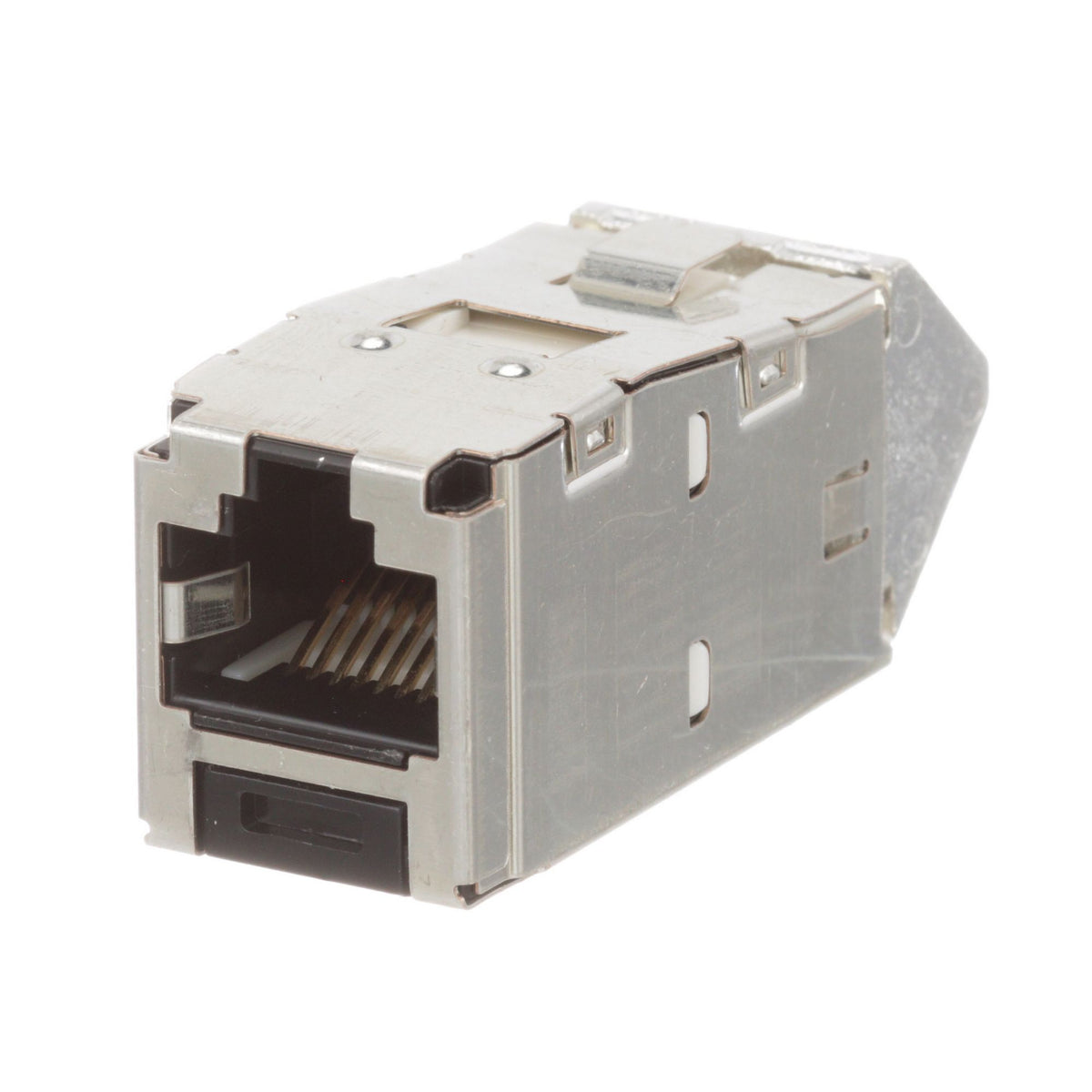

Panduit CJSUD6X88TGY | Mini-Com STP RJ45 Cat 6A Up/Down TG Jack Mod...
Description
Description
The Mini-Com Cat 6A Shielded RJ45 Up/Down 45° Angled TG Jack Module is designed to terminate shielded 4-pair, 22-26 AWG twisted pair cable and improves cable routing to jacks in tight spaces. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates.
Category 6A/Class EA and Category 6/Class E, 8-position Angled Shielded Jack Module shall terminate 4-pair, 22-26AWG, 100 ohm shielded twisted pair cable and shall not require use of a punch down tool. Angled Shielded jack Modules shall provide option for either up or down, or left or right, 45 angled cable entry into rear of jack module. Angled Shielded Jack Modules shall use a forward motion termination method to optimize performance by maintaining cable pair geotmetry while eliminating condutor untwist. The termination cap shall be color-coded to designate performane level and shall include a label coded for T568B wiring scheme
Specifications
Specifications
Panduit - CJSUD6X88TGY - Product Categories
- Copper Systems
- Jack Modules
Panduit - CJSUD6X88TGY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CJSUD6X88TGY |
| Item Description | Mini-Com STP RJ45 Cat 6A Up/Down TG Jack Module, Black |
| Product Type | Jack Module |
| Performance Level | Category 6A |
| Connector Type | Jack Module - 45° Angled Up/Down |
| Termination Style | TG Style |
| Body Material | Polycarbonate |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Mini-Com |
| Wiring Scheme | T568A/T568B |
| Shield Type | Shielded (STP) |
| Sub Brand | Pan-Net |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 75 |
| Maximum Storage Temperature (°F) | 167 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Color | Black |
| Standards Met | Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant. |
| Overall Depth (In.) | 1.73 |
| Overall Depth (mm) | 43.9 |
| Overall Height (In.) | 0.71 |
| Overall Height (mm) | 18 |
| Overall Length (In.) | 1.73 |
| Overall Length (mm) | 43.9 |
| Overall Width (In.) | 0.62 |
| Overall Width (mm) | 15.7 |
| Category | CATEGORY 6A |
| UNSPSC Code | 39121444 |
Panduit - CJSUD6X88TGY - Package Information
| UPC | 61305666863 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0032 |
| Standard Ctn. Quantity | 50 |
| Standard Ctn. Volume (cf) | 0.1604 |
