Brand: Panduit
|
SKU:
895145

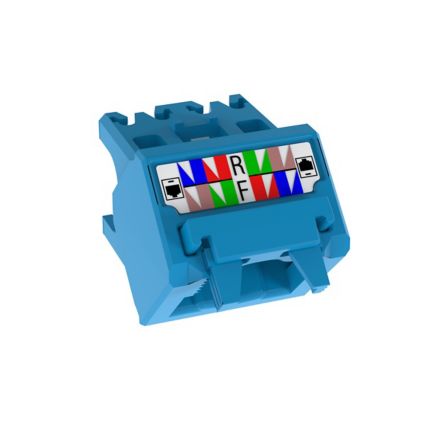

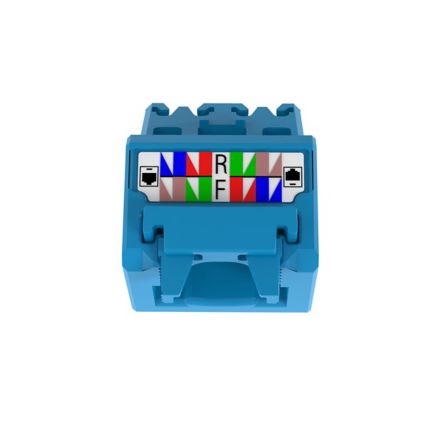

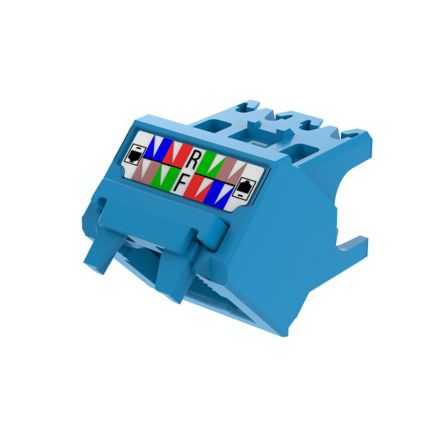

Panduit CJUDCAPBU-X | 45° Angled Wire Cap for Cat 6A UTP TG Jack
Regular price
$19.78
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CJUDCAPBU-X | 45° Angled Wire Cap for Cat 6A UTP TG Jack
Regular price
$19.78
Unit price
Description
Description
Panduit CJUDCAPBU-X | 45° Angled Wire Cap for Cat 6A UTP TG Jack
Angled TG wire cap, Cat. 6A, 10 pk., blue
Panduit CJUDCAPBU-X Category 6A 45 degree angled up/down TG wire cap provides improved cable routing to jacks in confined spaces. For use with the TGSJT Termination Tool.
Specifications
Specifications
Panduit - CJUDCAPBU-X - Product Categories
- Copper Systems
- Jack Modules
Panduit - CJUDCAPBU-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CJUDCAPBU-X |
| Item Description | 45° Angled Wire Cap for Cat 6A UTP TG Jack |
| Product Type | Jack Accessory |
| Performance Level | Category 6A |
| Connector Type | Jack Accessory |
| Termination Style | TG Style |
| Body Material | Polycarbonate |
| Module Type | Mini-Com |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Sub Brand | Pan-Net |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 75 |
| Maximum Storage Temperature (°F) | 167 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Color | Blue |
| Standards Met | Exceeds Channel and Component Requirements of ANSI/TIA-568-C.2 and ISO 11801 Standards for the Respective Category or Class Performance Levels at the Designated Swept Frequencies for that Category or Class, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and Proposed 802.3bt Type 3 and Type 4, UL 1863 and UL 2043, and RoHS Compliant |
| Overall Depth (In.) | 0.94 |
| Overall Depth (mm) | 23.9 |
| Overall Height (In.) | 0.61 |
| Overall Height (mm) | 15.5 |
| Overall Length (In.) | 0.94 |
| Overall Length (mm) | 23.9 |
| Overall Width (In.) | 0.63 |
| Overall Width (mm) | 16 |
Panduit - CJUDCAPBU-X - Package Information
| UPC | 61305625425 |
|---|---|
| Standard Package Quantity | 10 |
| Standard Package Volume (cf) | 0.0077 |
| Standard Ctn. Quantity | 100 |
| Standard Ctn. Volume (cf) | 0.0771 |
Panduit - CJUDCAPBU-X - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
