Brand: Panduit
|
SKU:
974493
Panduit CJUDCAPIW-C | 45° Up/Down Angled Wire Cap for TX6™ PLUS Mini-Com® UTP TG Jack Module
Regular price
$3.48
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CJUDCAPIW-C | 45° Up/Down Angled Wire Cap for TX6™ PLUS Min...
Regular price
$3.48
Unit price
Description
Description

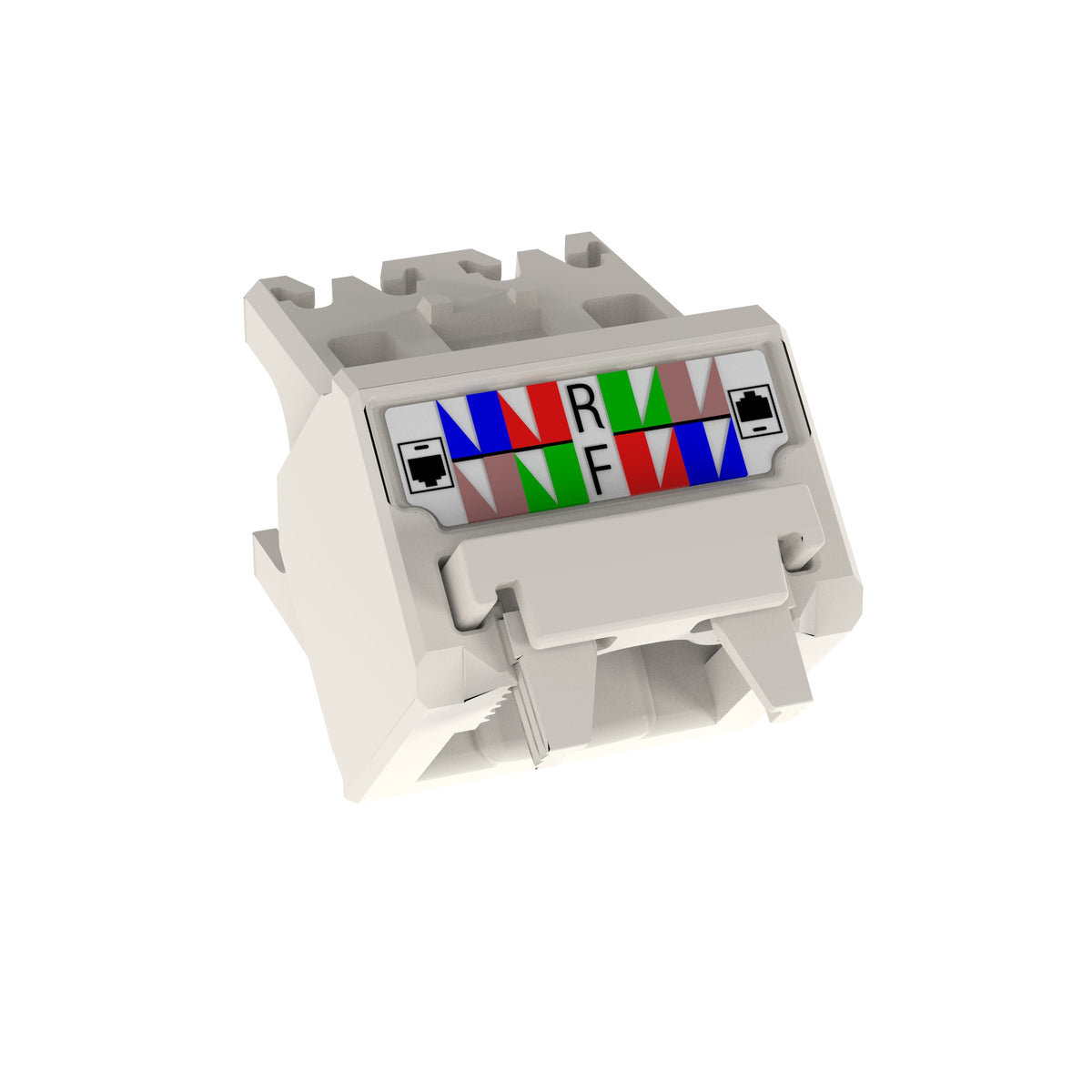

Panduit CJUDCAPIW-C | 45° Up/Down Angled Wire Cap for TX6™ PLUS Mini-Com® UTP TG Jack Module
Panduit Angled Wire Cap, Cat 6 45 deg Unshielded, Polycarbonate, International White, 0.63 in H x 0.61 in W x 0.96 in D
Our angled wire cap offers flexible cable routing around corners and in confined areas, keeping your network organized and efficient.
Panduit - CJUDCAPIW-C - Features
- Minimize waste
- Optimize cable management
- Speed deployment, improve flexibility and manageability
Specifications
Specifications
Panduit - CJUDCAPIW-C - Specifications
| Product Type | Wire Cap |
|---|---|
| Performance Level | Category 6 |
| Connector Type | Jack Accessory |
| Termination Style | TG Style |
| Body Material | Polycarbonate |
| Module Type | Mini-Com® |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Sub Brand | Pan-Net® |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 75 |
| Maximum Storage Temperature (°F) | 167 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Color | Off White |
| Standards Met | Exceeds Channel and Component Requirements of ANSI/TIA-568-C.2 and ISO 11801 Standards for the Respective Category or Class Performance Levels at the Designated Swept Frequencies for that Category or Class, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and Proposed 802.3bt Type 3 and Type 4, UL 1863 and UL 2043, and RoHS Compliant |
| Overall Length (In.) | 0.94 |
| Overall Length (mm) | 23.9 |
| UPC | 61305625430 |
Panduit - CJUDCAPIW-C - Package Information
| UPC | 61305625430 |
|---|---|
| Standard Packaging Quantity | 100 |
| Standard Packaging Volume (cf) | 0.0465 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.2327 |
Panduit - CJUDCAPIW-C - Videos
| Panduit CJUDCAPIW-C Videos | Click to View |
|---|
