Panduit CLMAR2/0-14-Q | Pan-Lug Mech. Lug, Anti-Rotational, Tin Plt...
Description
Description
Experience reliable grounding with our copper lug. Anti-rotational feature, tin-plated for corrosion resistance. Accommodates 14 - 2/0 AWG conductors. Meets UL, CSA, and RoHS standards.

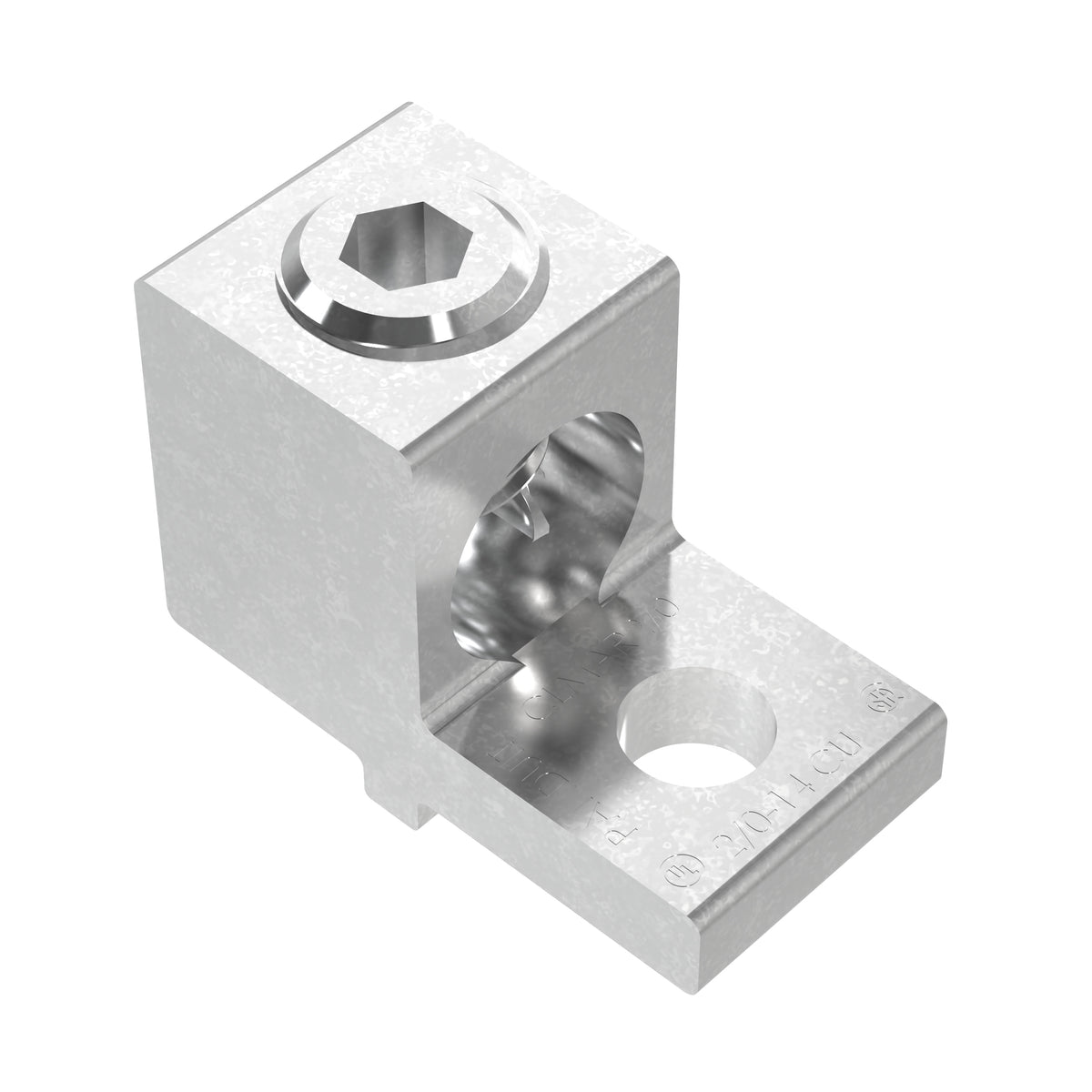

The CLMAR2/0-14-Q Copper Mechanical Lug provides an anti-rotational feature and is used to connect the main ground conductor to Panduit UGB series of Universal Ground Bars.
Panduit StructuredGround Mechanical Lug, Anti-Rotational, 14 to 2/0 AWG Conductor, 1/4 in Stud, 1 Bolt Hole, 0.61 in L x 0.6 in W x 0.19 in THK Tongue, Specifications: 3/16 in Hex, 0.61 in L Wire Strip, Copper, TiN Coated, 1.2 in L x 0.61 in W x 0.87 in H
Specifications
Specifications
Panduit - CLMAR2/0-14-Q - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CLMAR2/0-14-Q |
| UNSPSC Code | 39121400 |
| Product Type | Mechanical Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Single Barrel |
| Tongue Type | Straight Tongue |
| Tongue Angle | Straight |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Screw Type | Hex |
| Maximum Copper Conductor Size (AWG STR) | 2/0 |
| Minimum Copper Conductor Size (AWG STR) | 14 |
| Tongue Length (In.) | 0.61 |
| Tongue Length (mm) | 15.5 |
| Tongue Thickness (In.) | 0.19 |
| Tongue Thickness (mm) | 4.7 |
| Overall Length (In.) | 1.2 |
| Overall Length (mm) | 30.6 |
| Overall Width (In.) | 0.6 |
| Overall Width (mm) | 15.2 |
| Overall Height (In.) | 0.87 |
| UPC | 07498340220 |
