Panduit CLRCVR1-1 | Structured Ground Cover
Regular price
$21.09
Unit price
Brand: Panduit
|
SKU:
432491
Regular price
$21.09
Unit price
Description
Description

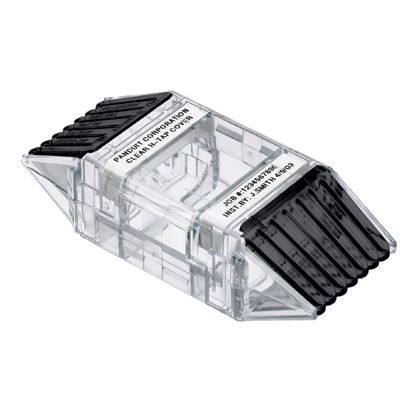

Panduit CLRCVR1-1 | StructuredGround Cover
Our insulating HTAP cover protects electrical connections from moisture, corrosion, and physical damage, ensuring reliable performance and safety in harsh outdoor environments.
Clear insulating cover for HTCT8-8-1 and HTCT6-6-1 copper compression HTAPS.
Panduit StructuredGround Compression Connector Cover, Type CLRCVR Insulated, For Use With: HTCT8-8-1, HTCT6-6-1 and HTCT6X-6X-1 Copper Compression H-TAP, Polycarbonate/Polypropylene, Black/Clear, 4.48 in L x 1.41 in W x 1.2 in H
Panduit - CLRCVR1-1 - Features
- Made of high impact plastic to provide high impact strength and 360 deg inspections of crimped connection to assure the crimp is complete and the correct die was used
- Incorporate dual self latching spring loaded latches and supplied with two Panduit UL 94V-0 cable ties to allow for easy snap-on assembly and ensure covers are secured
- Low profile design minimizes space requirements
- Each cover half supports installation information labels inside plastic retainer strips to allow labels to be viewed on either side of cover and to protect labels from being removed
Specifications
Specifications
Panduit - CLRCVR1-1 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CLRCVR1-1 |
| UNSPSC Code | 31000000 |
| Sub Brand | StructuredGround |
| Material | Polycarbonate/Polypropylene |
| Surface Treatment | Untreated |
| Color | Clear/Black |
| For Use With | HTCT6X-6X-1, HTCT8-8-1, HTCT6-6-1 |
| Overall Length (In.) | 4.48 |
| Overall Length (mm) | 113.8 |
| Overall Width (In.) | 1.41 |
| Overall Width (mm) | 35.8 |
| Overall Height (In.) | 1.2 |
| Overall Height (mm) | 30.5 |
| Flammability Rating | UL94V-0 |
| Application | Telecom/Data Center |
| Product Type | Black Cover |
| Part Features | Low profile design minimizes space requirements |
| UPC | 07498343853 |
Panduit - CLRCVR1-1 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3926.90.9985 |
Panduit - CLRCVR1-1 - Videos
| Panduit CLRCVR1-1 Video 1 | Click to View |
|---|
