Panduit CLT100F-C4 | Corr. Loom Tubing Split, 0.917" (23.29mm)...
Description
Description
Easily shield cables from damage with our corrugated loom slit wall tubing, provides quick and easy installation for wire harnesses, with additional options for outdoor and electric vehicle use.

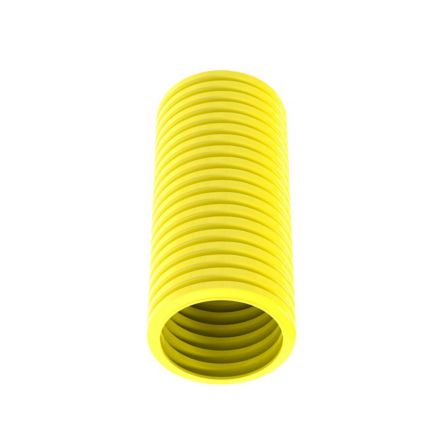

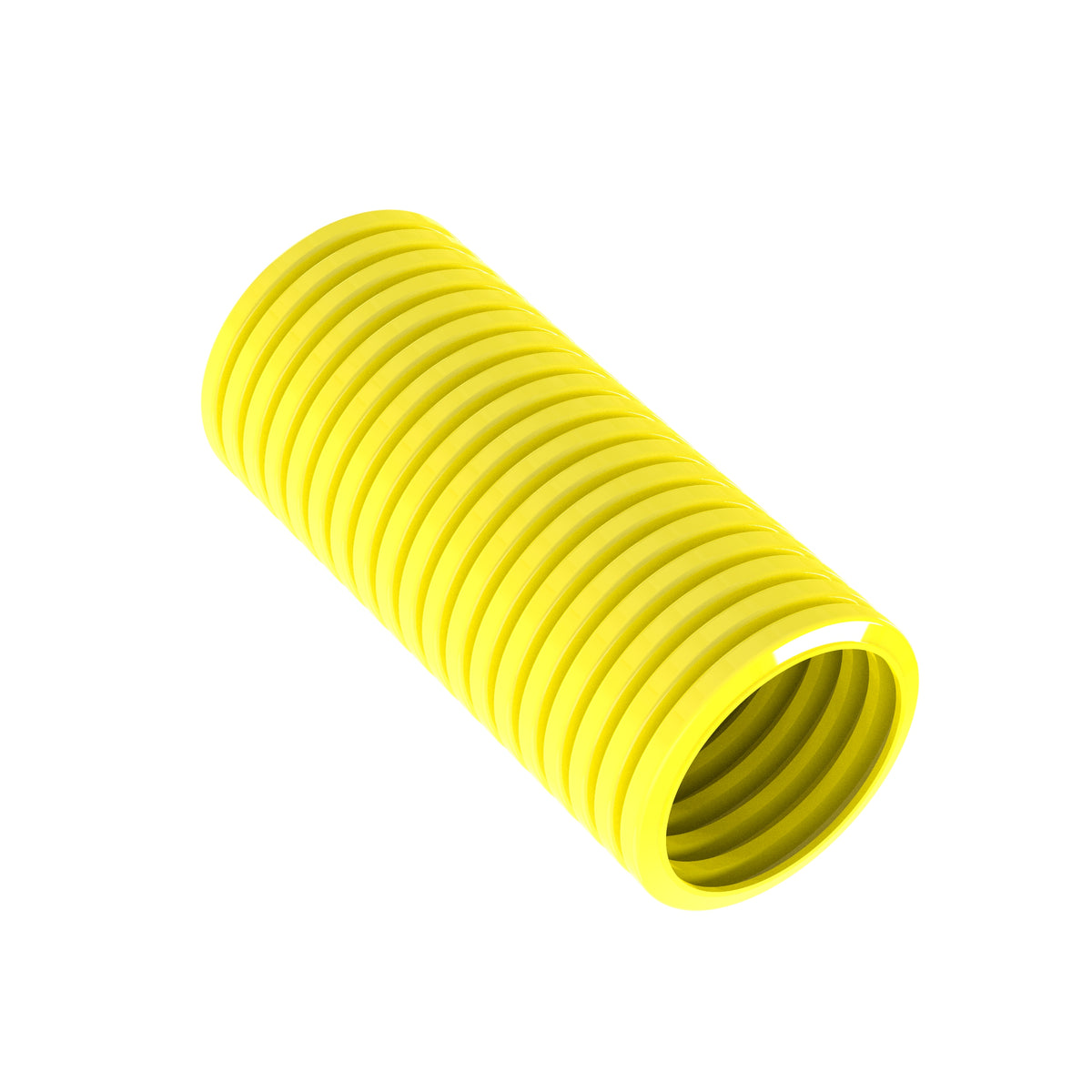

The CLT100F-C4 Corrugated Loom Slit Wall Tubing protects cables from impact and abrasion. Features a slit for easy installation onto a bundle of wires or a pre-assembled harness assembly, increasing productivity. Hold in place with cable ties and acces sories. Suitable for indoor applications. UL94-HB flammability rating and a maximum temperature rating of 122F (50C). Polyethylene. 1" (25.4 mm) x 100’ (30.5 m) Inside diameter 0.91" (23.2 mm). Color Yellow. 1 per package.
Panduit Corrugated Loom Tubing, Slit Wall, 0.92 in ID, 100 ft Length, 0.008 to 0.03 in Thickness, Polyethylene, Yellow
Panduit - CLT100F-C4 - Features
- Provides protection for cables

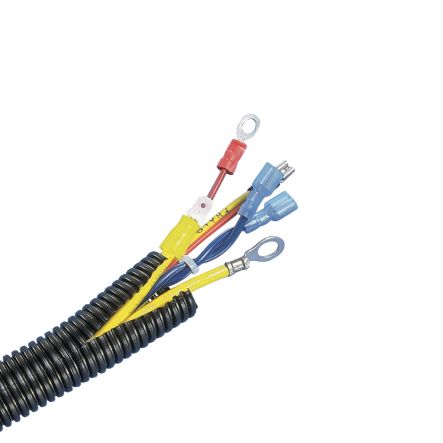

- Slitted for easier install onto a bundle of wires or a pre-assembled harness assembly
- Protects and reduces the risk of damage to wiring
- Crush impact and abrasion resistant
- Slit wall design for ease of installation
- Hold in place with push type cable ties adhesive or push type mount
- Bundle wires in control panels
Specifications
Specifications
Panduit - CLT100F-C4 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CLT100F-C4 |
| Decimal | 1.00 Inch |
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| Mil Spec | No |
| Material/Type | Pe-Polyethylene |
| Military Color Code | Yellow |
| Size By Inch Fractions | 1 Inch |
| Sleeving | No |
| Spiral Wrap | No |
| Ul | No |
| Wall Type| Single Or Dual | Single Wall |
| Zipper | No |
| UNSPSC Code | 39121723 |
| Product Type | Corrugated Loom Tubing |
| Color | Yellow |
| Environment | Indoor |
| Flammability Rating | UL94-HB |
| Inside Diameter (In.) | 0.917 |
| Inside Diameter (mm) | 23.29 |
| Material | Polyethylene |
| Resistance Properties | Impact-Resistant |
| Maximum Operating Temperature (°C) | 50 |
| Minimum Operating Temperature (°F) | -40 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°C) | -40 |
| Nominal Diameter (In.) | 1 |
| Nominal Diameter (mm) | 25.4 |
| Outer Diameter (In.) | 1.114 |
| Outer Diameter (mm) | 28.3 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Standards Met | RoHS Compliant |
| Part Features | Provides protection for cables, crush impact and abrasion resistant |
| UPC | 07498382916 |
