Panduit CLT125F-L4 | CLT125F-L4 Corrugated Loom Tubing
Description
Description

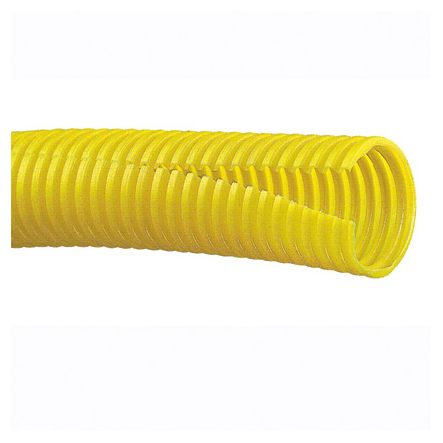

The CLT125F-L4 Corrugated Loom Slit Wall Tubing protects cables from impact and abrasion. Features a slit for easy installation onto a bundle of wires or a pre-assembled harness assembly, increasing productivity. Hold in place with cable ties and accessories. Suitable for indoor applications. UL94-HB flammability rating and a maximum temperature rating of 122°F (50°C). Polyethylene. Inside diameter 1.28" (32.5 mm). Color Yellow. 1 per package.
Corrugated Loom Tubing Slit, 1.25 Inch (31.8 mm) x 50 Feet (15.2 Meters), Yellow. Material is Polyethylene. Temperature Range is -40 degrees Fahrenheit to 122 degrees Fahrenheit (-40 degrees Celsius to 50 degrees Celsius). Offered for applications where Spiral Wrap or Braided Expandable Sleeving may be difficult to install or they do not offer the amount of protection required. Protects and reduces the risk of damage to wiring. Resistant to crush, impact and abrasion. Slit wall design eases installation. Can be held in place using Panduit push mount cable ties or mounts. Applications include control panel wiring and cable harness management.
Specifications
Specifications
Panduit - CLT125F-L4 - Product Categories
- Wire Routing, Management & Protection
- Corrugated Loom Tubing
Panduit - CLT125F-L4 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CLT125F-L4 |
| Item Description | CLT125F-L4 Corrugated Loom Tubing |
| Application | Provides Protection for Cables, Crush Impact and Abrasion Resistant, |
| Product Type | Corrugated Loom Tubing |
| Color | Yellow |
| Environment | Indoor |
| Flammability Rating | UL94-HB |
| Inside Diameter (In.) | 1.303 |
| Inside Diameter (mm) | 33.1 |
| Material | Polyethylene |
| Maximum Operating Temperature (°C) | 50 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°F) | -40 |
| Nominal Diameter (In.) | 1.25 |
| Nominal Diameter (mm) | 31.7 |
| Outer Diameter (In.) | 1.524 |
| Outer Diameter (mm) | 38.71 |
| Overall Length (ft.) | 50 |
| Overall Length (m) | 15.2 |
| Standards Met | RoHS Compliant |
Panduit - CLT125F-L4 - Package Information
| UPC | 07498382917 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 2.4780 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
Panduit - CLT125F-L4 - Videos
| Video 1 | Click to View |
|---|
