Panduit CLT150F-D20 | Clt150F-D20 Loom Tubing, Black, Pe, 500',...
Description
Description

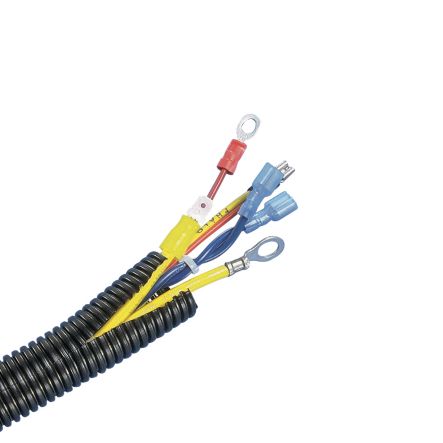

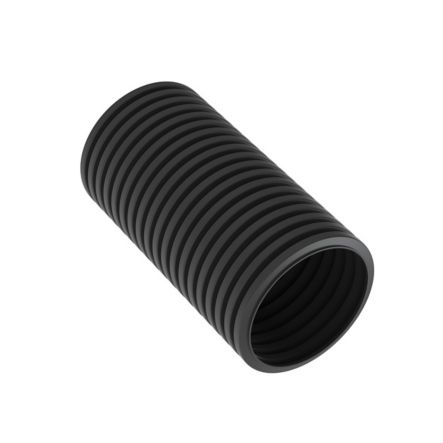

The CLT150F-D20 Corrugated Loom Slit Wall Tubing protects cables from impact and abrasion. Features a slit for easy installation onto a bundle of wires or a pre-assembled harness assembly, increasing productivity. Hold in place with cable ties and accessories. Suitable for indoor applications. UL94-HB flammability rating and a maximum temperature rating of 122°F (50°C). Polyethylene. Inside diameter 1.58" (40.0 mm). Color Black. 1 per package.
Panduit - CLT150F-D20 - Features
- Protects and reduces the risk of damage to wiring
- Crush impact and abrasion resistant
- Slit wall design for ease of installation
- Hold in place with push type cable ties adhesive or push type mount
- Bundle wires in control panels
Specifications
Specifications
Panduit - CLT150F-D20 - Product Categories
- Wire Routing, Management & Protection
- Corrugated Loom Tubing
Panduit - CLT150F-D20 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CLT150F-D20 |
| Item Description | Clt150F-D20 Loom Tubing, Black, Pe, 500', Pk1 |
| Application | Protect wire and cable from abrasion |
| Note | Provides protection for cables. Slit for easier install onto a bundle of wires or a pre-assembled harness assembly |
| Product Type | Corrugated Loom Tubing |
| Color | Black |
| Environment | Indoor |
| Flammability Rating | UL94-HB |
| Inside Diameter (In.) | 1.484 |
| Inside Diameter (mm) | 37.69 |
| Material | Polyethylene |
| Resistance Properties | Abrasion |
| Maximum Operating Temperature (°C) | 50 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°F) | -40 |
| Nominal Diameter (In.) | 1.5 |
| Nominal Diameter (mm) | 38.1 |
| Outer Diameter (In.) | 1.728 |
| Outer Diameter (mm) | 43.89 |
| Overall Length (ft.) | 500 |
| Overall Length (m) | 152.4 |
| Standards Met | RoHS Compliant |
| Part Features | Provides protection for cables. Slitted for easier install onto a bundle of wires or a pre-assembled harness assembly |
Panduit - CLT150F-D20 - Package Information
| UPC | 07498353310 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 22.6489 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - CLT150F-D20 - Videos
| Video 1 | Click to View |
|---|
