Panduit CLT25F-C3 | CLT25F-C3 Corrugated Loom Tubing
Description
Description

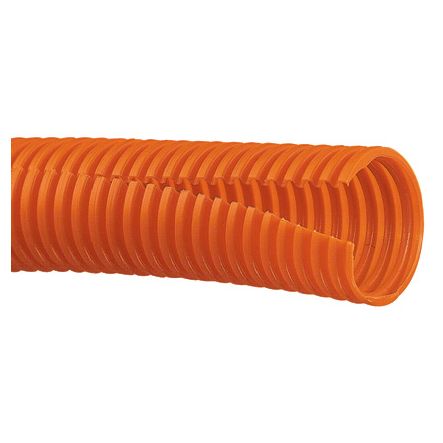

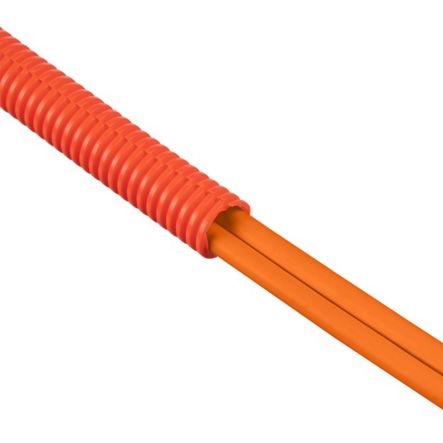

The CLT25F-C3 Corrugated Loom Slit Wall Tubing protects cables from impact and abrasion. Features a slit for easy installation onto a bundle of wires or a pre-assembled harness assembly, increasing productivity. Hold in place with cable ties and accessories. Suitable for indoor applications. UL94-HB flammability rating and a maximum temperature rating of 122°F (50°C). Polyethylene. .25" (6.4 mm) x 100' (30.5 m) Inside diameter .28" (7.2 mm). Color Orange. 1 per package.
Panduit CLT25F-C3 - TUBING - SLIT CORRUGATED LOOM TUBING
Specifications
Specifications
Panduit - CLT25F-C3 - Product Categories
- Wire Routing, Management & Protection
- Corrugated Loom Tubing
Panduit - CLT25F-C3 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CLT25F-C3 |
| Item Description | CLT25F-C3 Corrugated Loom Tubing |
| Application | Provides Protection for Cables, Crush Impact and Abrasion Resistant, |
| Product Type | Corrugated Loom Tubing |
| Color | Orange |
| Environment | Indoor |
| Flammability Rating | UL94-HB |
| Inside Diameter (In.) | 0.281 |
| Inside Diameter (mm) | 7.14 |
| Material | Polyethylene |
| Maximum Operating Temperature (°C) | 50 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°F) | -40 |
| Nominal Diameter (In.) | 0.25 |
| Nominal Diameter (mm) | 6.35 |
| Outer Diameter (In.) | 0.378 |
| Outer Diameter (mm) | 9.6 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Standards Met | RoHS Compliant |
| Part Features | Provides protection for cables. Slitted for easier install onto a bundle of wires or a pre-assembled harness assembly |
Panduit - CLT25F-C3 - Package Information
| UPC | 07498371982 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.4588 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
