Panduit CLT35F-C20 Corrugated Loom Tubing Slit, Polyethylene, 0.35"; (8.9mm) X 100’; (30.5m), Black
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CLT35F-C20 Corrugated Loom Tubing Slit, Polyethylene, 0.35&...
Description
Description

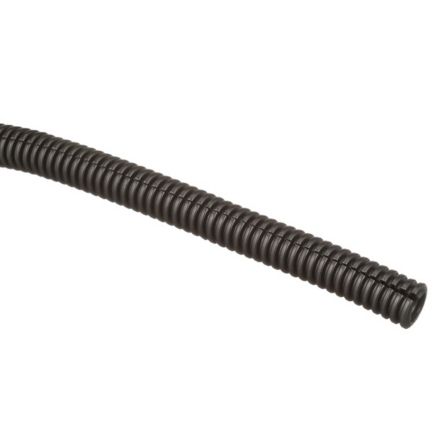

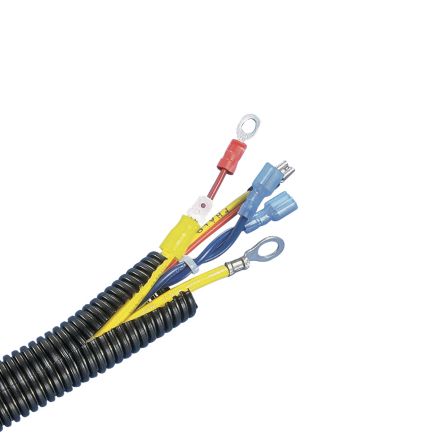

The CLT35F-C20 Corrugated Loom Slit Wall Tubing protects cables from impact and abrasion. Features a slit for easy installation onto a bundle of wires or a pre-assembled harness assembly, increasing productivity. Hold in place with cable ties and accessories. Suitable for indoor applications. UL94-HB flammability rating and a maximum temperature rating of 122°F (50°C). Polyethylene. .35" (8.9 mm) x 100' (30.5 m) Inside diameter .28" (7.2 mm). Color Black. 1 per package.
Panduit - CLT35F-C20 - Features
- Slit Corrugated Loom Tubing is offered for applications where Spiral Wrap or Braided Expandable Sleeving may be difficult to install or they do not offer the amount of protection required.
- Protects and reduces the risk of damage to wiring
- Crush impact and abrasion resistant
- Slit wall design for ease of installation
- Hold in place with push type cable ties adhesive or push type mount
- Bundle wires in control panels
Specifications
Specifications
Panduit - CLT35F-C20 - Product Categories
- Wire Routing, Management & Protection
- Corrugated Loom Tubing
Panduit - CLT35F-C20 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CLT35F-C20 |
| Item Description | CLT35F-C20 Corrugated Loom Tubing |
| Application | Provides Protection for Cables, Crush Impact and Abrasion Resistant, |
| Product Type | Corrugated Loom Tubing |
| Color | Black |
| Environment | Indoor |
| Flammability Rating | UL94-HB |
| Inside Diameter (In.) | 0.323 |
| Inside Diameter (mm) | 8.2 |
| Material | Polyethylene |
| Maximum Operating Temperature (°C) | 50 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°F) | -40 |
| Nominal Diameter (In.) | 0.35 |
| Nominal Diameter (mm) | 8.9 |
| Outer Diameter (In.) | 0.417 |
| Outer Diameter (mm) | 10.59 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Standards Met | RoHS Compliant |
| Part Features | Provides protection for cables. Slitted for easier install onto a bundle of wires or a pre-assembled harness assembly |
Panduit - CLT35F-C20 - Package Information
| UPC | 07498340640 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.8359 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
Panduit - CLT35F-C20 - Videos
| Video 1 | Click to View |
|---|
