Panduit CLT62F-C20 | CLT62F-C20 Loom Tubing, Black, PE, 0.625"...
Description
Description

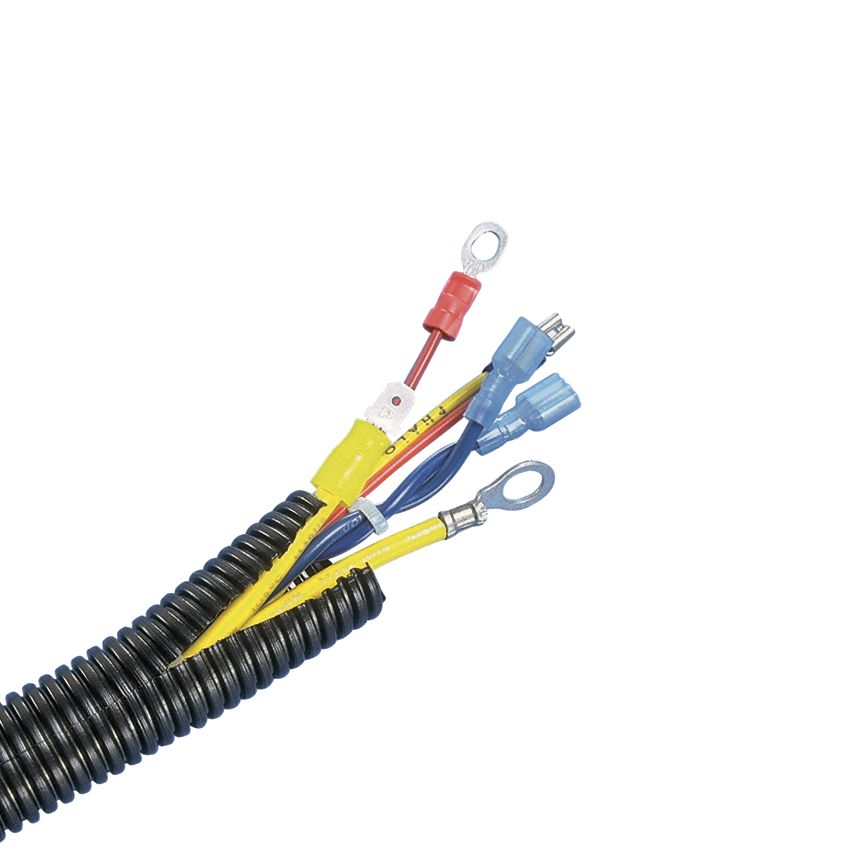

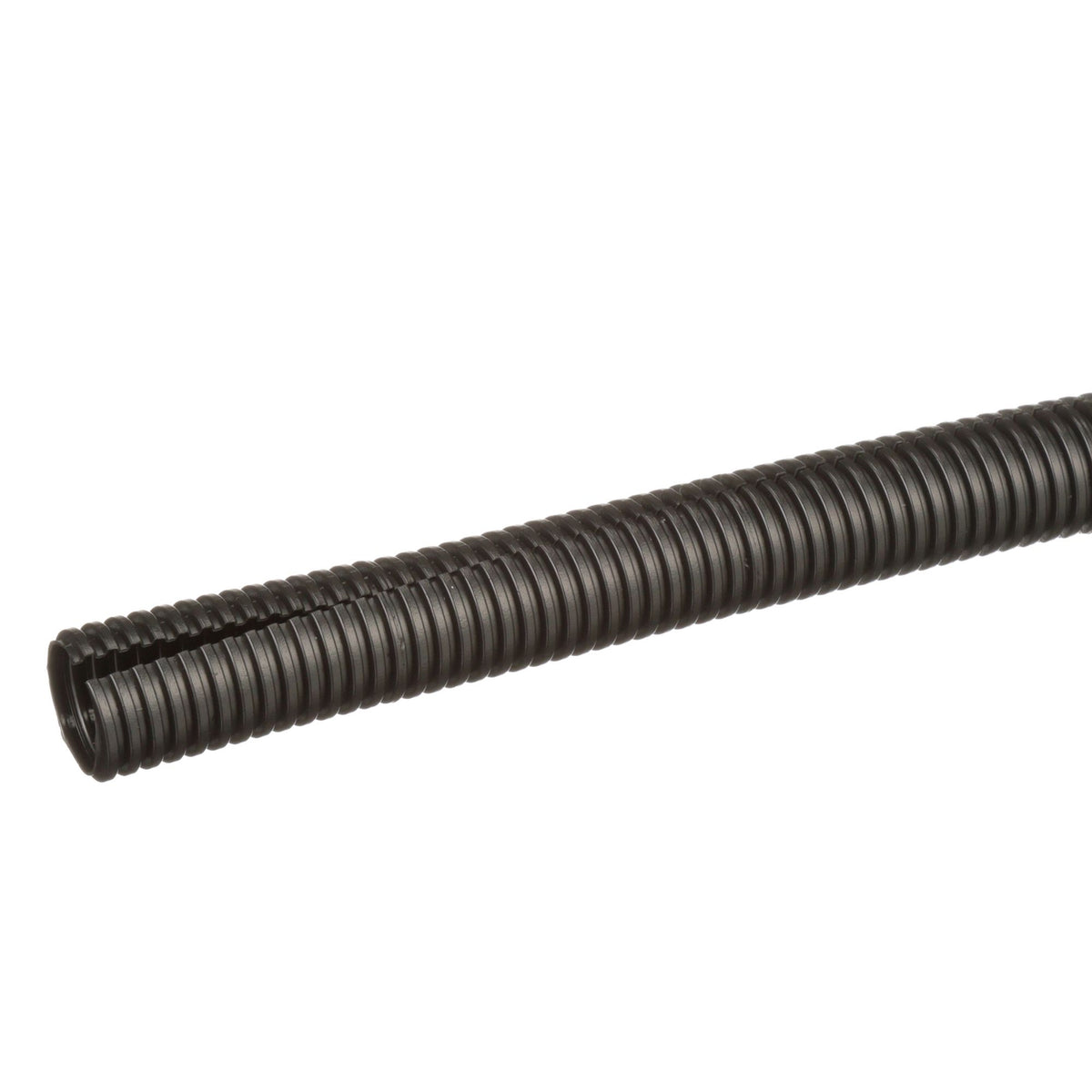

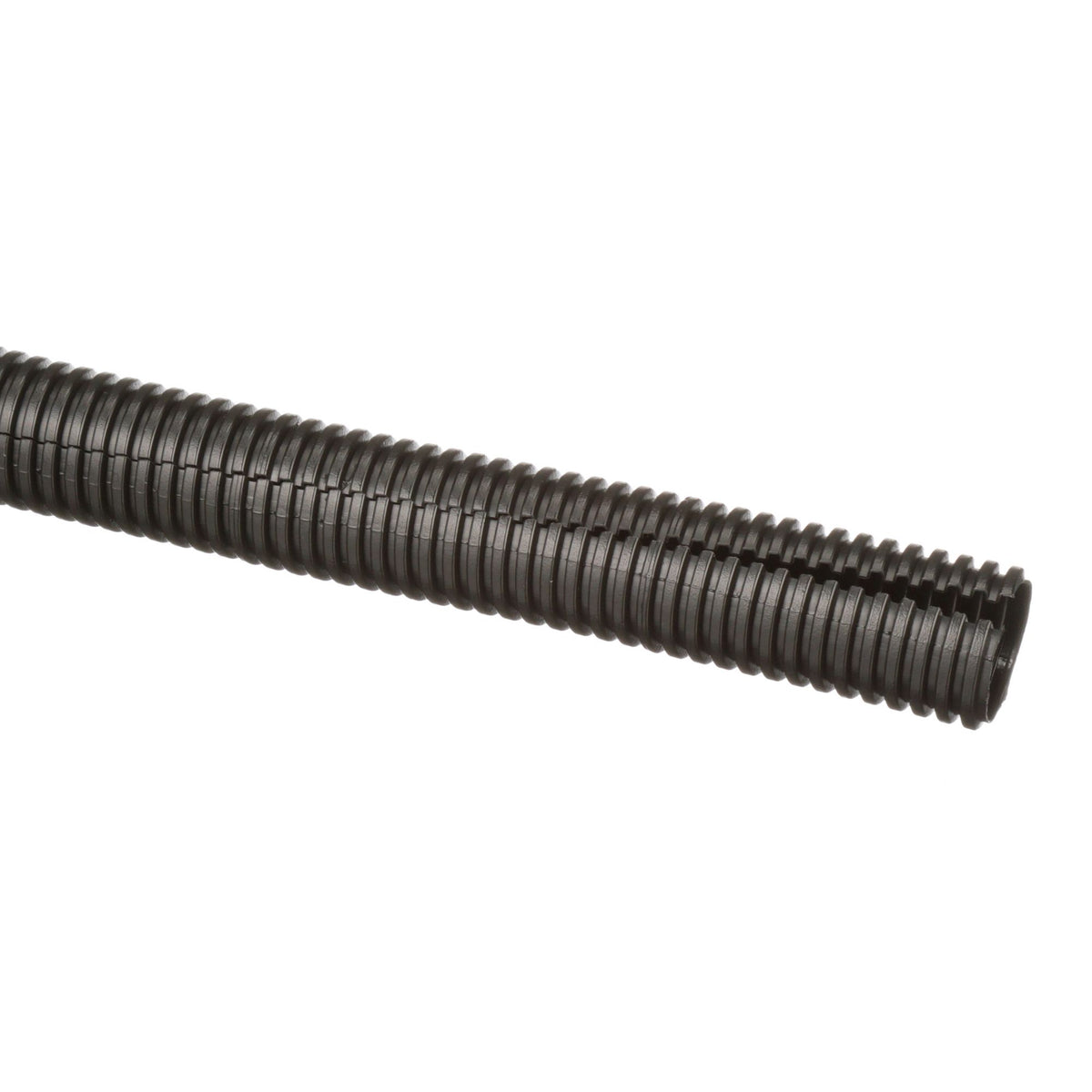

The CLT62F-C20 Corrugated Loom Slit Wall Tubing protects cables from impact and abrasion. Features a slit for easy installation onto a bundle of wires or a pre-assembled harness assembly, increasing productivity. Hold in place with cable ties and accessories. Suitable for indoor applications. UL94-HB flammability rating and a maximum temperature rating of 122°F (50°C). Polyethylene. Inside diameter 0.66" (16.9mm). Color Black. 1 per package.
Panduit CLT62F-C20 - TUBING - CORRUGATED LOOM TUBING SLIT
Specifications
Specifications
Panduit - CLT62F-C20 - Product Categories
- Wire Routing, Management & Protection
- Corrugated Loom Tubing
Panduit - CLT62F-C20 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CLT62F-C20 |
| Item Description | CLT62F-C20 Loom Tubing, Black, PE, 0.625" Nom Dia., 100', PK1 |
| Application | Covers wire and cable to protect from abrasion |
| Note | Slit Wall |
| Product Type | Corrugated Loom Tubing |
| Color | Black |
| Environment | Indoor |
| Flammability Rating | UL94-HB |
| Inside Diameter (In.) | 0.665 |
| Inside Diameter (mm) | 16.89 |
| Material | Polyethylene |
| Resistance Properties | Provides light crush and impact resistance |
| Maximum Operating Temperature (°C) | 50 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°F) | -40 |
| Nominal Diameter (In.) | 0.625 |
| Nominal Diameter (mm) | 15.88 |
| Outer Diameter (In.) | 0.815 |
| Outer Diameter (mm) | 20.7 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Standards Met | RoHS Compliant |
| Part Features | Provides protection for cables. Slitted for easier install onto a bundle of wires or a pre-assembled harness assembly |
Panduit - CLT62F-C20 - Package Information
| UPC | 07498328713 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 2.4780 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - CLT62F-C20 - Videos
| Video 1 | Click to View |
|---|
