Panduit CLT75F-2M20 | Corr. Loom Tubing Slit, .75" (19.05mm) x...
Description
Description
Easily shield cables from damage with our corrugated loom slit wall tubing, provides quick and easy installation for wire harnesses, with additional options for outdoor and electric vehicle use.

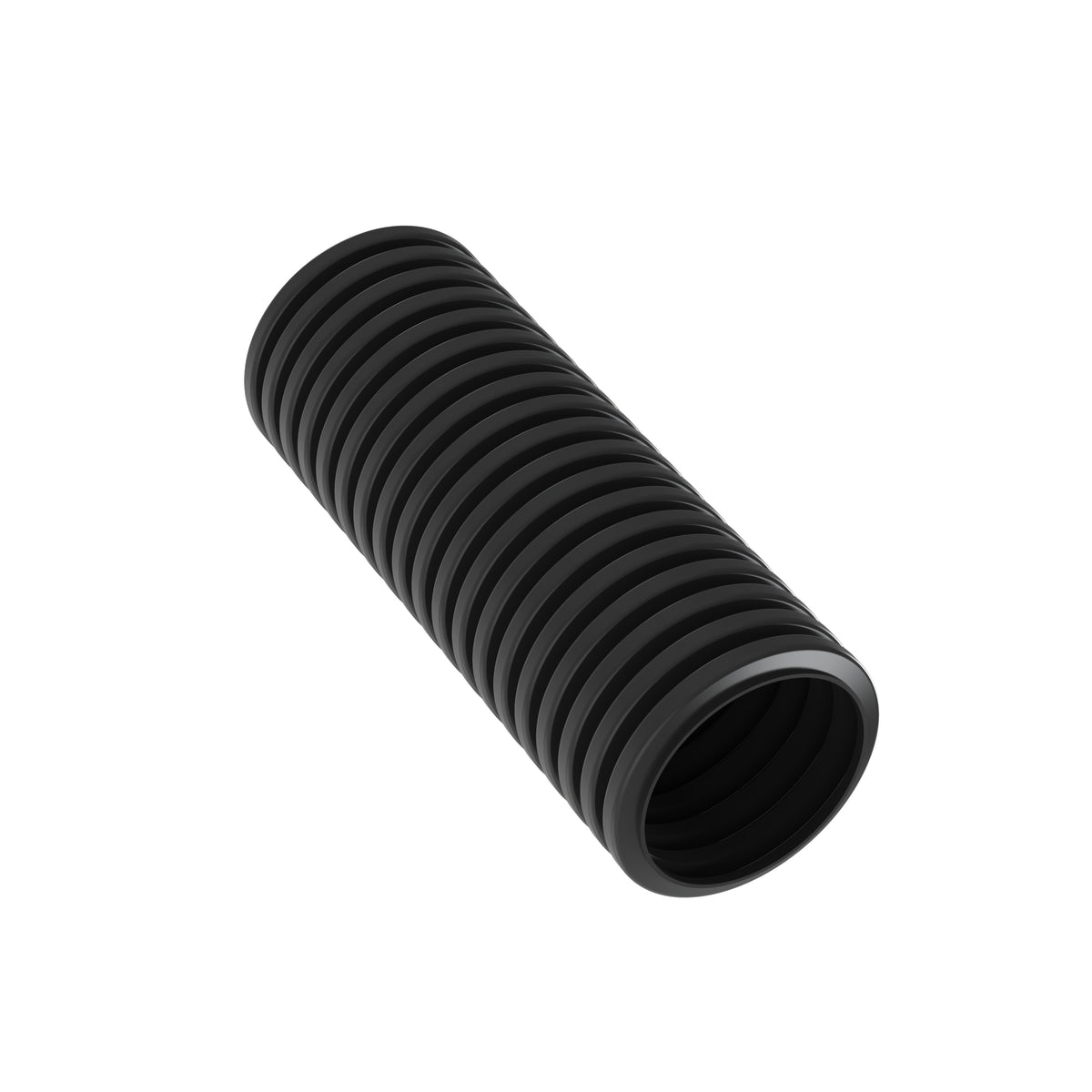

The CLT75F-2M20 Corrugated Loom Slit Wall Tubing protects cables from impact and abrasion. Features a slit for easy installation onto a bundle of wires or a pre-assembled harness assembly, increasing productivity. Hold in place with cable ties and acce ssories. Suitable for indoor applications. UL94-HB flammability rating and a maximum temperature rating of 122F (50C). Polyethylene. 0.75" (19.1 mm) x 2000’ (609.6 m). Inside diameter 0.77" (19.5 mm). Color Black. 1 per package.
Panduit Corrugated Loom Tubing, Slit Wall, 0.76 in Inside Dia, 2000 ft Length, 0.007 to 0.02 in Thickness, Polyethylene, Black
Panduit - CLT75F-2M20 - Features
- Provides protection for cables
- Slitted for easier install onto a bundle of wires or a pre-assembled harness assembly
- Crush, impact and abrasion-resistant
Specifications
Specifications
Panduit - CLT75F-2M20 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CLT75F-2M20 |
| Decimal | .750 Inch |
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| Mil Spec | No |
| Material/Type | Pe-Polyethylene |
| Military Color Code | Black |
| Size By Inch Fractions | 3/4 Inch |
| Sleeving | Yes |
| Spiral Wrap | Yes |
| Ul | No |
| Wall Type| Single Or Dual | Single Wall |
| Zipper | No |
| UNSPSC Code | 39121723 |
| Product Type | Corrugated Loom Tubing |
| Color | Black |
| Environment | Indoor |
| Flammability Rating | UL94-HB |
| Inside Diameter (In.) | 0.762 |
| Inside Diameter (mm) | 19.35 |
| Material | Polyethylene |
| Resistance Properties | Impact-Resistant |
| Maximum Operating Temperature (°C) | 50 |
| Minimum Operating Temperature (°F) | -40 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°C) | -40 |
| Nominal Diameter (In.) | 0.75 |
| Nominal Diameter (mm) | 19.05 |
| Outer Diameter (In.) | 0.933 |
| Outer Diameter (mm) | 23.7 |
| Overall Length (ft.) | 2000 |
| Overall Length (m) | 609.6 |
| Standards Met | RoHS Compliant |
| Part Features | Provides protection for cables, crush impact and abrasion resistant |
| UPC | 07498340647 |
Panduit - CLT75F-2M20 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3926.90.9985 |
Panduit - CLT75F-2M20 - Videos
| Panduit CLT75F-2M20 Video 1 | Click to View |
|---|
