Panduit CLT75N-2M630 | CLT75N-2M630 Corrugated Loom Tubing
Description
Description

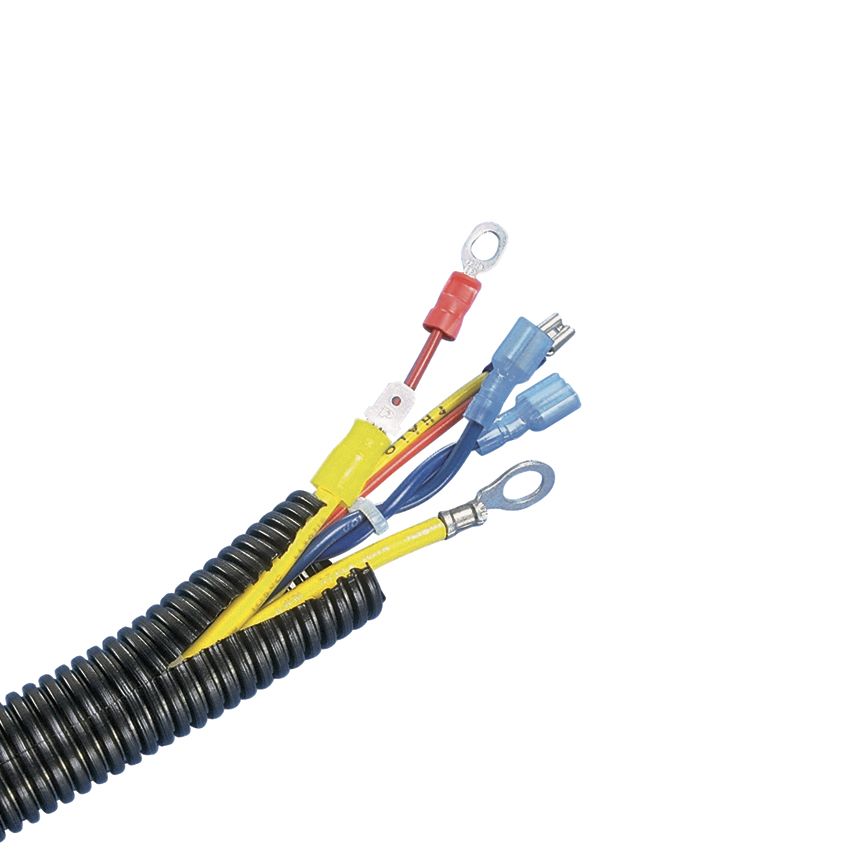

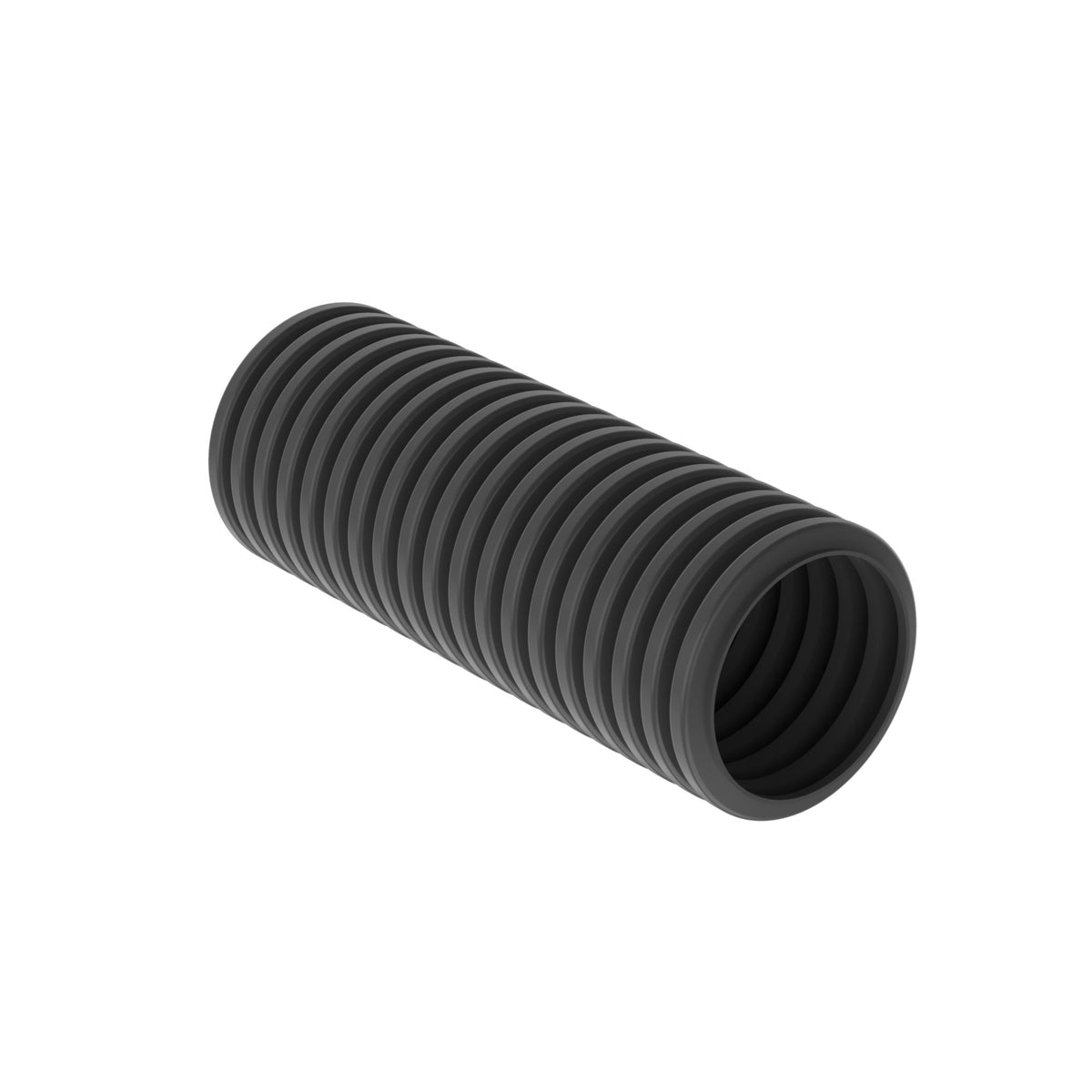

The CLT75N-2M630 Corrugated Loom Slit Wall Tubing protects cables from impact and abrasion. Features a slit for easy installation onto a bundle of wires or a pre-assembled harness assembly, increasing productivity. Hold in place with cable ties and accessories. Suitable for indoor applications. UL94-HB flammability rating and a maximum temperature rating of 230°F (110°C). Heat-Stabilized Nylon 6. Inside diameter 0.77" (19.5mm). Color HS Black. 1 per package.
Panduit CLT75N-2M630 - TUBING - 3/4" CORR SLIT LOOM TUBING
Specifications
Specifications
Panduit - CLT75N-2M630 - Product Categories
- Wire Routing, Management & Protection
- Corrugated Loom Tubing
Panduit - CLT75N-2M630 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CLT75N-2M630 |
| Item Description | CLT75N-2M630 Corrugated Loom Tubing |
| Application | Provides Protection for Cables, Crush Impact and Abrasion Resistant, |
| Product Type | Corrugated Loom Tubing |
| Color | Black |
| Environment | Indoor |
| Flammability Rating | UL94-HB |
| Inside Diameter (In.) | 0.762 |
| Inside Diameter (mm) | 19.35 |
| Material | Nylon 6 |
| Maximum Operating Temperature (°C) | 110 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°F) | 230 |
| Minimum Operating Temperature (°F) | -40 |
| Nominal Diameter (In.) | 0.75 |
| Nominal Diameter (mm) | 19.05 |
| Outer Diameter (In.) | 0.933 |
| Outer Diameter (mm) | 23.7 |
| Overall Length (ft.) | 2000 |
| Overall Length (m) | 609.6 |
| Standards Met | RoHS Compliant |
| Part Features | Provides protection for cables. Slitted for easier install onto a bundle of wires or a pre-assembled harness assembly |
Panduit - CLT75N-2M630 - Package Information
| UPC | 07498340654 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 22.5984 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - CLT75N-2M630 - Videos
| Video 1 | Click to View |
|---|
