Brand: Panduit
|
SKU:
10045287

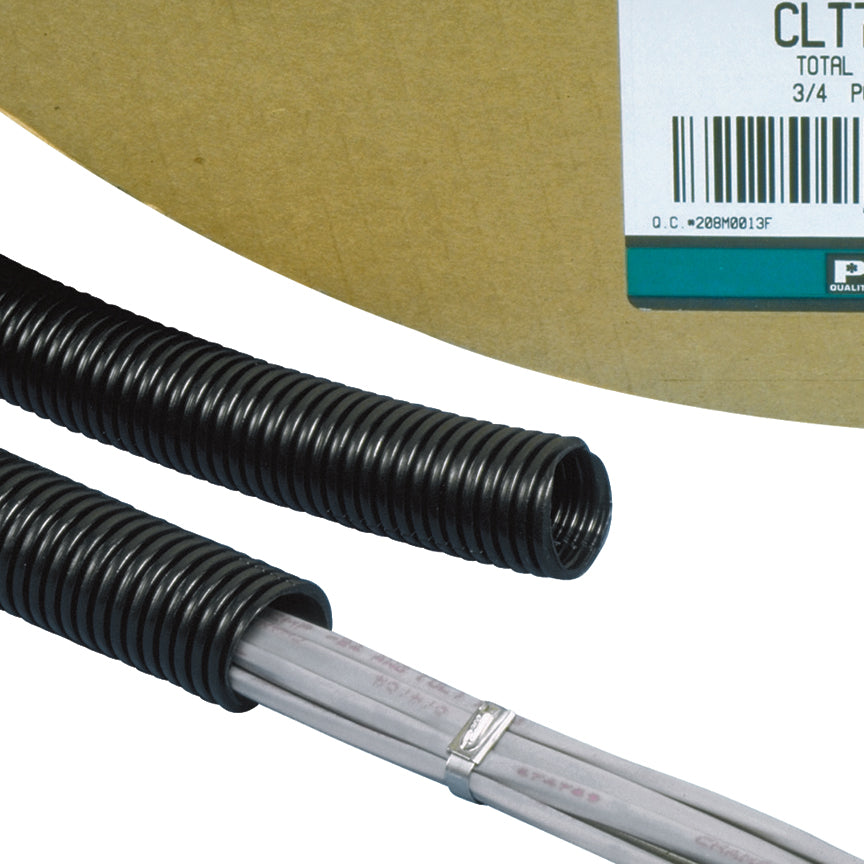

Panduit CLTS100N-C | Corrugated Loom Tubing | UPC - 07498362262
Regular price
$294.98
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CLTS100N-C | Corrugated Loom Tubing | UPC - 07498362262
Regular price
$294.98
Unit price
Description
Description
Panduit Corrugated Loom Tubing, Solid Wall, 0.92 in Inside Dia, 100 ft Length, 0.03 in Thickness, Heat Stabilized Nylon 6, Black
Features + Benefits
- Provides protection for cables
- Crush impact and abrasion-resistant, hold in place with push type cable ties adhesive or push type mounts
- Features a lengthwise slit which makes it easy to install onto a bundle of wires or a pre-assembled harness assembly
- Packaged on a reel for easy handling and dispensing of product
Panduit Panduit CLTS100N-C | Corrugated Loom Tubing | UPC - 07498362262 Key Specs
| Application | Provides Protection for Cables, Crush Impact and Abrasion Resistant, Hold in Place with Push Type Cable Ties Adhesive or Push Type Mounts. |
| Product Type | Corrugated Loom Tubing |
| Color | Black |
| Environment | Indoor |
| Flammability Rating | UL94-HB |
| Inside Diameter (In.) | 0.92 |
| Inside Diameter (mm) | 23.2 |
| Material | Nylon 6 |
| Resistance Properties | Crush Impact and Abrasion Resistant |
| Maximum Operating Temperature (°C) | 110 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°F) | 230 |
| Minimum Operating Temperature (°F) | -40 |
| Nominal Diameter (mm) | 25.4 |
| Outer Diameter (In.) | 1.09 |
| Outer Diameter (mm) | 27.7 |
| Standards Met | RoHS Compliant |
| Part Features | Provides protection for cables, Crush impact and abrasion resistant, Hold in place with push type cable ties adhesive or push type mounts |
Panduit Panduit CLTS100N-C | Corrugated Loom Tubing | UPC - 07498362262 Data Sheets
| Part Drawings | Corrugated Tubing: GB0222BD | Download and View |
| Technical References | Abrasion Protection Shelf Life | Download and View |
| Line Cards | Wire Abrasion Protection Line Card HSLC1-WW-ENG | Download and View |
Panduit Panduit CLTS100N-C | Corrugated Loom Tubing | UPC - 07498362262 Environmental Information
| Panduit's RoHS Statement | Download and View |
