Brand: Panduit
|
SKU:
CLTS150F-D3
Panduit CLTS150F-D3 | Clts150F-D3 Corrugated Loom Tubing
Regular price
$876.50
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CLTS150F-D3 | Clts150F-D3 Corrugated Loom Tubing
Regular price
$876.50
Unit price
Description
Description

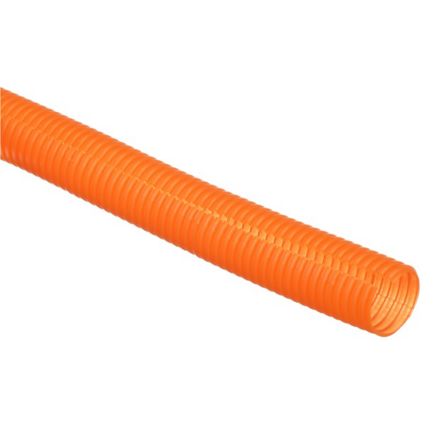

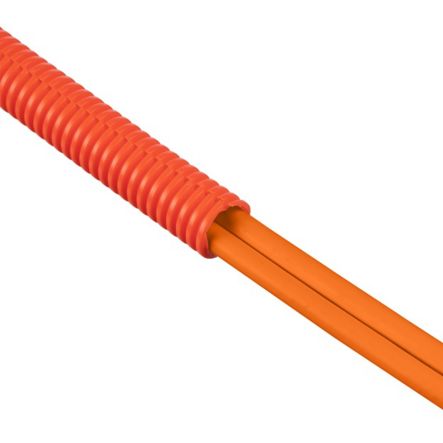

Panduit CLTS150F-D3 | Clts150F-D3 Corrugated Loom Tubing
The CLTS150F-D3 Corrugated Loom Solid Wall Tubing protects cables from impact and abrasion. Hold in place with cable ties and accessories. Suitable for indoor applications. UL94-HB flammability rating and a maximum temperature rating of 122°F (50°C). Polyethylene. Inside diameter 1.58" (40.0mm). Color Orange. 1 per package.
Specifications
Specifications
Panduit - CLTS150F-D3 - Product Categories
- Wire Routing, Management & Protection
- Corrugated Loom Tubing
Panduit - CLTS150F-D3 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CLTS150F-D3 |
| Item Description | Clts150F-D3 Corrugated Loom Tubing |
| Application | Provides Protection for Cables, Crush Impact and Abrasion Resistant, |
| Product Type | Corrugated Loom Tubing |
| Color | Orange |
| Environment | Indoor |
| Flammability Rating | UL94-HB |
| Inside Diameter (In.) | 1.484 |
| Inside Diameter (mm) | 37.69 |
| Material | Polyethylene |
| Resistance Properties | Crush Impact and Abrasion Resistant |
| Maximum Operating Temperature (°C) | 50 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°F) | -40 |
| Nominal Diameter (In.) | 1.5 |
| Nominal Diameter (mm) | 38.1 |
| Outer Diameter (In.) | 1.728 |
| Outer Diameter (mm) | 43.89 |
| Overall Length (ft.) | 500 |
| Overall Length (m) | 152.4 |
| Standards Met | RoHS Compliant |
| Part Features | Provides protection for cables, Crush impact and abrasion resistant, Hold in place with push type cable ties adhesive or push type mounts |
Panduit - CLTS150F-D3 - Package Information
| UPC | 07498362769 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 22.6489 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - CLTS150F-D3 - Videos
| Video 1 | Click to View |
|---|
