Panduit CLTS25N-10M | Corrugated Loom Tubing | UPC - 07498312441
Regular price
$2,088.79
Unit price
Description
Description

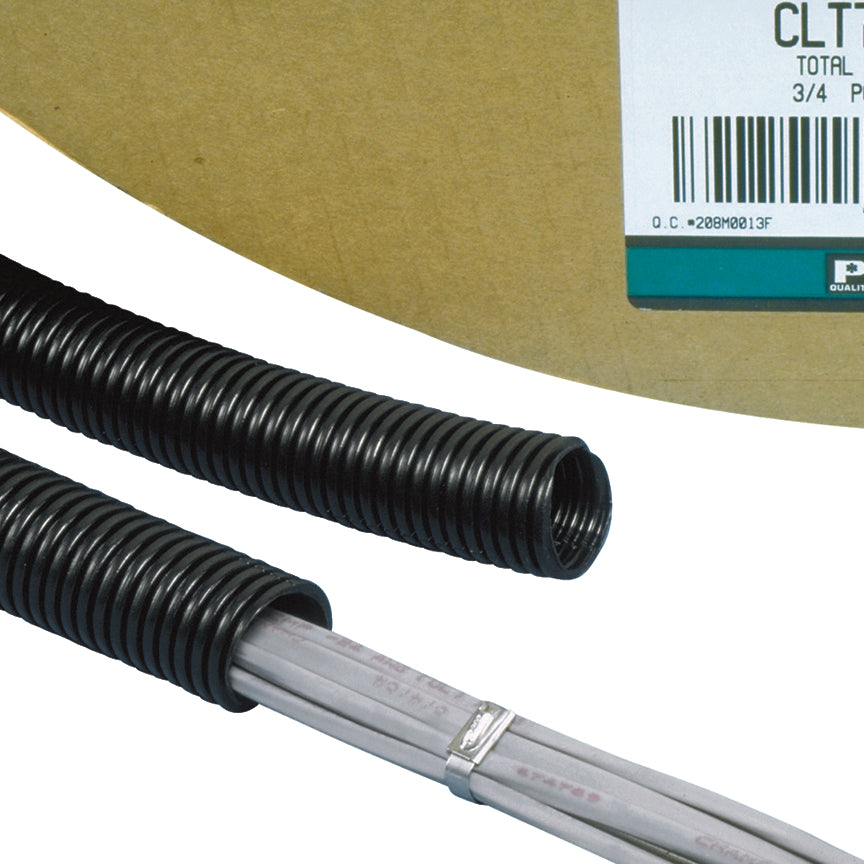

Corrugated loom tubing solid wall, .25" (6.4mm) x 10000', heat stabilized nylon 6, black.
Panduit Panduit CLTS25N-10M | Corrugated Loom Tubing | UPC - 07498312441 Key Specs
| Application | Provides Protection for Cables, Crush Impact and Abrasion Resistant, Hold in Place with Push Type Cable Ties Adhesive or Push Type Mounts. |
| Product Type | Corrugated Loom Tubing |
| Color | Black |
| Environment | Indoor |
| Flammability Rating | UL94-HB |
| Inside Diameter (In.) | 0.28 |
| Inside Diameter (mm) | 7.2 |
| Material | Nylon 6 |
| Resistance Properties | Crush Impact and Abrasion Resistant |
| Maximum Operating Temperature (°C) | 110 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°F) | 230 |
| Minimum Operating Temperature (°F) | -40 |
| Nominal Diameter (mm) | 6.35 |
| Outer Diameter (In.) | 0.4 |
| Outer Diameter (mm) | 10.1 |
| Standards Met | RoHS Compliant |
| Part Features | Provides protection for cables. Slitted for easier install onto a bundle of wires or a pre-assembled harness assembly |
Panduit Panduit CLTS25N-10M | Corrugated Loom Tubing | UPC - 07498312441 Data Sheets
| Part Drawings | Corrugated Tubing: GB0222BD | Download and View |
| Technical References | Abrasion Protection Shelf Life | Download and View |
| Line Cards | Wire Abrasion Protection Line Card HSLC1-WW-ENG | Download and View |
Panduit Panduit CLTS25N-10M | Corrugated Loom Tubing | UPC - 07498312441 Environmental Information
| Panduit's RoHS Statement | Download and View |
