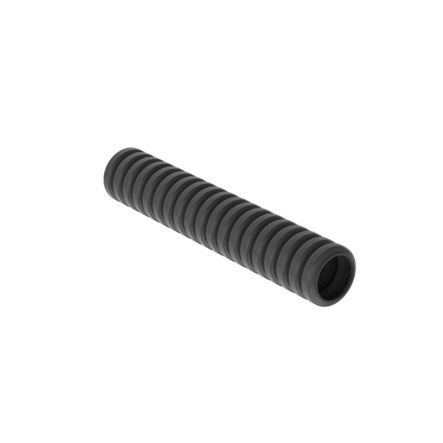

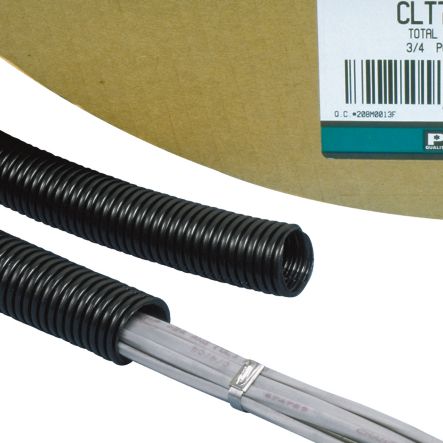

Panduit CLTS38F-C | CLTS38F-C Corrugated Loom Tubing
Regular price
$1.46
Unit price
Brand: Panduit
|
SKU:
CLTS38F-FT
Regular price
$1.46
Unit price
Description
Description
Panduit CLTS38F-C | CLTS38F-C Corrugated Loom Tubing
The CLTS38F-C Corrugated Loom Solid Wall Tubing protects cables from impact and abrasion. Hold in place with push-type cable ties, adhesive, or push-type mounts. Suitable for indoor applications. UL94-HB flammability rating and a maximum temperature rating of 122°F (50°C). Polyethylene. Inside diameter 0.39" (10.0mm). Color Black. 1 per package.
Panduit CLTS38F-C - TUBING - 3/8" SOLID CORRUGATED LOOM
Specifications
Specifications
Panduit - CLTS38F-C - Product Categories
- Wire Routing, Management & Protection
- Corrugated Loom Tubing
Panduit - CLTS38F-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CLTS38F-C |
| Item Description | CLTS38F-C Corrugated Loom Tubing |
| Application | Provides Protection for Cables, Crush Impact and Abrasion Resistant, |
| Product Type | Corrugated Loom Tubing |
| Color | Black |
| Environment | Indoor |
| Flammability Rating | UL94-HB |
| Inside Diameter (In.) | 0.421 |
| Inside Diameter (mm) | 10.69 |
| Material | Polyethylene |
| Resistance Properties | Crush Impact and Abrasion Resistant |
| Maximum Operating Temperature (°C) | 50 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°F) | -40 |
| Nominal Diameter (In.) | 0.375 |
| Nominal Diameter (mm) | 9.53 |
| Outer Diameter (In.) | 0.535 |
| Outer Diameter (mm) | 13.59 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Standards Met | RoHS Compliant |
| Part Features | Provides protection for cables, Crush impact and abrasion resistant, Hold in place with push type cable ties adhesive or push type mounts |
Panduit - CLTS38F-C - Package Information
| UPC | 07498362250 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.8359 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - CLTS38F-C - Videos
| Video 1 | Click to View |
|---|
