Brand: Panduit
|
SKU:
CLTS75F-C3
Panduit CLTS75F-C3 | CLTS75F-C3 Corrugated Loom Tubing
Regular price
$132.24
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CLTS75F-C3 | CLTS75F-C3 Corrugated Loom Tubing
Regular price
$132.24
Unit price
Description
Description
Panduit CLTS75F-C3 | CLTS75F-C3 Corrugated Loom Tubing

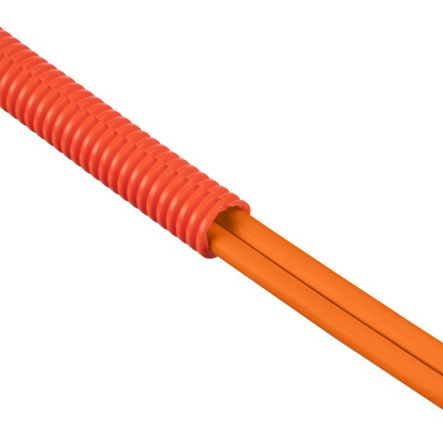

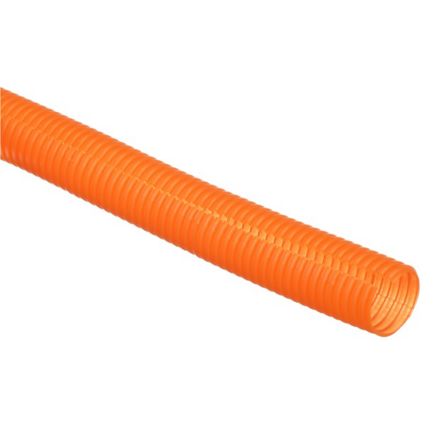

The CLTS75F-C3 Corrugated Loom Solid Wall Tubing protects cables from impact and abrasion. Hold in place with push-type cable ties, adhesive, or push-type mounts. Suitable for indoor applications. UL94-HB flammability rating and a maximum temperature rating of 122°F (50°C). Polyethylene. Inside diameter 0.77" (19.5mm). Color Orange. 1 per package.
Specifications
Specifications
Panduit - CLTS75F-C3 - Product Categories
- Wire Routing, Management & Protection
- Corrugated Loom Tubing
Panduit - CLTS75F-C3 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CLTS75F-C3 |
| Item Description | CLTS75F-C3 Corrugated Loom Tubing |
| Application | Provides Protection for Cables, Crush Impact and Abrasion Resistant, |
| Product Type | Corrugated Loom Tubing |
| Color | Orange |
| Environment | Indoor |
| Flammability Rating | UL94-HB |
| Inside Diameter (In.) | 0.762 |
| Inside Diameter (mm) | 19.35 |
| Material | Polyethylene |
| Resistance Properties | Crush Impact and Abrasion Resistant |
| Maximum Operating Temperature (°C) | 50 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°F) | -40 |
| Nominal Diameter (In.) | 0.75 |
| Nominal Diameter (mm) | 19.1 |
| Outer Diameter (In.) | 0.933 |
| Outer Diameter (mm) | 23.7 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Standards Met | RoHS Compliant |
| Part Features | Provides protection for cables, Crush impact and abrasion resistant, Hold in place with push type cable ties adhesive or push type mounts |
Panduit - CLTS75F-C3 - Package Information
| UPC | 07498362763 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 2.4268 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
