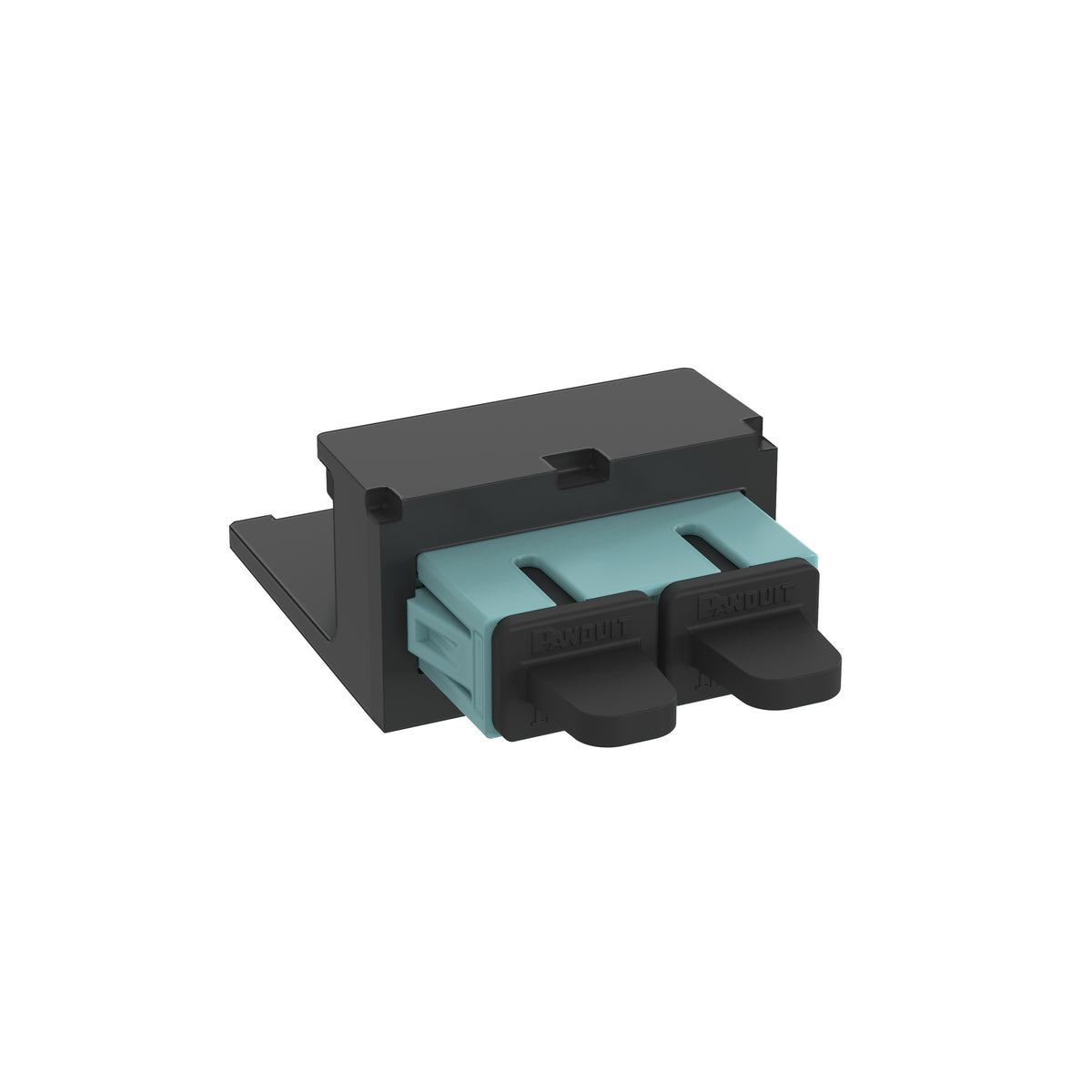

Panduit CMDAQSCZBL | Mini-Com Aqua SC Duplex, Black Module
Description
Description
Optimize your high-density network with our SC duplex fiber adapter module. This module supports simultaneous bidirectional data transmission, making it perfect for LAN, SAN, and public networks.
SC Duplex (Aqua) Adapter w/ Black Module, Zirconia, TIA/EIA-604 FOCIS-3 compliant adapters, Exceed TIA/EIA-568-B.3 requirements, Compatible with Mini-Com products for complete modularity, Improved protective cap fully surrounds split sleeve opening, Ch oice of phosphor bronze or zirconia ceramic split sleeves to fit specific network requirements; zirconia ceramic split sleeves are required for single-mode applications, Every adapter is laser marked with Q.C. number to assure 100 percent traceability, Mini-Com SC Simplex Adapter Modules are commonly used with Mini-Com Patch Panels, Mini-Com SC Duplex Adapter Modules are commonly used with Mini-Com Surface Mount Boxes, SC simplex and duplex adapters are also available separately, and in patch panels or fiber adapter panels to provide a complete SC system solution.
Panduit 10Gig Fiber Optic Adapter Module, SC Duplex Connector, 1 Port, OM3/OM4 Multimode Fiber, For Use With: Mini-Com Modular Patch Panels, Faceplates, Surface Mount Boxes, Zirconia Ceramic, Aqua/Black
Panduit - CMDAQSCZBL - Features
- Improved protective cap fully surrounds split sleeve opening
- Adapter housing colors follow TIA/EIA-568-C.3 suggested color identification scheme
- Every adapter is laser marked with QC number to assure 100% traceability
- TIA/EIA-604 FOCIS-3 compliant adapters
- Exceed TIA/EIA-568-B.3 requirements
- Compatible with Mini-Com(TM) products for complete modularity
- Improved protective cap fully surrounds split sleeve opening
- Choice of phosphor bronze or zirconia ceramic split sleeves to fit specific network requirements; zirconia ceramic split sleeves are required for single-mode applications
- Every adapter is laser marked with Q.C. number to assure 100% traceability
- Mini-Com(TM) SC Simplex Adapter Modules are commonly used with Mini-Com(TM) Patch Panels
- Mini-Com(TM) SC Duplex Adapter Modules are commonly used with Mini-Com(TM) Surface Mount Boxes
- SC simplex and duplex adapters are also available separately, and in patch panels or fiber adapter panels to provide a complete SC system solution
Specifications
Specifications
Panduit - CMDAQSCZBL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CMDAQSCZBL |
| Color | Black |
| Fiber Type | Om3/Om4 Multimode |
| Loaded | Yes |
| Number Of Ports | 2 |
| Termination | Sc |
| UNSPSC Code | 43223331 |
| Sub Brand | Mini-Com |
| Body Style | Duplex |
| Fiber Type | OM3 |
| Split Sleeve Material | Zirconia Ceramic |
| Overall Length (In.) | 2.21 |
| Overall Length (mm) | 56.1 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°C) | 0 |
| Minimum Installation Temperature (°F) | 32 |
| Standards Met | TIA/EIA-604 FOCIS-3 compliant, Exceed TIA/EIA-568-B.3. RoHS compliant |
| Product Type | SC Adapter Module |
| Application | Mini-Com Modules, Patch Panels, Faceplates and Surface Mount Boxes for a complete SC system solution. |
| Adapter Color | Aqua |
| Module Color | Black |
| Connection Type | SC |
| Part Features | Integrated panel retention clip, Improved adapter protective cap design, Choice of phosphor bronze or zirconia ceramic split sleeves |
| UPC | 07498337616 |
Panduit - CMDAQSCZBL - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.69.8000 |
