Panduit CMDBUSCZBL | Mini-Com Blue SC Duplex, Singlemode Duplex, Bl...
Description
Description

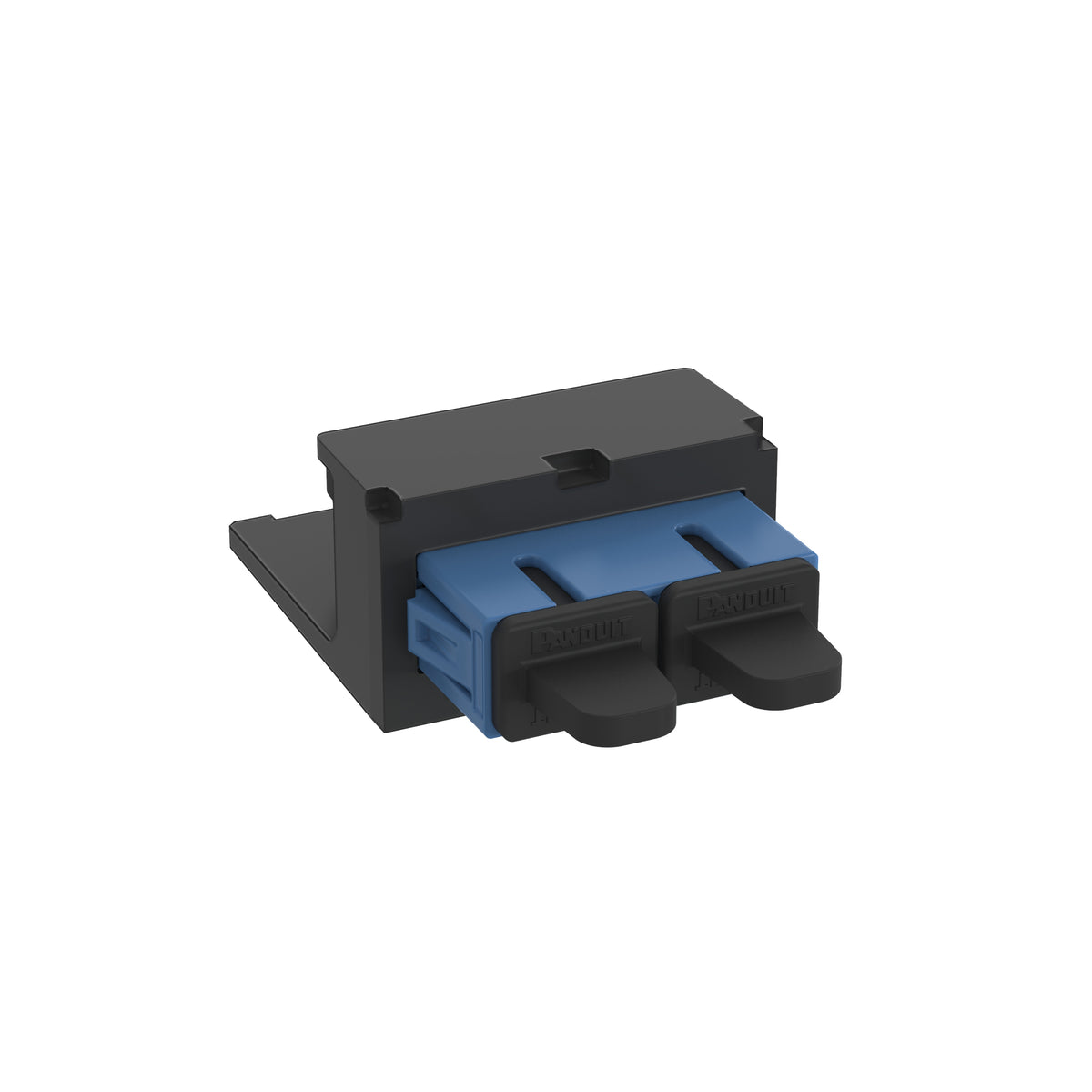

Optimize your high-density network with our SC duplex fiber adapter module. This module supports simultaneous bidirectional data transmission, making it perfect for LAN, SAN, and public networks.
The SC duplex fiber adapter module is OS1/OS2. It is blue with a black module and has zirconia split sleeves.
SC fiber optic adapters with integrated panel retention clips are TIA/EIA-604 FOCIS-3 compliant. Each SC simplex adapter shall connect one SC connector pair in one Mini-Com space. Each SC duplex adapter shall connect two SC connector pairs in two Mini-Com spaces. SC adapters and adapter Mini-Com shall include phosphor bronze split sleeves for multi-mode applications or zirconia ceramic split sleeves for single mode applications.
Panduit Mini-Com Fiber Optic Adapter Module, SC Duplex Connector, 1 Ports, Single Mode Fiber, For Use With: Mini-Com Modular Patch Panels, Faceplates, Surface Mount Boxes, Black/Blue
Panduit - CMDBUSCZBL - Features
- Integrated panel retention clips no metal clips to become bent, damaged or lost, clips automatically adjust for FOCIS-3 compliant panel thickness variations for improved mounting
- High glass transition temperature latch material maintains latch integrity/geometry in high temperature environments for improved reliability
- Improved adapter protective cap design maximum protection from contamination, protective cap fully surrounds split sleeve opening
- Short flange design for improved modularity and higher density usage
- QC number and split sleeve material laser marked on every adapter assures 100% traceability, quick and easy identification of split sleeve material
Specifications
Specifications
Panduit - CMDBUSCZBL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CMDBUSCZBL |
| Connector Type | Sc |
| Type | Coupler / Adapter |
| UNSPSC Code | 26121600 |
| Sub Brand | Mini-Com |
| Body Style | Duplex |
| Fiber Type | OS1/OS2 |
| Split Sleeve Material | Zirconia Ceramic |
| Overall Length (In.) | 1.08 |
| Overall Length (mm) | 27.4 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°C) | 0 |
| Minimum Installation Temperature (°F) | 32 |
| Standards Met | RoHS Compliant |
| Product Type | SC Adapter Module |
| Application | Mini-Com Modules, Patch Panels, Faceplates and Surface Mount Boxes for a complete SC system solution. |
| Adapter Color | Blue |
| Module Color | Black |
| Connection Type | SC |
| Part Features | Integrated panel retention clip, Improved adapter protective cap design, Choice of phosphor bronze or zirconia ceramic split sleeves |
| UPC | 07498384515 |
Panduit - CMDBUSCZBL - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
