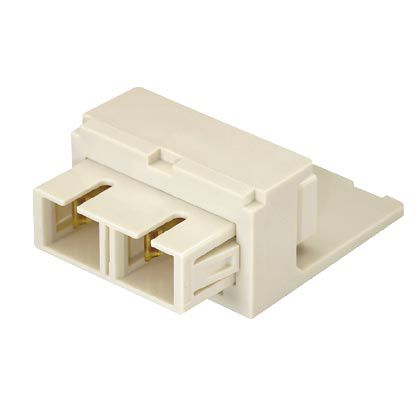

Panduit CMDBUSCZEW | SC Adapter Module
Description
Description
Module supplied with one SC duplex fiber optic adapter with zirconia ceramic split sleeves.
SC fiber optic adapters with integrated panel retention clips are TIA/EIA-604 FOCIS-3 compliant. Each SC simplex adapter shall connect one SC connector pair in one Mini-Com space. Each SC duplex adapter shall connect two SC connector pairs in two Mini-Com spaces. SC adapters and adapter Mini-Com shall include phosphor bronze split sleeves for multi-mode applications or zirconia ceramic split sleeves for single mode applications.
Panduit Mini-Com Fiber Optic Adapter Module, SC Duplex Connector, 1 Ports, Single Mode Fiber, For Use With: Mini-Com Modular Patch Panels, Faceplates, Surface Mount Boxes, Blue/European White
Panduit - CMDBUSCZEW - Features
- Striped Pan-Ty cable ties in 25 color combinations match the universally accepted even count color code
- Integrated panel retention clips no metal clips to become bent, damaged or lost, clips automatically adjust for FOCIS-3 compliant panel thickness variations for improved mounting
- High glass transition temperature latch material maintains latch integrity/geometry in high temperature environments for improved reliability
- Improved adapter protective cap design maximum protection from contamination; protective cap fully surrounds split sleeve opening
- Short flange design improved modularity and higher density usage
- Q.C. number and split sleeve material laser marked on every adapter assures 100% traceability, quick and easy identification of split sleeve material
Specifications
Specifications
Panduit - CMDBUSCZEW - Specifications
| Connector Type | Sc |
|---|---|
| Type | Coupler / Adapter |
| UNSPSC Code | 26121600 |
| Sub Brand | Mini-Com |
| Body Style | Duplex |
| Fiber Type | OS1/OS2 |
| Material | Zirconia Ceramic |
| Overall Length (In.) | 1.08 |
| Overall Length (mm) | 27.4 |
| Standards Met | RoHS Compliant |
| Product Type | SC Adapter Module |
| Application | Mini-Com Modules, Patch Panels, Faceplates and Surface Mount Boxes for a complete SC system solution. |
| Color | Blue |
| Module Color | European White |
| Connection Type | SC |
| Part Features | Integrated panel retention clip, Improved adapter protective cap design, Choice of phosphor bronze or zirconia ceramic split sleeves |
| UPC | 07498385519 |
Panduit - CMDBUSCZEW - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
