Panduit CMDEISCZBL | Mini-Com Electric Ivory SC, Multimode Duplex, ...
Regular price
$49.60
Unit price
Brand: Panduit
|
SKU:
680460
Regular price
$49.60
Unit price
Description
Description

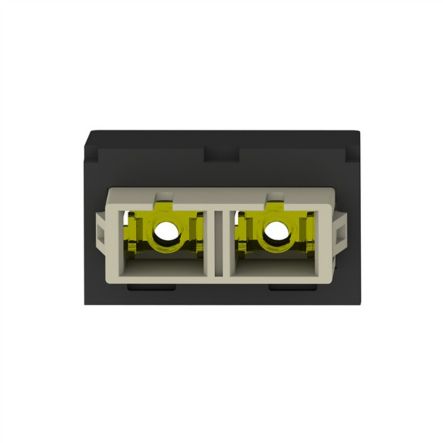

Panduit CMDEISCZBL | Mini-Com Electric Ivory SC, Multimode Duplex, Black Module
The Mini-Com Multimode Duplex SC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. It connects two SC connector pairs in one module space and features an electric ivory adapter along with a black module and has zirconia split sleeves.
Panduit CMDEISCZBL | ADAPTER FIBER | SC DUPL (EI) ADAPTER (BL)
Specifications
Specifications
Panduit - CMDEISCZBL - Product Categories
- Fiber Optic Systems
- Fiber Optic Adapters
Panduit - CMDEISCZBL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CMDEISCZBL |
| Item Description | Mini-Com Electric Ivory SC, Multimode Duplex, Black Module |
| Sub Brand | Mini-Com |
| Body Style | Duplex |
| Fiber Type | OM1 |
| Material | Zirconia Ceramic |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°C) | 0 |
| Minimum Installation Temperature (°F) | 32 |
| Standards Met | RoHS Compliant; exceeds TIA/EIA-568-B.3 requirements |
| Product Type | SC Adapter Module |
| Application | Provides a rugged solution for LANs, publicnetworks, storage area networks and fiber-to the-deskapplications. |
| Color | Electric Ivory |
| Module Color | Black |
| Connection Type | SC-Duplex |
| Part Features | Integrated panel retention clip, Improved adapter protective cap design, Choice of phosphor bronze or zirconia ceramic split sleeves |
Panduit - CMDEISCZBL - Package Information
| UPC | 07498384523 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0038 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.0378 |
