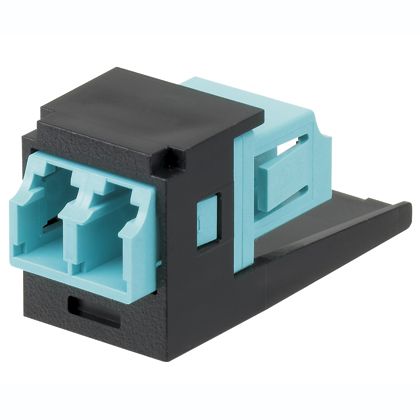

Panduit CMDSAQLCZBL | Mini-Com Aqua LC Duplex, Black Module
Description
Description
Double the port density with our LC duplex fiber adapter module. Ideal for high-density connections for LAN, SAN, fiber-to-the-desk applications in patch panels.
The Mini-Com Multimode Duplex LC Adapter is a small form factor (SFF) adapter with integrated panel retention clips and are TIA/EIA-605 FOCIS-10 compatible. The CMDSAQLCZBL connects two LC connector pairs in one module space. The CMDSAQLCBL features an aqua fiber adapter along with a black module.
Panduit 10Gig Fiber Optic Adapter Module, LC Duplex Connector, 2 Ports, Surface Mounting, OM3/OM4 Multimode Fiber, For Use With: Mini-Com Modular Patch Panels, Faceplates, Surface Mount Boxes, Zirconia Ceramic, Aqua/Black
Panduit - CMDSAQLCZBL - Features
- Provide a FOCIS-10 senior adapter interface at each end
- Accept FOCIS-10 compatible senior LC connectors
- Every adapter is laser marked with Q.C. number to assure 100%t traceability
- TIA/EIA-604 FOCIS-10 compatible adapters
- Exceed TIA/EIA-568-B.3 requirements
- Small form factor (SFF) duplex adapter design fits into single module space
- Compatible with Mini-Com(TM) products for complete modularity
- Provide a FOCIS-10 senior adapter interface at each end
- Accept FOCIS-10 compatible senior LC connectors
- Choice of phosphor bronze or zirconia ceramic split sleeves to fit specific network requirements; zirconia ceramic split sleeves are recommended for OM3 multimode and OS1/OS2 single-mode applications
- Every adapter is laser marked with Q.C. number to assure 100% traceability
- LC simplex and duplex adapters are also available separately, and in patch panels or fiber adapter panels to provide a complete LC system solution
Specifications
Specifications
Panduit - CMDSAQLCZBL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CMDSAQLCZBL |
| Color | Black |
| Fiber Type | Om3/Om4 Multimode |
| Loaded | Yes |
| Number Of Ports | 2 |
| Termination | Lc |
| UNSPSC Code | 43223331 |
| Sub Brand | Mini-Com |
| Body Style | Duplex |
| Split Sleeve Material | Zirconia Ceramic |
| Overall Length (In.) | 1.83 |
| Overall Length (mm) | 46.5 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°C) | 0 |
| Minimum Installation Temperature (°F) | 32 |
| Standards Met | RoHS Compliant; exceeds TIA/EIA-568-B.3 requirements |
| Product Type | LC Adapter Module |
| Application | Intelligent lighting, security, safety systems |
| Adapter Color | Aqua |
| Module Color | Black |
| Connection Type | LC Duplex |
| UPC | 07498353999 |
Panduit - CMDSAQLCZBL - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.70.0000 |
