Panduit CMDSLCZBU | Mini-Com Blue LC Duplex, Singlemode Duplex, Blu...
Regular price
$36.55
Unit price
Brand: Panduit
|
SKU:
268845
Regular price
$36.55
Unit price
Description
Description

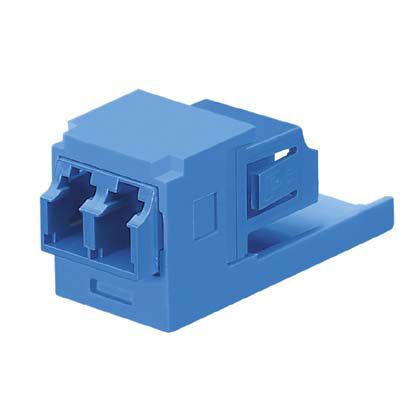

Panduit CMDSLCZBU | Mini-Com Blue LC Duplex, Singlemode Duplex, Blue Module
Double the port density with our LC duplex fiber adapter module. Ideal for high-density connections for LAN, SAN, fiber-to-the-desk applications in patch panels.
Panduit Mini-Com Fiber Optic Adapter Module, LC Duplex Connector, Panel Mounting, Single-Mode Fiber, For Use With: Mini-Com Modular Patch Panels, Faceplates, Surface Mount Boxes, Zirconia Ceramic, Blue
Panduit - CMDSLCZBU - Features
- Provide a FOCIS-10 senior adapter interface at each end
- Accept FOCIS-10 compatible senior LC connectors
- Every adapter is laser marked with Q.C. number to assure 100%t traceability
Specifications
Specifications
Panduit - CMDSLCZBU - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CMDSLCZBU |
| Sub Brand | Mini-Com |
| Body Style | Duplex |
| Split Sleeve Material | Zirconia Ceramic |
| Overall Length (In.) | 1.83 |
| Overall Length (mm) | 46.5 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°C) | 0 |
| Minimum Installation Temperature (°F) | 32 |
| Standards Met | RoHS Compliant; exceeds TIA/EIA-568-B.3 requirements |
| Product Type | LC Adapter Module |
| Application | Provides a rugged solution for LANs, publicnetworks, storage area networks and fiber-to the-deskapplications. |
| Adapter Color | Blue |
| Module Color | Blue |
| Connection Type | LC Duplex |
| UPC | 07498399208 |
Panduit - CMDSLCZBU - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.69.8000 |
