Panduit CMDSLCZEI | Mini-Com Blue LC Duplex, Singlemode, Electric I...
Description
Description
Double the port density with our LC duplex fiber adapter module. Ideal for high-density connections for LAN, SAN, fiber-to-the-desk applications in patch panels.

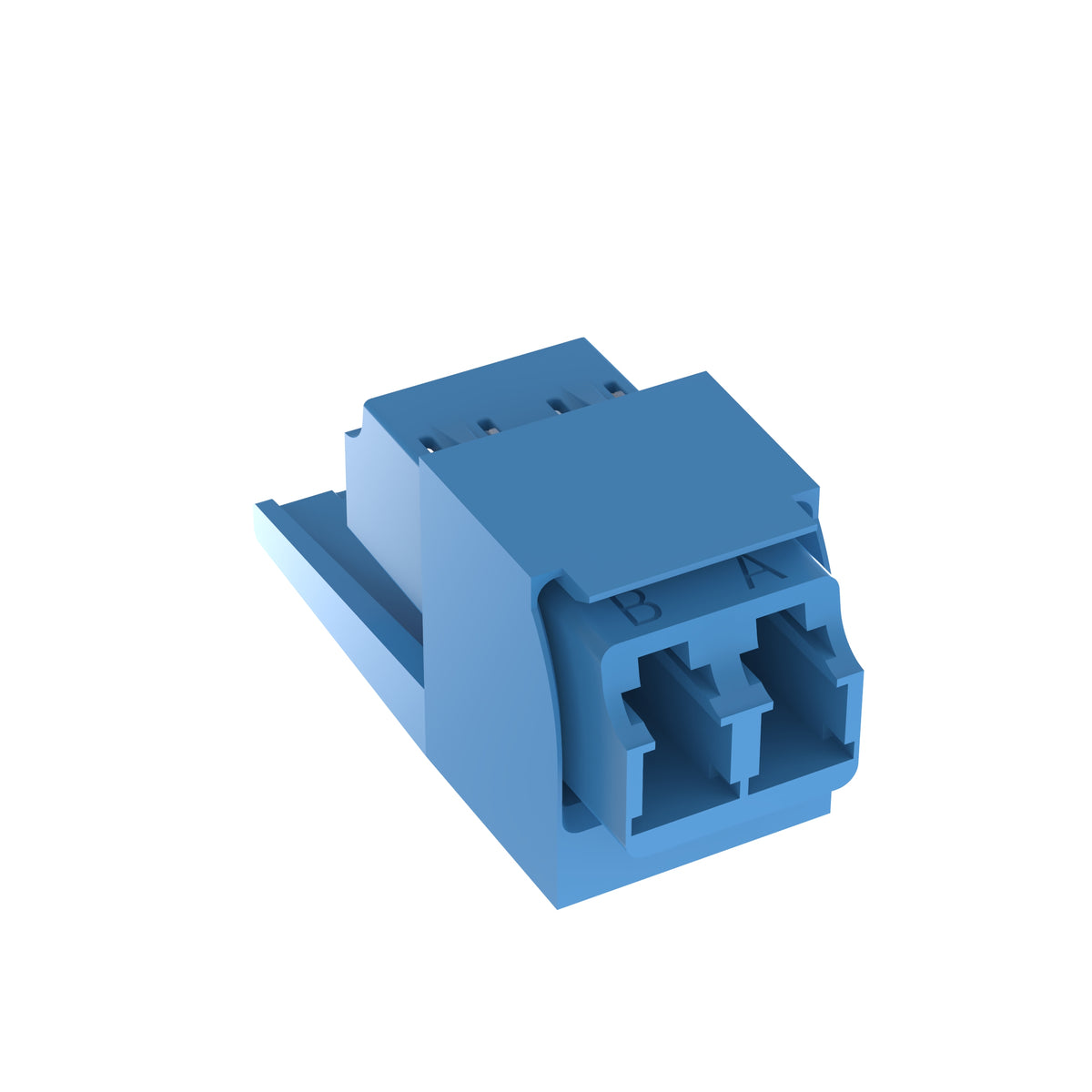

This single-mode Duplex LC Adapter Module is blue with an electric ivory module made with zirconia ceramic.
LC small form factor (SFF) fiber optic adapters with integrated panel retention clips are TIA/EIA-604 FOCIS-10 compatible. Each LC simplex adapter shall connect one LC connector pair in one Mini-Com space. Each LC duplex adapter shall connect two LC connector pairs in one Mini-Com space.
Panduit Mini-Com Fiber Optic Adapter, Duplex LC Connector, 2 Ports, Single Mode Fiber, For Use With: Mini-Com Modular Patch Panels, Faceplates, Surface Mount Boxes, Blue/Electric Ivory
Panduit - CMDSLCZEI - Features
- Integrated panel retention clips no metal clips to become bent, damaged or lost, simplex adapter clips automatically adjust for FOCIS-10 compliant panel thickness variations for improved mounting
- Superior weld strength provides a more durable product under stress for improved reliability and increased life
- LC duplex adapters fit SC simplex adapter openings doubles the density in the same rack space, substitute simplex SCs with duplex LCs to increase connectivity 100%
- Short flange design improved modularity and higher density usage
Specifications
Specifications
Panduit - CMDSLCZEI - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CMDSLCZEI |
| Connector Type | Lc |
| Type | Coupler / Adapter |
| UNSPSC Code | 26121600 |
| Sub Brand | Mini-Com |
| Body Style | Duplex |
| Split Sleeve Material | Zirconia Ceramic |
| Overall Length (In.) | 1.83 |
| Overall Length (mm) | 46.5 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°C) | 0 |
| Minimum Installation Temperature (°F) | 32 |
| Standards Met | RoHS Compliant; exceeds TIA/EIA-568-B.3 requirements |
| Product Type | LC Adapter Module |
| Application | Provides a rugged solution for LANs, publicnetworks, storage area networks and fiber-to the-deskapplications. |
| Adapter Color | Blue |
| Module Color | Electric Ivory |
| Connection Type | LC Duplex |
| UPC | 07498399207 |
Panduit - CMDSLCZEI - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
