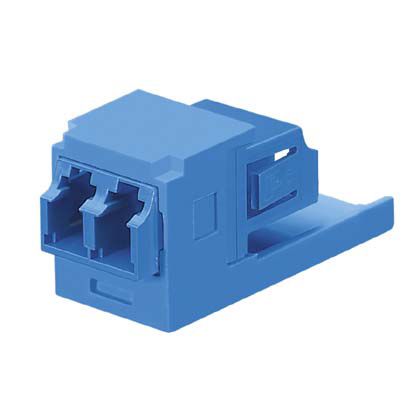

Panduit CMDSLCZIG | Singlemode Duplex LC Adapter Module
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CMDSLCZIG | Singlemode Duplex LC Adapter Module
Description
Description
Duplex LC Fiber Adapter (BU) With Module (IG) Zirc
LC small form factor (SFF) fiber optic adapters with integrated panel retention clips are TIA/EIA-604 FOCIS-10 compatible. Each LC simplex adapter shall connect one LC connector pair in one Mini-Com space. Each LC duplex adapter shall connect two LC connector pairs in one Mini-Com space.
Panduit Mini-Com Fiber Optic Adapter, Duplex LC Connector, 2 Ports, Single Mode Fiber, For Use With: Mini-Com Modular Patch Panels, Faceplates, Surface Mount Boxes, Blue/International Gray
Panduit - CMDSLCZIG - Features
- 90 deg bent lug on grounding strip side to straight lug on equipment
- Tin plated copper lug
- Engineered to comply with us and international grounding requirements
- No color code
- Integrated panel retention clips no metal clips to become bent, damaged or lost, simplex adapter clips automatically adjust for FOCIS-10 compliant panel thickness variations for improved mounting
- Superior weld strength provides a more durable product under stress for improved reliability and increased life
- LC duplex adapters fit SC simplex adapter openings doubles the density in the same rack space, substitute simplex SCs with duplex LCs to increase connectivity 100%
- Short flange design improved modularity and higher density usage
Specifications
Specifications
Panduit - CMDSLCZIG - Specifications
| Connector Type | Lc |
|---|---|
| Type | Coupler / Adapter |
| UNSPSC Code | 26121600 |
| Sub Brand | Mini-Com |
| Body Style | Duplex |
| Fiber Type | OS1/OS2 |
| Material | Zirconia Ceramic |
| Overall Length (In.) | 1.83 |
| Overall Length (mm) | 46.5 |
| Standards Met | RoHS Compliant; exceedsTIA/EIA-568-B.3 requirements |
| Product Type | Singlemode Duplex LC Adapter Module |
| Application | Provides a rugged solution for LANs, publicnetworks, storage area networks and fiber-to the-deskapplications. |
| Color | Blue |
| Module Color | International Gray |
| Connection Type | LC-Duplex |
| UPC | 07498399213 |
Panduit - CMDSLCZIG - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
