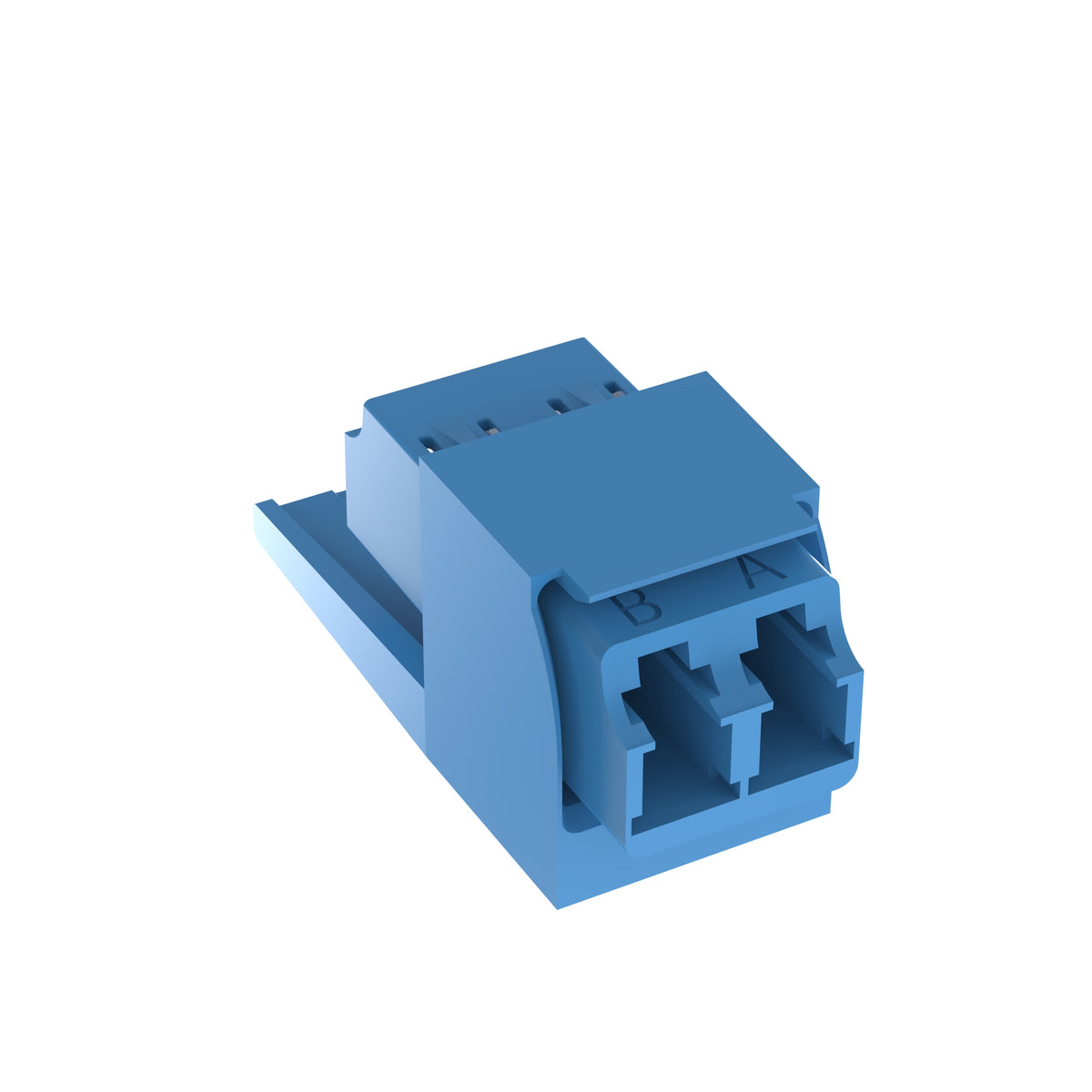

Panduit CMDSLCZWH | Singlemode Duplex LC Adapter Module
Description
Description
The LC duplex fiber adapter module is OS1/OS2. The adapter is blue with a white module and has zirconia split sleeves.
LC small form factor (SFF) fiber optic adapters with integrated panel retention clips are TIA/EIA-604 FOCIS-10 compatible. Each LC simplex adapter shall connect one LC connector pair in one Mini-Com space. Each LC duplex adapter shall connect two LC connector pairs in one Mini-Com space.
Panduit Mini-Com Fiber Optic Adapter, Duplex LC Connector, 2 Ports, Single Mode Fiber, For Use With: Mini-Com Module, Patch Panel, Faceplate and Surface Mount Box, Blue/White
Panduit - CMDSLCZWH - Features
- Assures flexibility and ease of network deployment and moves, adds and changes
- Easy identification of fiber type via adapter colors, visually compatible with patch cords and connectivity that also follows the color identification scheme
- Integrated panel retention clips no metal clips to become bent, damaged or lost, simplex adapter clips automatically adjust for FOCIS-10 compliant panel thickness variations for improved mounting
- Superior weld strength provides a more durable product under stress for improved reliability and increased life
- LC duplex adapters fit SC simplex adapter openings doubles the density in the same rack space, substitute simplex SCs with duplex LCs to increase connectivity 100%
- Short flange design for improved modularity and higher density usage
Specifications
Specifications
Panduit - CMDSLCZWH - Specifications
| Connector Type | Lc |
|---|---|
| Type | Coupler / Adapter |
| UNSPSC Code | 26121600 |
| Sub Brand | Mini-Com |
| Body Style | Duplex |
| Material | Zirconia Ceramic |
| Overall Length (In.) | 1.83 |
| Overall Length (mm) | 46.5 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°C) | 0 |
| Minimum Installation Temperature (°F) | 32 |
| Standards Met | RoHS Compliant; exceeds TIA/EIA-568-B.3 requirements |
| Product Type | Singlemode Duplex LC Adapter Module |
| Application | Provides a rugged solution for LANs, publicnetworks, storage area networks and fiber-to the-deskapplications. |
| Color | Blue |
| Module Color | White |
| Connection Type | LC-Duplex |
| UPC | 07498399209 |
Panduit - CMDSLCZWH - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
